10.3.1.7 CHAMFERING ALONG THE FENCE
(fs_10-3-1-7_0.0)
and bridge-type protection
NOTE-INFORMATION:
adjust the bridge guard as described in the previous sections.
- Rest the piece with the right hand against the slanting fence. Set the piece and the guard: see (1 fig. 10.3-1-
7).
- Let the piece feed along the fence towards the outlet table by keeping the hand with clenched fist, push the
piece forwards with the clenched right fist (2 fig. 10.3-1-7).

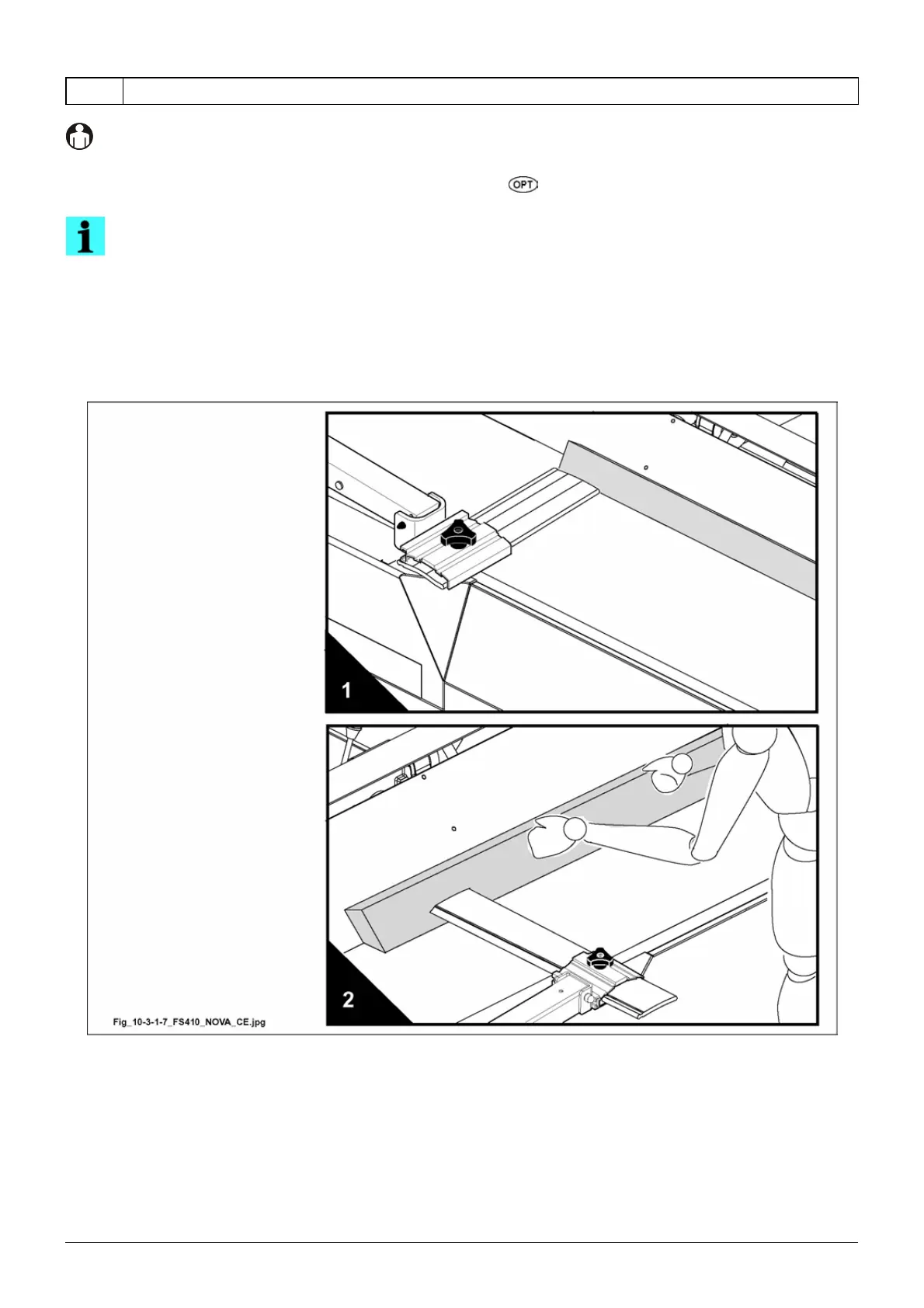

Fig. 10.3-1-7
