9 - THICKNESSING USE AND ADJUSTING
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 9 Pag. 7/12
9.5 MANUAL ADJUSTING OF THICKNESSING TABLE
(fs_9-5-0.0)
DANGER-WARNING
Before lifting the thicknessing table make sure that there are no wood residures on the table, as in
that case the system, which control the feed and the pressure on the workpiece, can not operate
and causes dangerous conditions.
Always reach the working height with table motion upwards to take up slack bewteen lead screws and
lead nuts.
Adjust the thicknessing tables to obtain the required stock removal. Proceed as follows:
- loosen the knob (H fig. 9.5);
- rotate handwheel (V fig. 9.5) referring to index (I fig. 9.5) or numeric indicator (L fig. 9.5)
;
- tighten the knob (H fig. 9.5).
If the indicator (L fig. 9.5-1) gives an imprecise indication, restore adjustments as follows.
FORBIDDEN:
it is forbidden to move the table when the machine is running.

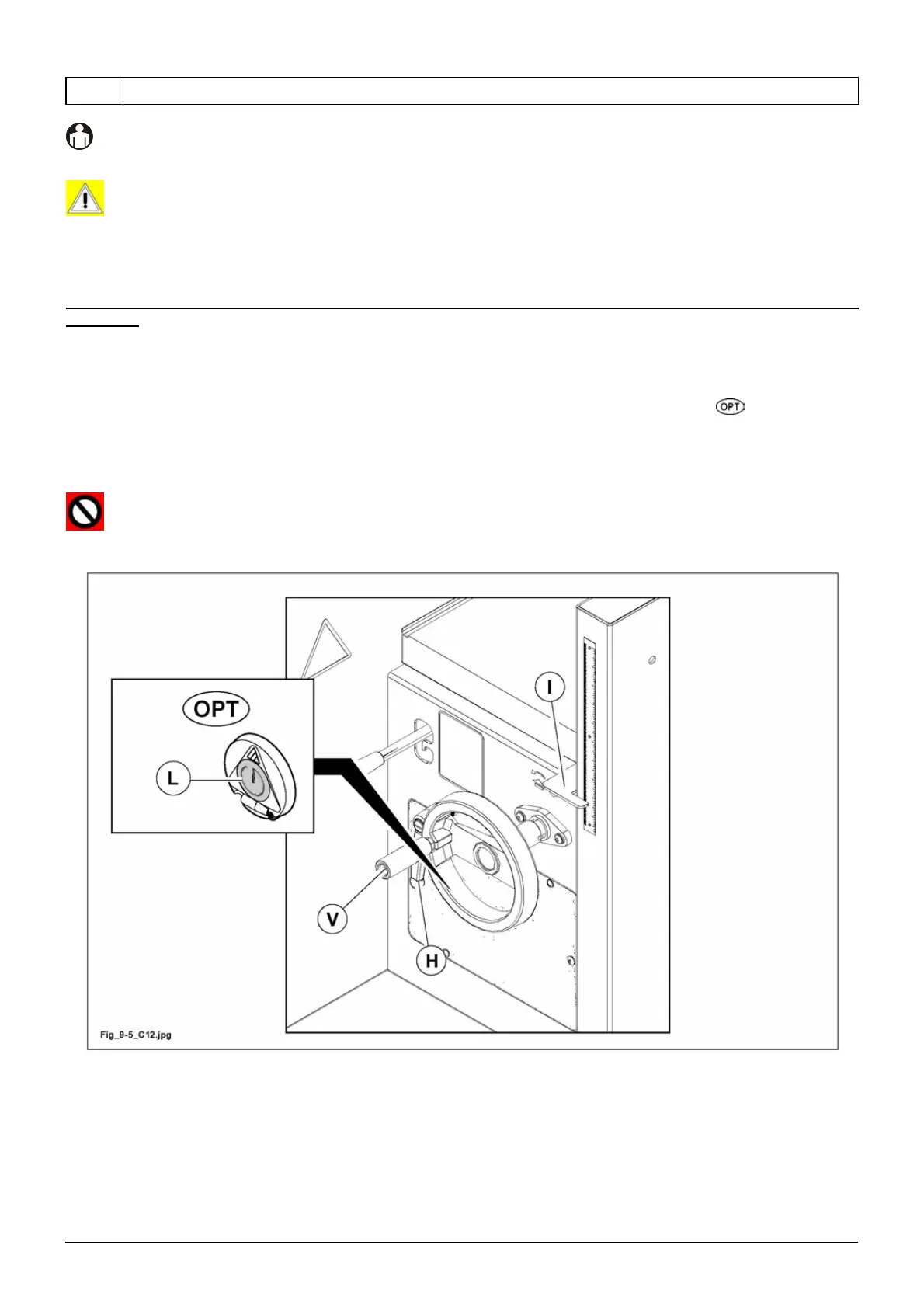

Fig. 9.5
