6 - SAW UNIT USE AND ADJUSTMENT
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 6 Pag. 11/11
6.8 GUARD ADJUSTING
(hg_6-8_ce_0.0)
- Clamp handle (E fig. 6.8) for locking guard (D fig. 6.8) in the desired position.
- By means of handle (F fig. 6.8) adjust the guard height according to the thickness of the piece to be cut (the
distance between guard and piece shall be 2÷3 mm). Such position will be kept.
- The guard is made of such material so that in case of contact with the suction hood, the saw blade is not
damaged.
FORBIDDEN:
with protective hood fixed to the riving knife, it's strictly forbidden to carry out not-through cuts.

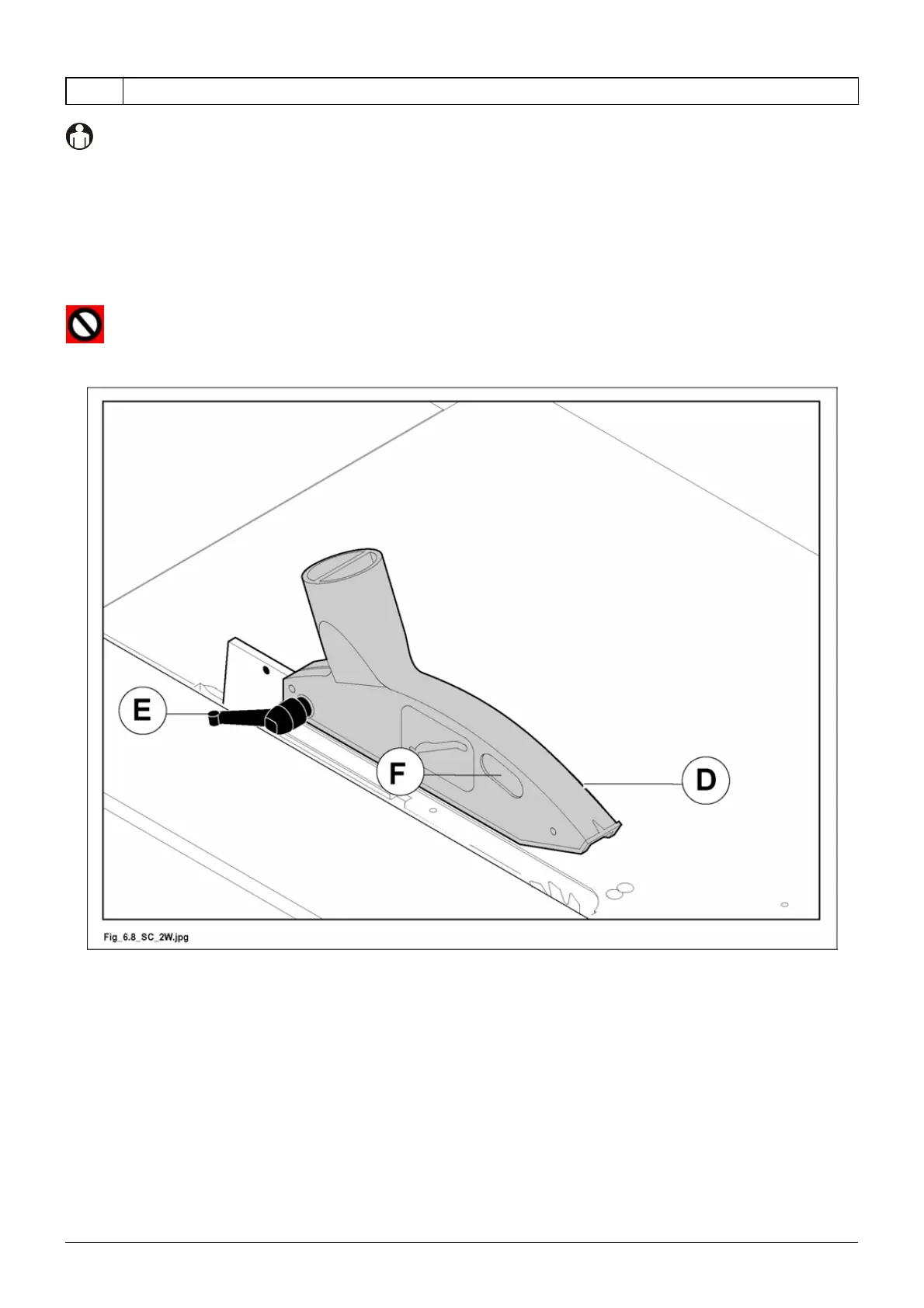

Fig. 6.8
