4.3.46 GUARD FITTING
(cu_4-3-46_0.0)
NOTE-INFORMATION:
the protections must always be mounted and be positioned in such as way as to completely cover
the tools.
Boomerang-type protection
For fitting the guard again:
1) fit the protection (P fig. 4.3-46) into place as shown in the picture.
2) Screw the retaining screw (Z fig. 4.3-46).
Bridge-type protection
For transport reasons bridge (A fig. 4.3-46) is demounted.
For fitting the bridge again:
1) fit the protection (A fig. 4.3-46) into place as shown in the picture.
2) Screw the 2 retaining screws through the holes (B fig. 4.3-46).

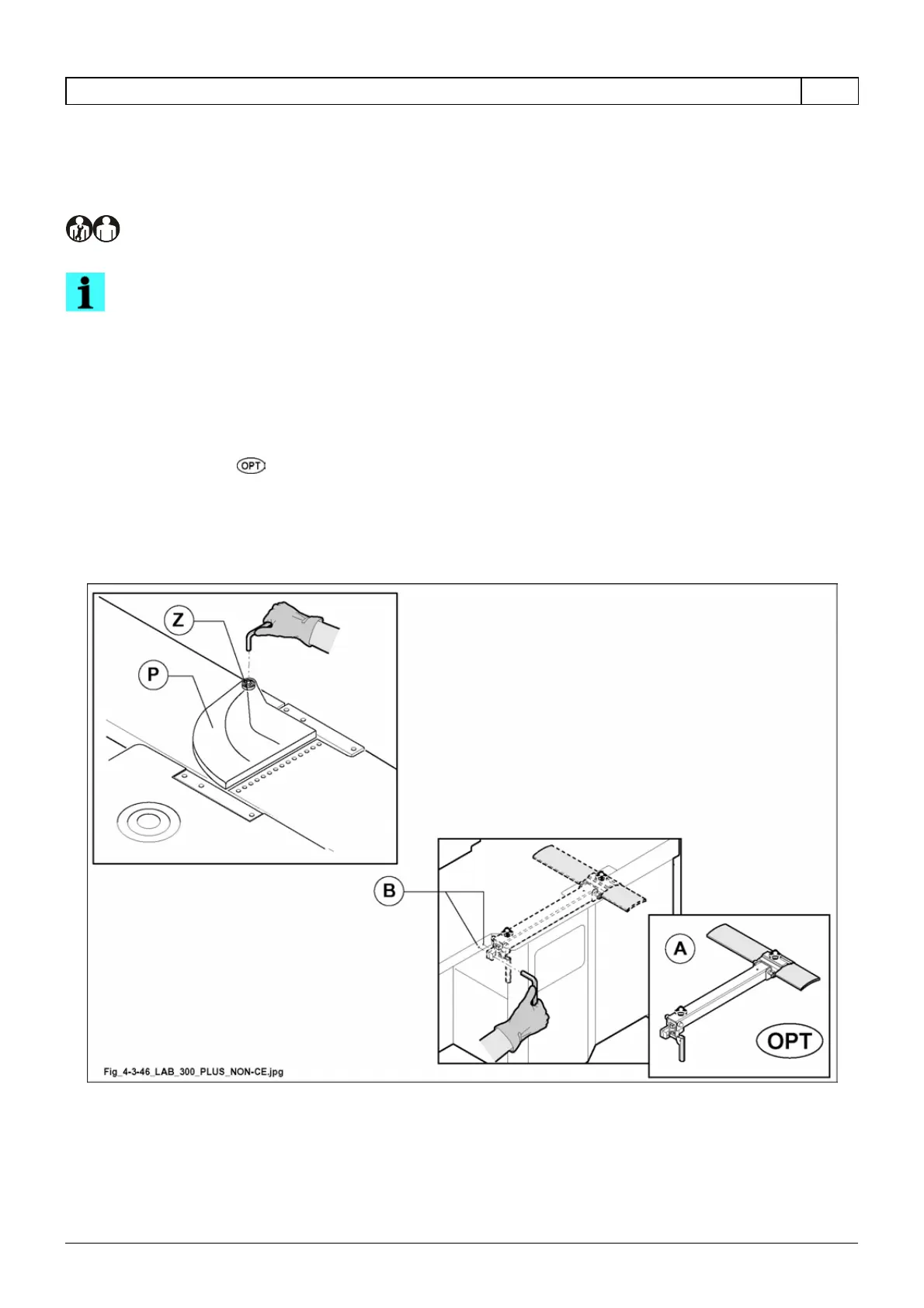

Fig. 4.3-46
