9a - OPERATIONS AND ADJUSTMENTS OF SPINDLE
EN
Pag. 24/45 - Cap. 9a THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN
9A.33.3 USE OF HOOD-FENCE FOR SMALL PIECES
(cu_9a-33-3_0.0)
When repetitive or special operations must be carried out, it is recommended to make a counterfence to be applied
to the router hood, opened to let the tool through. The counterguide must be secured to the two tables by means of
the 2 convex-head screws and 2 m8 nuts (fig. 9.33-3).
To mill the passage opening proceed in this way:
- set horizontal pressure shoe (C fig. 9.33-3) in order to protect the operator against eventual ejection
of splits and tool parts.
- Move the entire hood-fence unit backwards very slowly, up to opening of passage.
DANGER-WARNING:
do not use inserts with openings larger than the tool thickness.
DANGER-WARNING:
after each adjustment, always remember to close the upper cover on the moulder hood and
position the pressers unit (see par. 9.50).

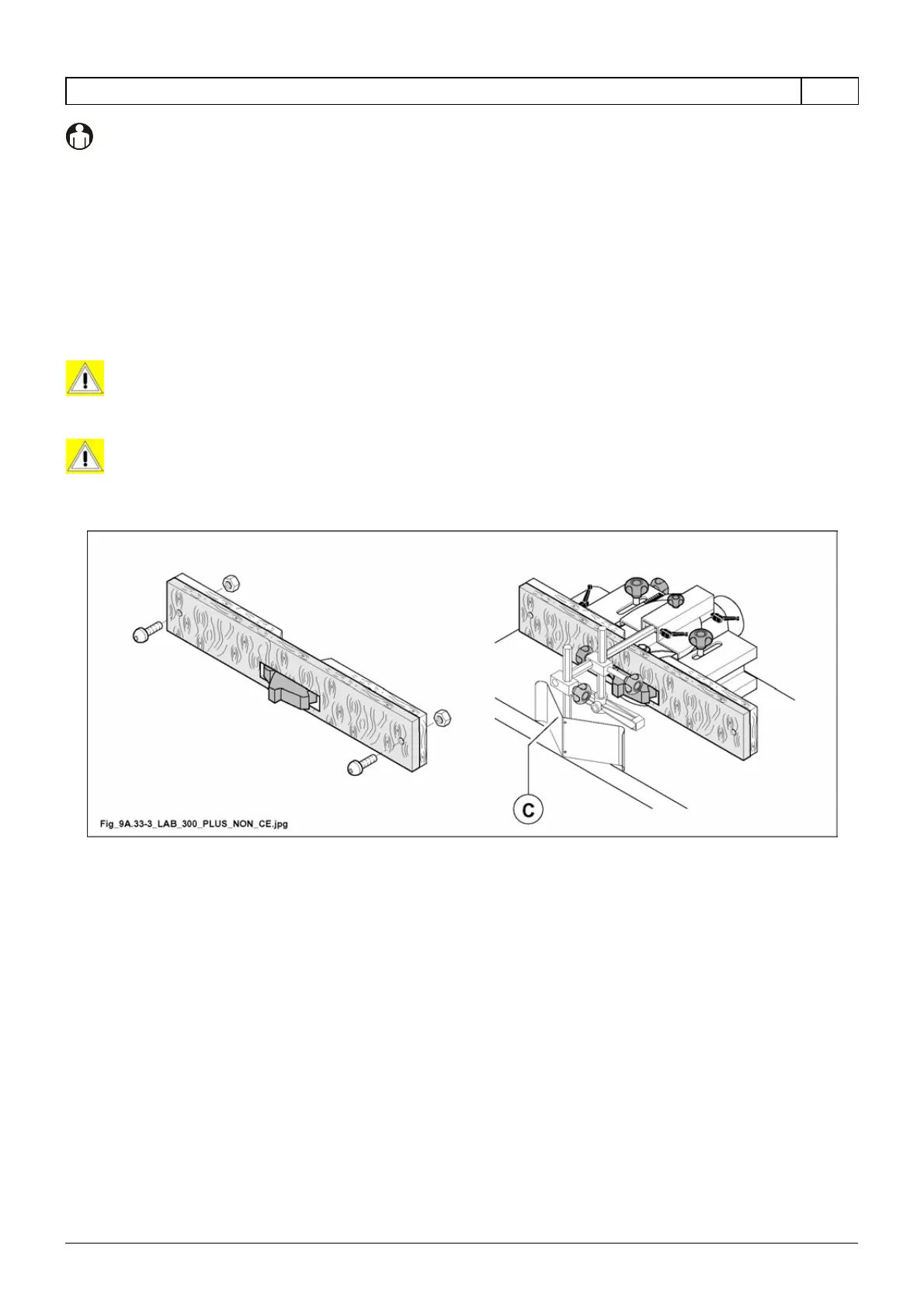

Fig. 9.33-3
