7 - SUPPORTING FRAME AND FENCE FOR PARALLEL CUTS: USE AND
ADJUSTMENT
EN
Pag. 14/26 - Cap. 7 THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN
7.23.6 USE OF THE PRESSER UNIT
(ev_7-23-6_0.0)
DANGER-WARNING:
to ensure a strong panel clamping, the foot shall be at a 1 mm height from the panel surface before
lowering the lever.
- By means of lever (H fig. 7.23-6) lower foot (L fig. 7.23-6) for clamping the piece.
Wood stop unit
- Move stop (G fig. 7.23-6) to the required position;
- Tighten handle (A fig. 7.23-6) hard after adjustment.
NOTE-INFORMATION:
the structure of device (G fig. 7.23-6) permits to perform precision stops also in pieces having an
irregular stop surface.

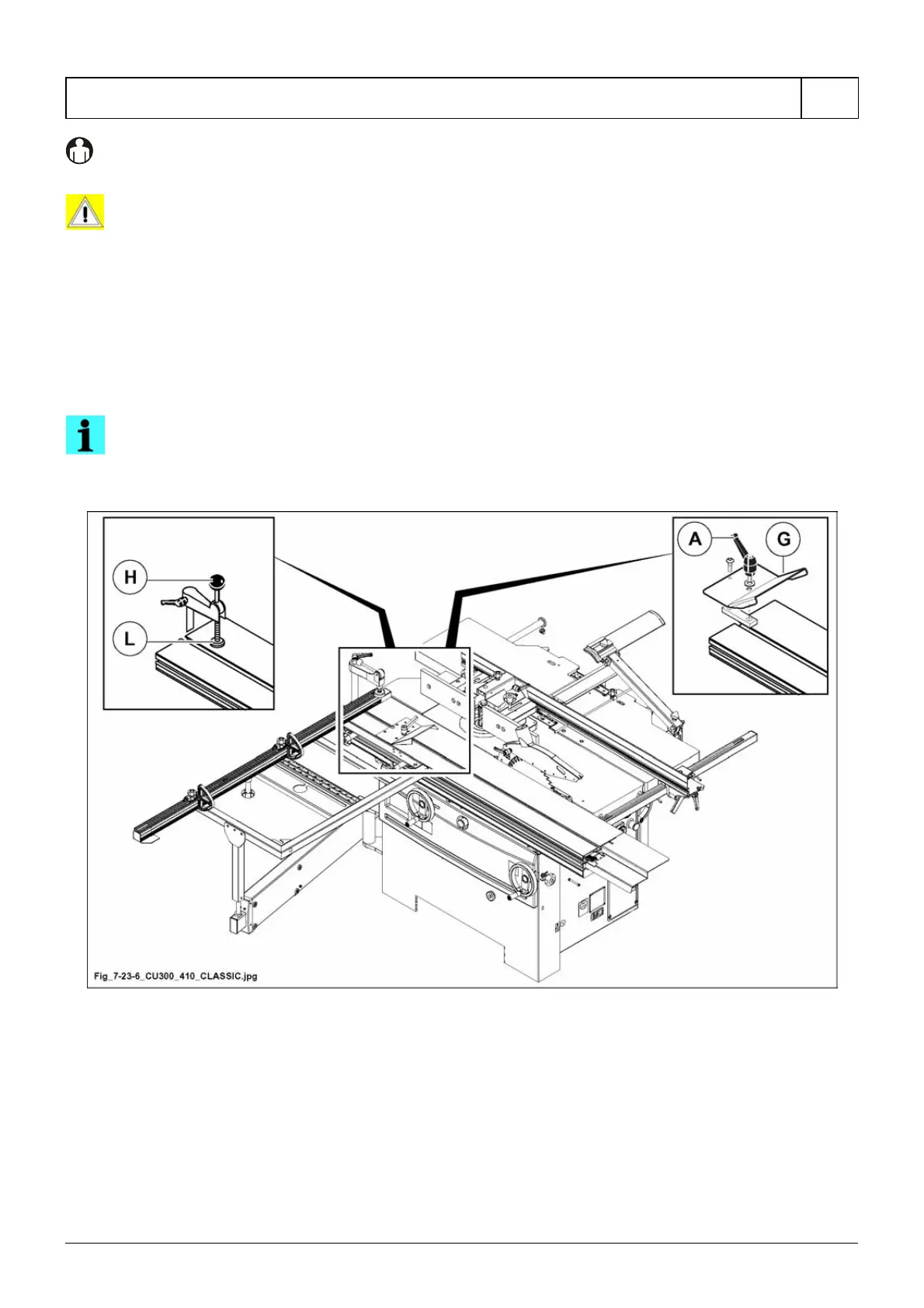

Fig. 7.23-6
