SCM CU 300C - Spindle Moulder; Tenoning Table and Guard - Assembly

4 - INSTALLATION
EN
Pag. 34/53 - Cap. 4 THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN
SPINDLE MOULDER
(titolo_toupie)
4.3.52 TENONING TABLE AND GUARD - ASSEMBLY
(cu-4-3-52-0.0)
NOTE-INFORMATION:
for packing and transport reasons some machine members are removed.
- Insert the wedge (A fig. 4.3-52) in the slot on the wagon.
- Fasten the tenoning table (C fig. 4.3-52) to the table (D fig. 4.3-52) or (F fig. 4.3-52), using screws (E fig. 4.3-
52).

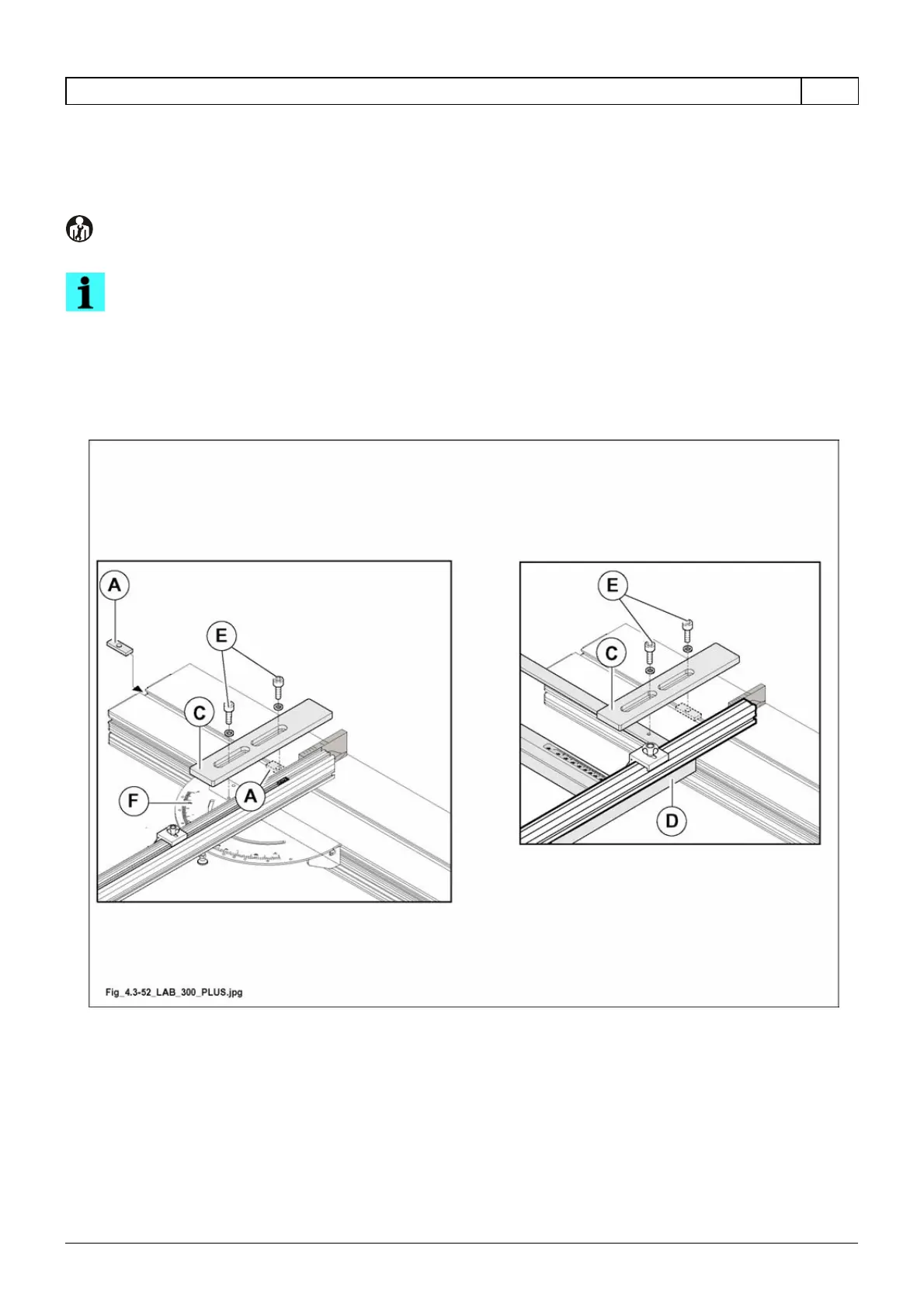

Fig. 4.3-52
