9A.33.5 WORKING EXAMPLES
(cu_9a-33-5_0.0)
Profiling
It is carried out along the wood grain on straight pieces. During the feed motion the entire workpiece shall be in
contact with both half-fences of the moulder fence.
CAUTION:
before proceeding with machining, adjust the router hood and the pressers as indicated in
paragraph 9A.33.
Before starting work check the various fittings.
Connect fitting (4 fig. 9.33-5A) to the suction system.
DANGER-WARNING:
the piece being machined must always be fed using the wood thrust provided (A fig. 9.33-5A).
Start the system and machine asample workpiece. Check the profile height and depth using a gauge. A good
finishing requires a milling with constant feed.

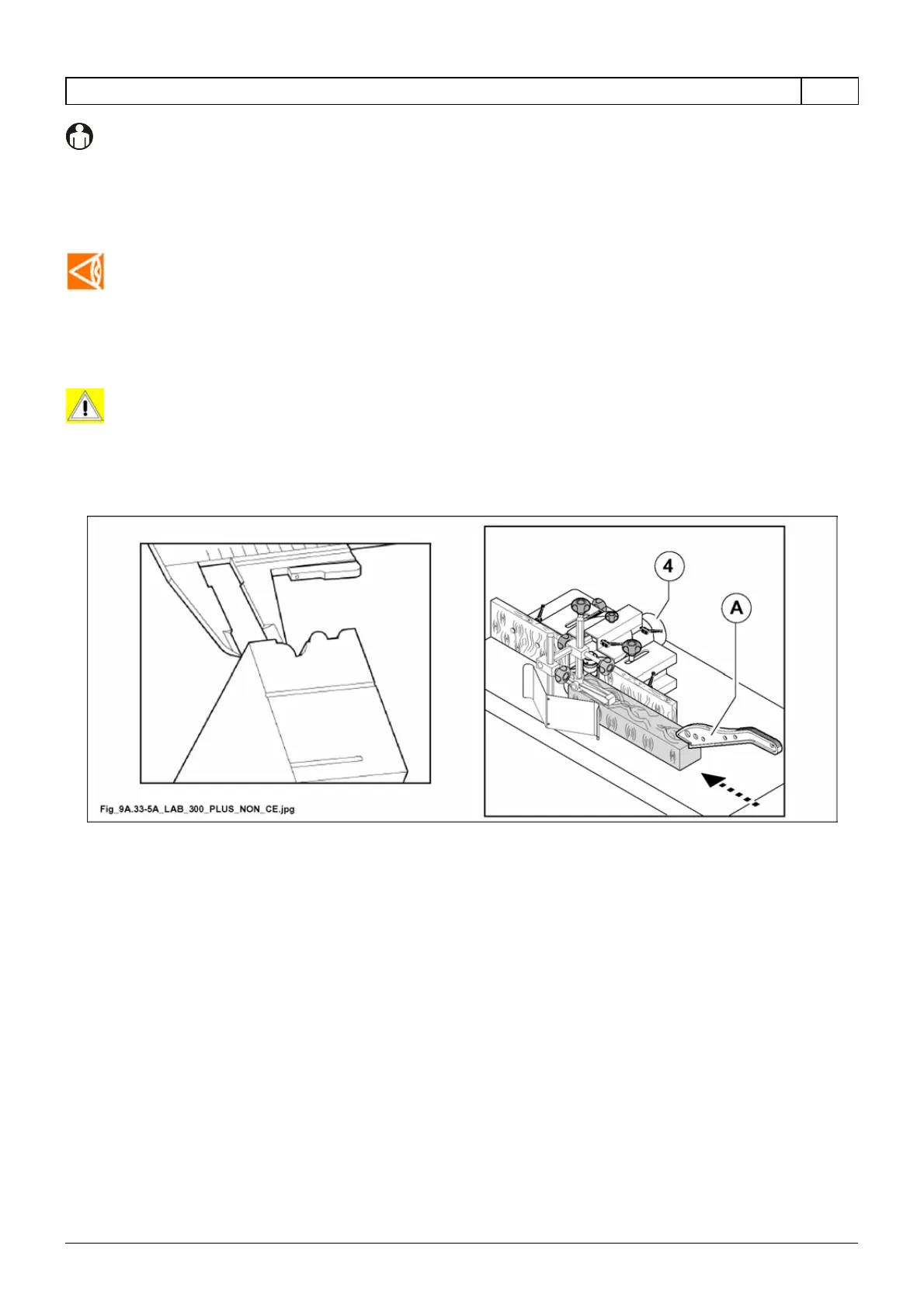

Fig. 9.33-5A
