9a - OPERATIONS AND ADJUSTMENTS OF SPINDLE
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 9a Pag. 29/45
For dead milling cuts (H fig. 9.33-5D) and the machining of short pieces, it is necessary to fi t the stops (A fig. 9.33-
5D) and (B fig. 9.33-5D) (not supplied) onto the input fence and the half–fence.
The stops must be fastened ontothe fences (D fig. 9.33-5D) by means of the screws (C fig. 9.33-5D).
To perform the machining, proceed as follows:
- prepare the machine;
- start the moulder shaft;
- rest the wood piece against the stops (A fig. 9.33-5D) and push it against the milling cutter;
- move the piece forward to the stop (B fig. 9.33-5D).

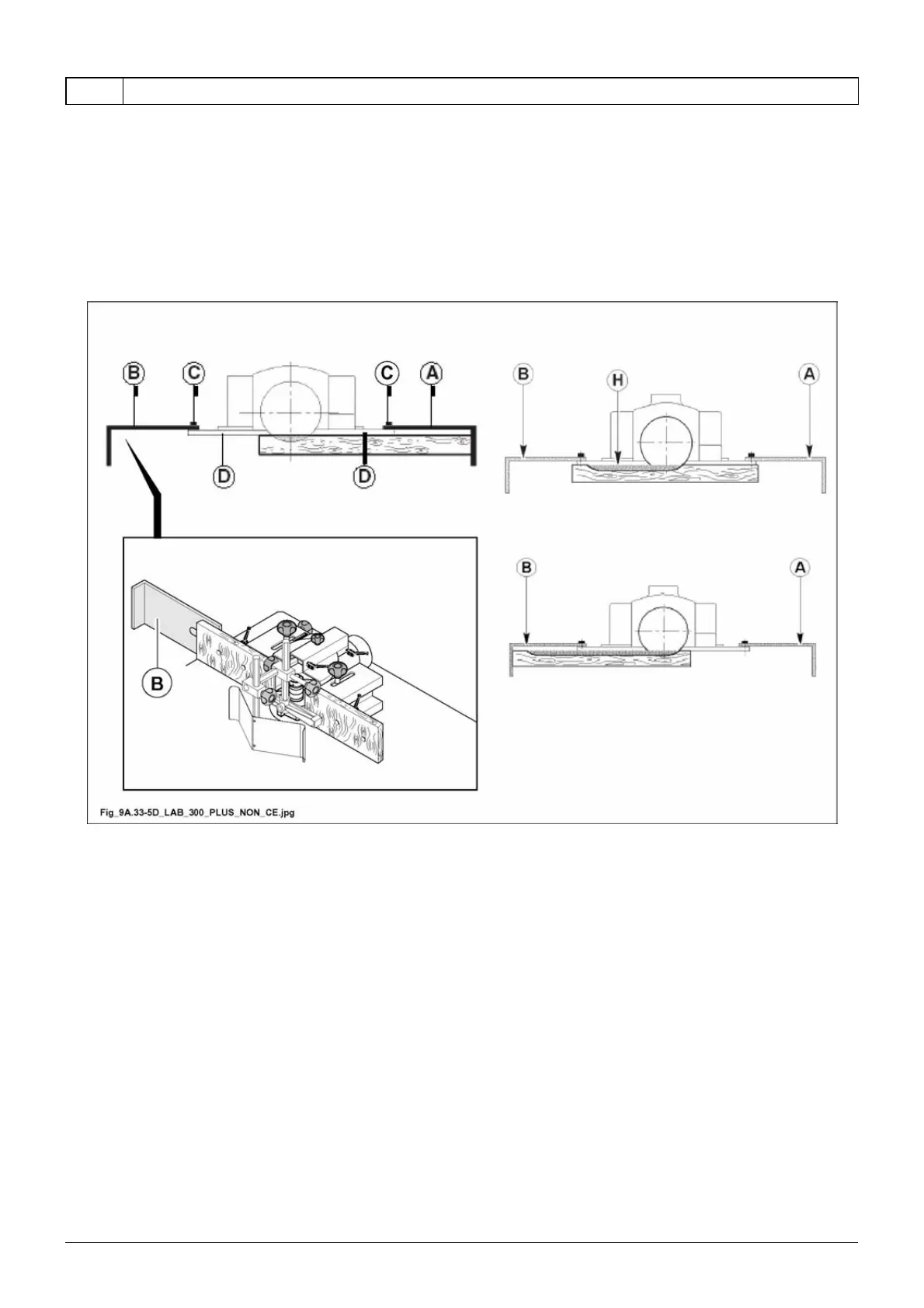

Fig. 9.33-5D
