Rabbeting

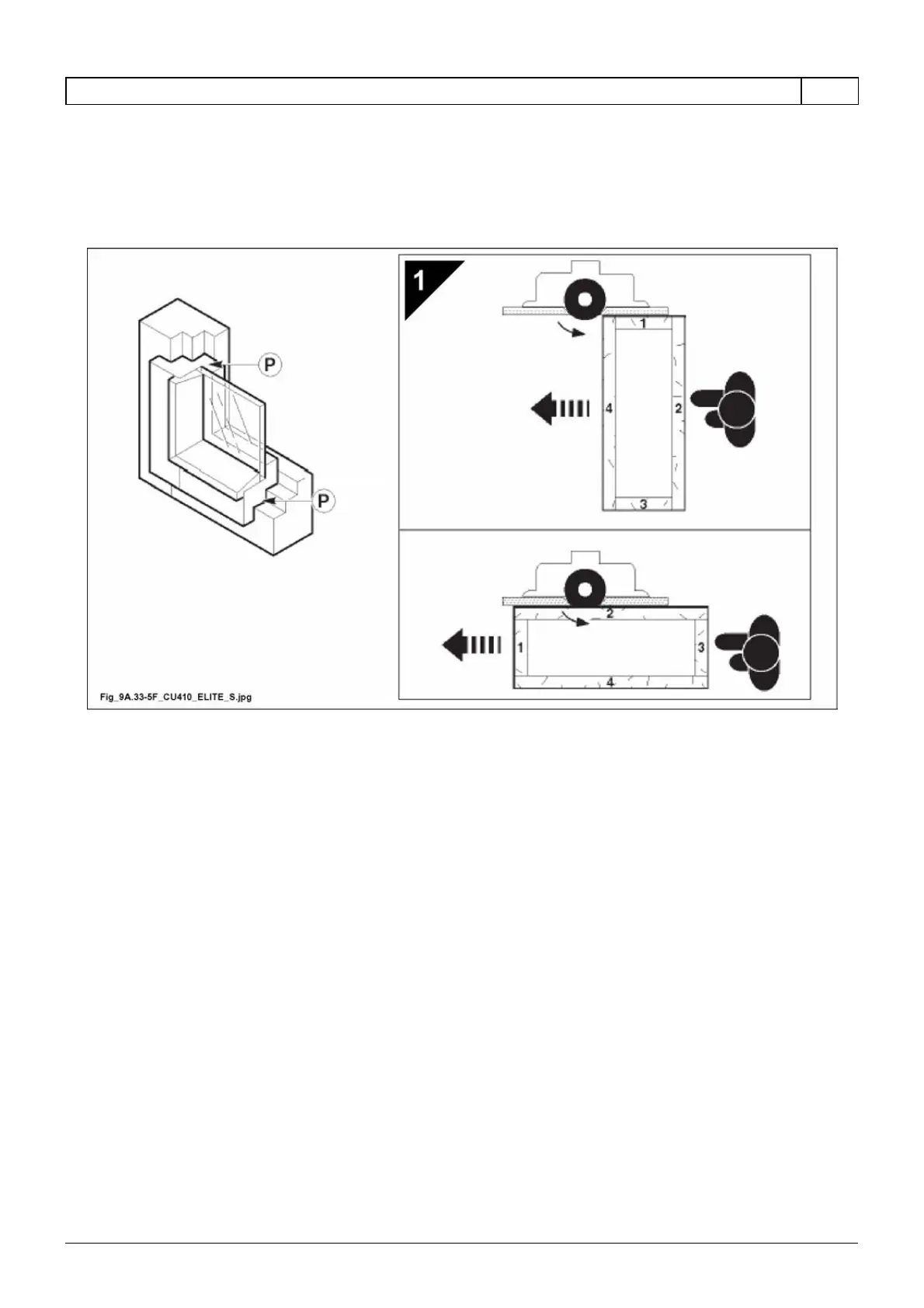

It is the external profiling (P fig. 9.33-5F) of a frame. This operation may be carried out with the workpiece on the
machine table and against the moulder fence or clamped to the sliding table.
It is better to begin from a crosspiece then turn the frame 90° every time in order to eliminate the chipping obtained
in the previous stroke, then work the jamb in the wood grain direction (1 fig. 9.33-5F).
Fig. 9.33-5F
