4.3.32 PLANE AND SAW FENCE - INSTALLATION
(mmax_4.3.32_0.0)
1) Fit slider (B fig. 4.3-32) and tighten lever (A fig. 4.3-32).
2) Position the support (C fig. 4.3-32) on the slider (B fig. 4.3-32) and tighten lever (D fig. 4.3-32).
3) Fit the fence (E fig. 4.3-32) inserting the wedge (F fig. 4.3-32) in slot (G fig. 4.3-32) and tighten the nuts (H
fig. 4.3-32).
CAUTION:
lifting and handling the guide should only be carried out by personnel specially trained to execute
this kind of operations, to prevent accidents or to prevent guide from being damaged.

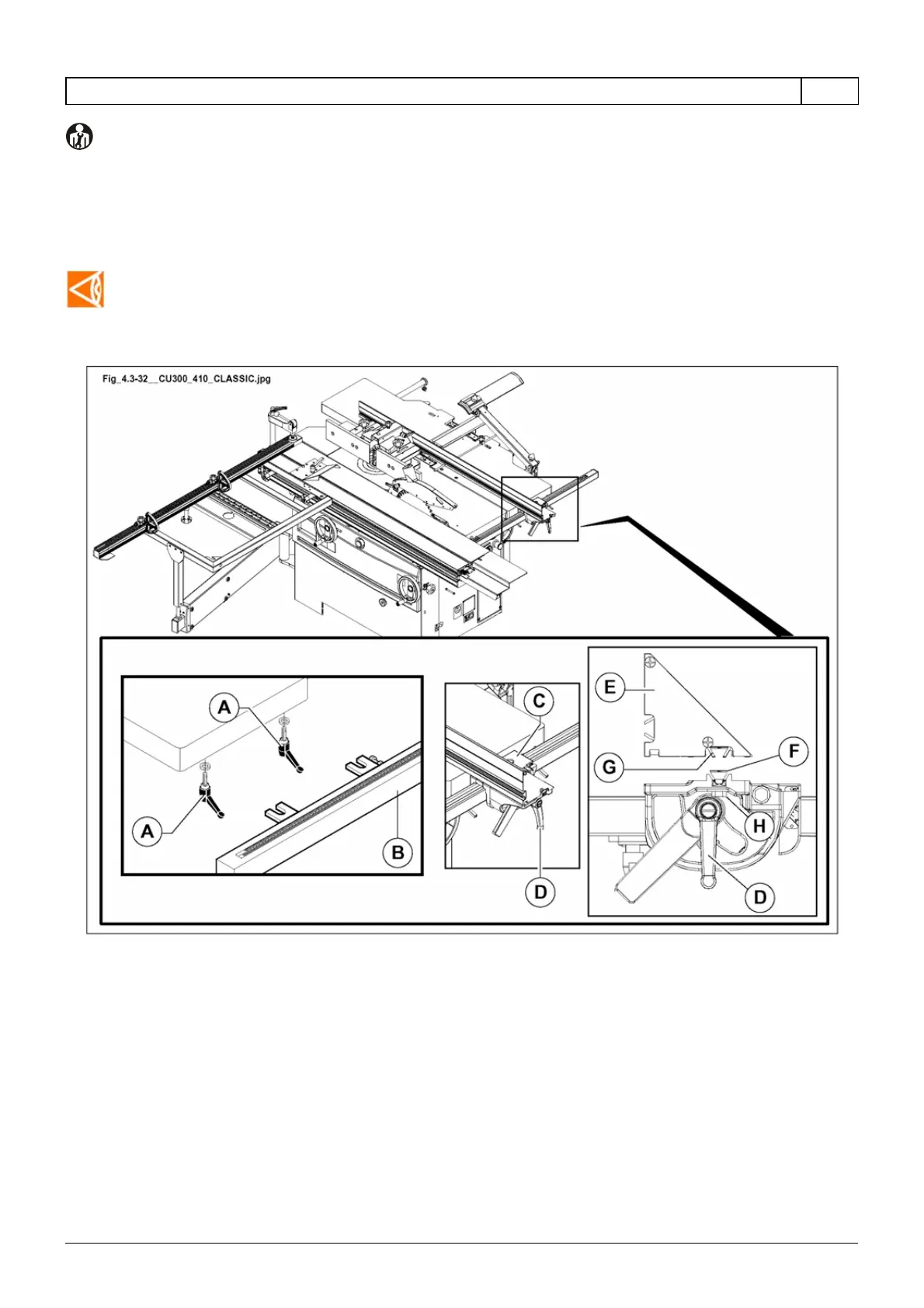

Fig. 4.3-32
