6 - SAW UNIT USE AND ADJUSTMENT
EN
Pag. 10/11 - Cap. 6 THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN

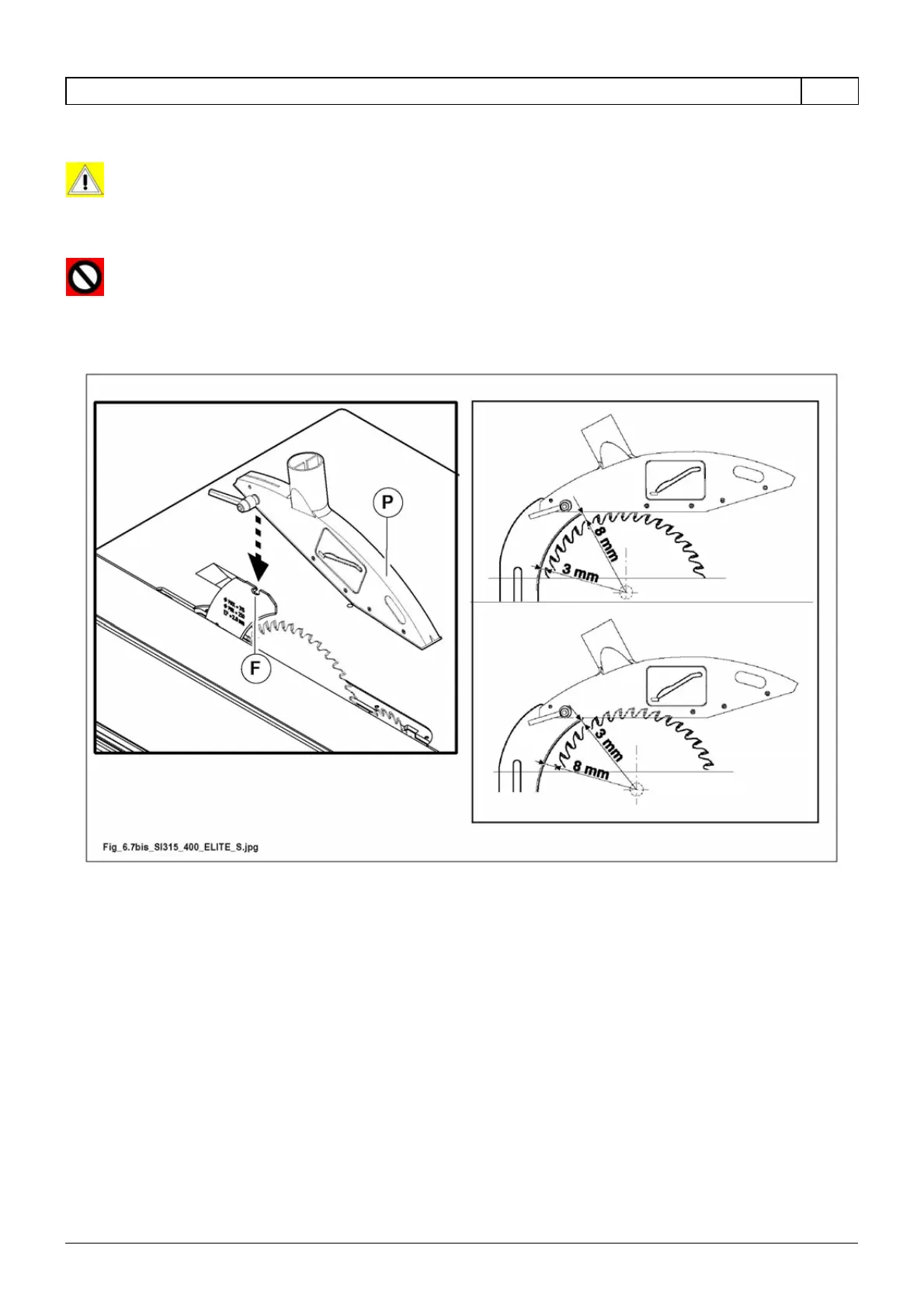

- Once the machining is competed, reassemble the protection P on the riving knife F (see Par. 4.3.12).
DANGER-WARNING:
adjust the position of the riving knife (see Par. 6.1) so that its distance from the saw blade is
between 3 and 8 mm (see example fig. 6.7A).
FORBIDDEN:
IT IS FORBIDDEN to use the machine without the protection provided for each job or to remove
parts of it (IT IS FORBIDDEN to disassemble fixed and mobile shelves and bypass the safety micro-
switches).
Fig. 6.7A
