6 - SAW UNIT USE AND ADJUSTMENT
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 6 Pag. 9/11
Secure the protection (B fig. 6.7) to the rule (R fig. 6.7) for the parallel cut, as shown in the figure, using the fixing
devices (see fig. 6.7):
- (1, 2 NOT supplied by the manufacturer), (3, supplied by the manufacturer) for rule with square groove (Q
fig. 6.7).
- (4, 5 supplied by the manufacturer) for rule with V-shaped groove (V fig. 6.7).

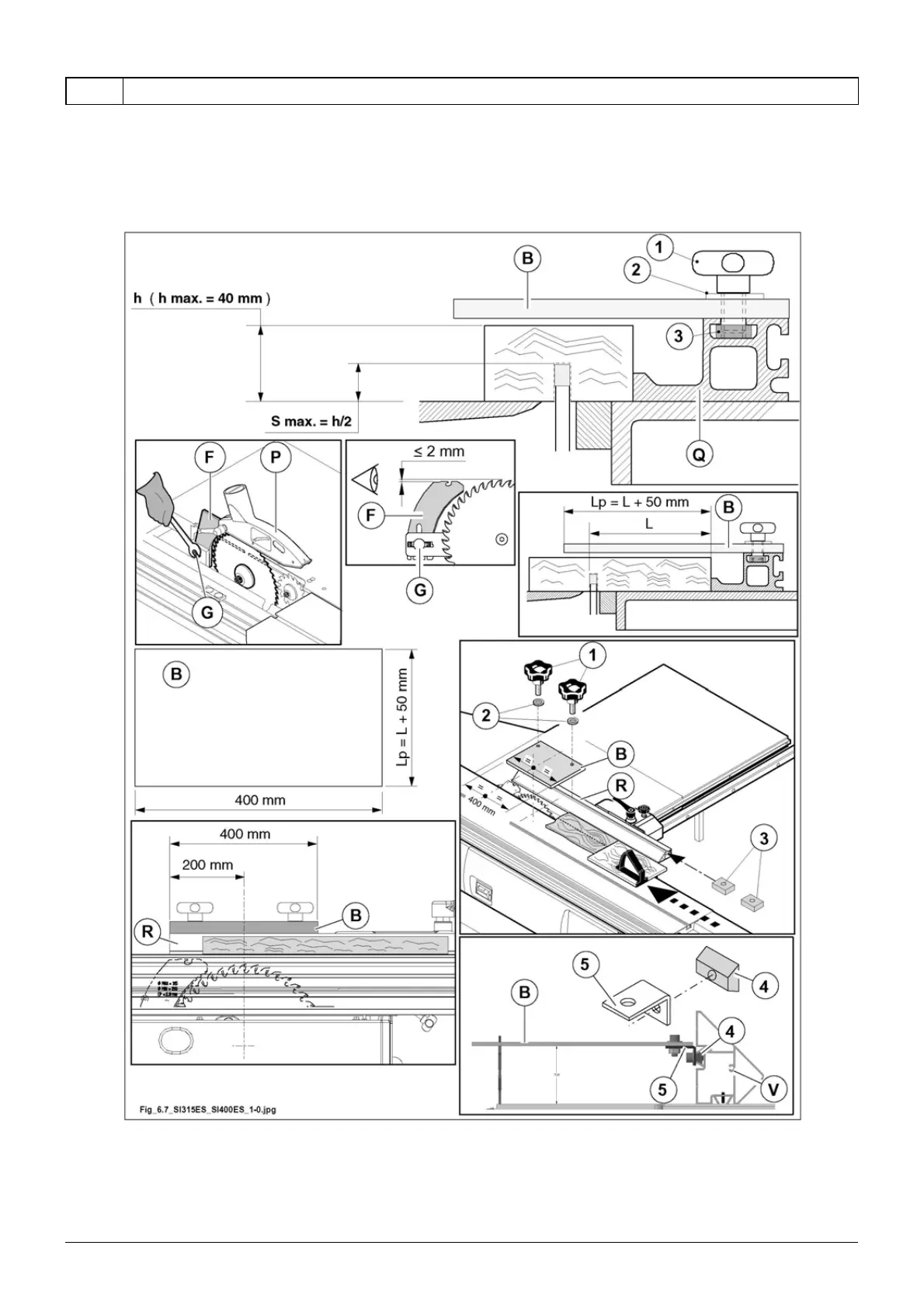

Fig. 6.7
