9a - OPERATIONS AND ADJUSTMENTS OF SPINDLE
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 9a Pag. 19/45
The positioning and adjustment of the spindle moulder fence changes according to the type of operation to be
carried out.
When profiling the entire side of workpiece half-fence ( B ) shall be alignad with tool (1 fig. 9.33A)
If profiling is not done on the entire side, but only on a part, the two fences A and B must be aligned (2 fig. 9.33A)
Adjust the guides A and B on the basis of the processing as indicated as follows.
Position the hood on the working table and screw the two knobs (C,G fig. 9.33A) into their special holes.
DANGER-WARNING:
the two fences must be adjusted so the workpiece is stable at both infeed and outfeed.

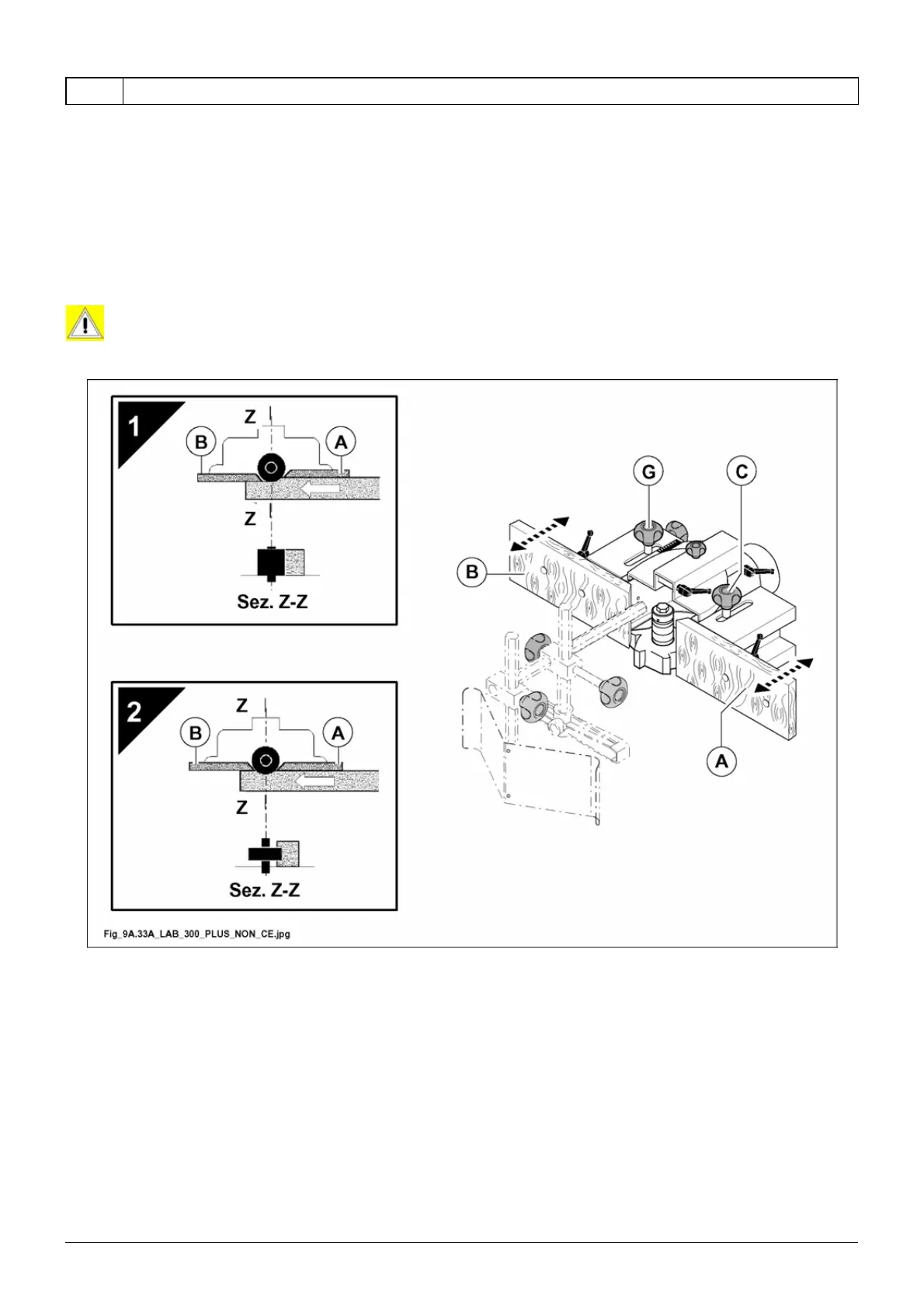

Fig. 9.33A
