4 - INSTALLATION
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 4 Pag. 45/53
NOTE-INFORMATION:
the operator may use both set of tools and single cutters.
In that case it is convenient to number the single cutters.
Each number indicates:
- a measure corresponding to the tool height from the worktable.
DANGER-WARNING:

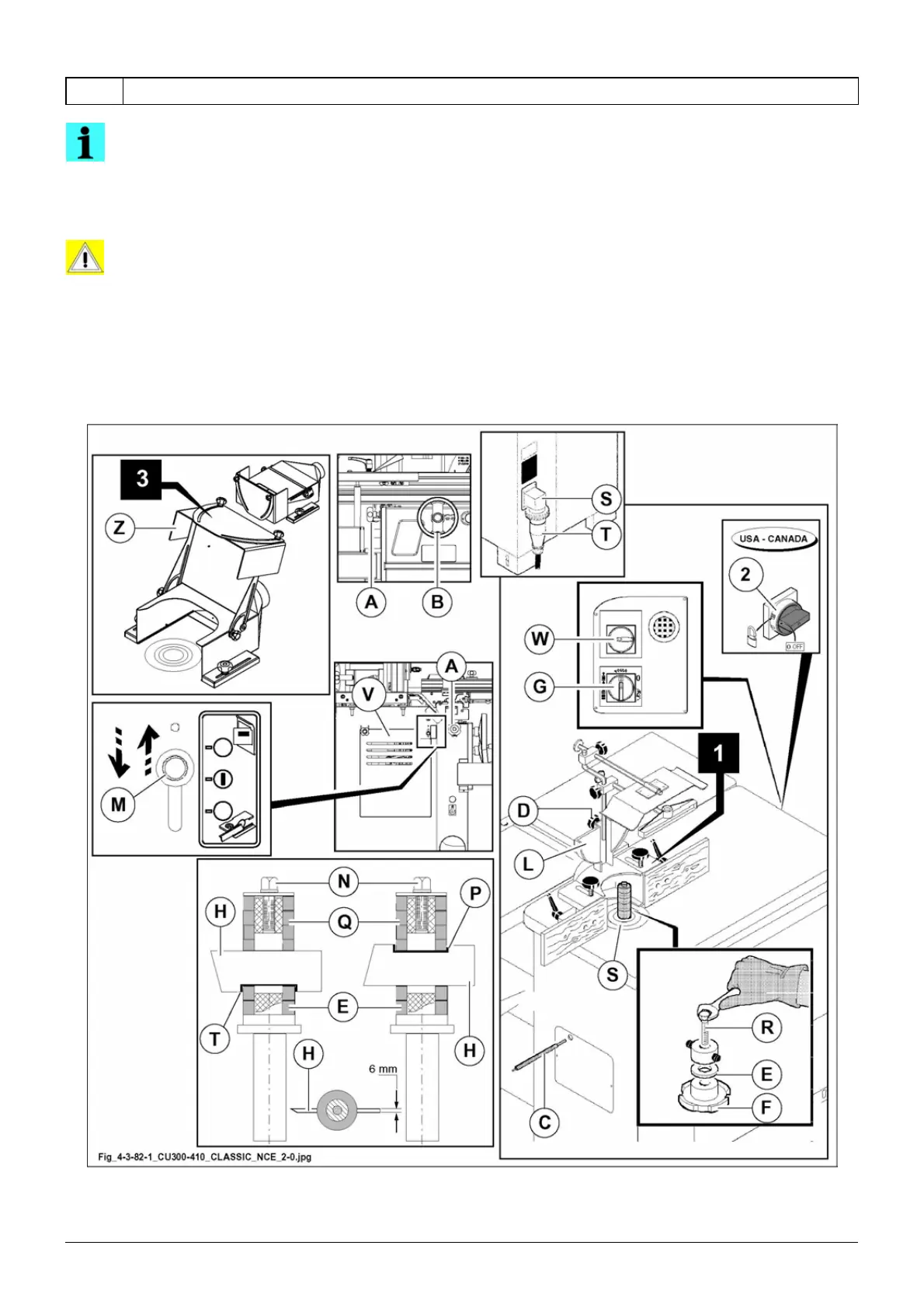

in case of spindles with slot it is possible to fit tools with knife (H fig. 4.3-82-1) (max. thickness: 6
mm) in this way:
- fit the spacer rings (E fig. 4.3-82-1)
- fit the knife with top safety recess (P fig. 4.3-82-1) or lower safety recess (T fig. 4.3-82-1) into the
slot
- fit the spacer rings (Q fig. 4.3-82-1)
- then lock it with proper screw (N fig. 4.3-82-1).
Fig. 4.3-82-1
