4 - INSTALLATION

THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 4 Pag. 51/53

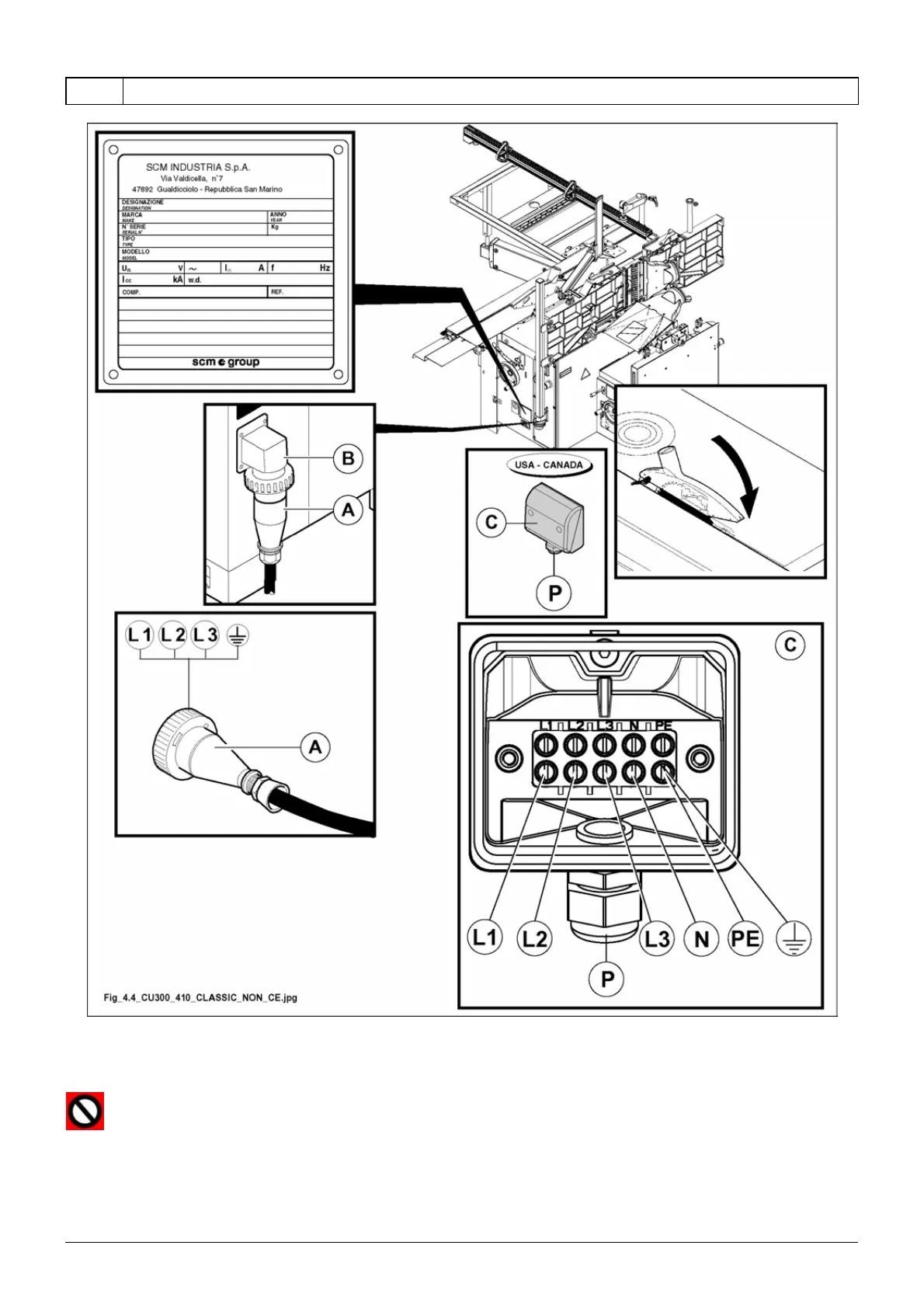

Fig. 4.4

FORBIDDEN:

the electrical setup of the feeder (see APPENDIX-A) must be used exclusively to supply the feeder

Any other use is FORBIDDEN.
