5 - CONTROLS
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 5 Pag. 13/14
Machine Start procedure
- Turn the magnetothermal switch (A fig. 5.5-2) to position I.
Move main switch (1 fig. 5.5-2) to position I (U.S.A. and CANADA).
- Turn the selector switch (N fig. 5.5-2) towards the right
and keep it in that position. Press the button
(M fig. 5.5-2) to start the operator unit; release the selector switch (N fig. 5.5-2) to return to the central
position.
- Go to the relative work station.
NOTE-INFORMATION:
this operation is to be carried out every time you stop the machine and when you want to start the
machine with clockwise spindle rotation.
Machine Stop procedure
- Press the (M fig. 5.5-2) button.
- Set the selector of the magnetothermal switch (A fig. 5.5-2) to position "0".
- Move the selector switch (C fig. 5.5-2) to position "0".
FORBIDDEN:
(U.S.A. and CANADA) it is forbidden to stop the moulder motor by turning selector (C fig. 5.5-2) to
; unlocked motor brake, pilot lamp switched on.

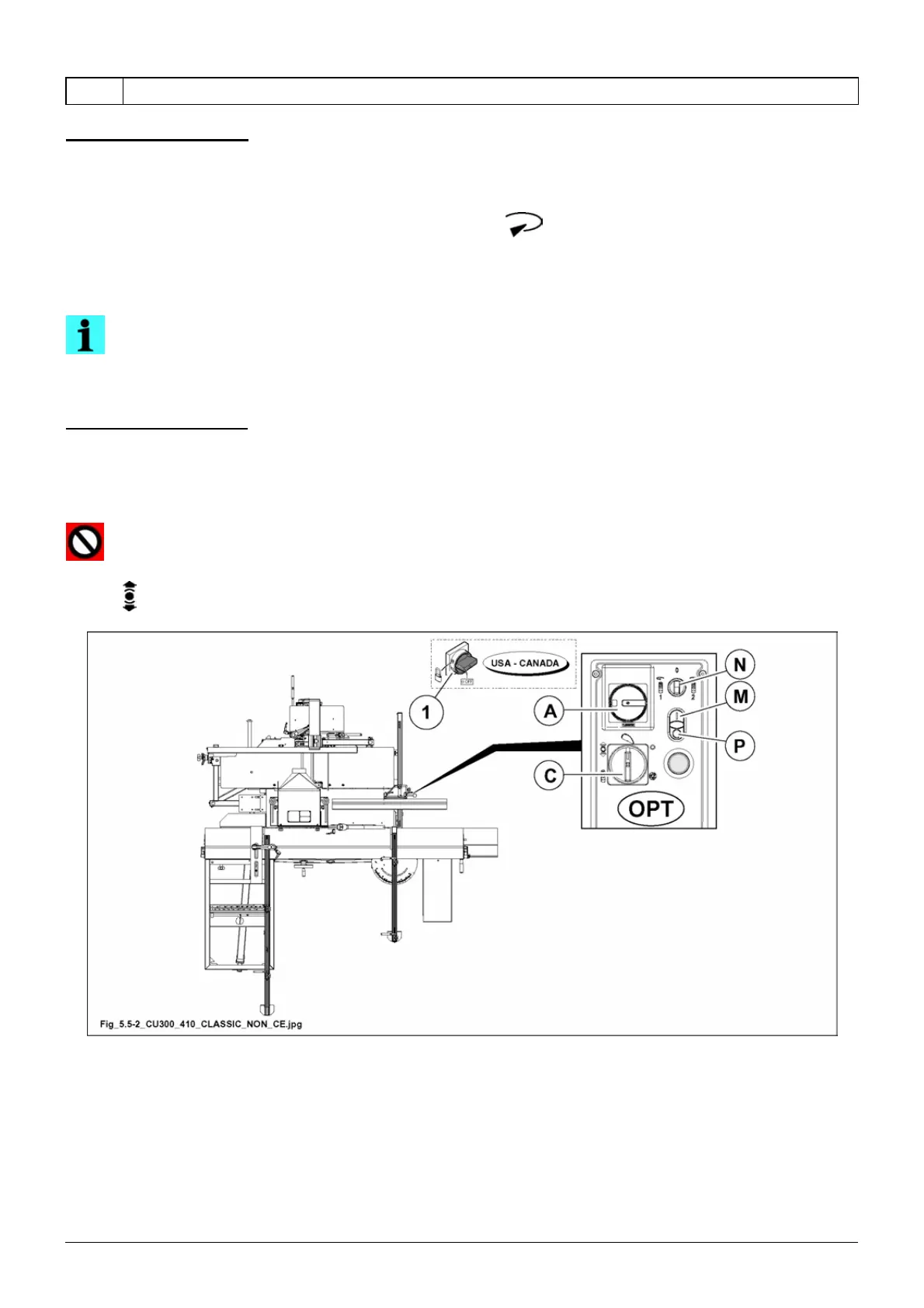

Fig. 5.5-2
