7 - SUPPORTING FRAME AND FENCE FOR PARALLEL CUTS: USE AND
ADJUSTMENT
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 7 Pag. 7/26
DANGER-WARNING:
use of longitudinal guide (2 fig. 7.14.2) to prevent backlash during transverse cut.
(4) = direction of piece feed
During the cut via the transverse guide (3 fig. 7.14.2), the front end of the longitudinal guide (2 fig.
7.14.2) must be positioned before the front end of the blade (1 fig. 7.14.2) or not in contact with the
piece.

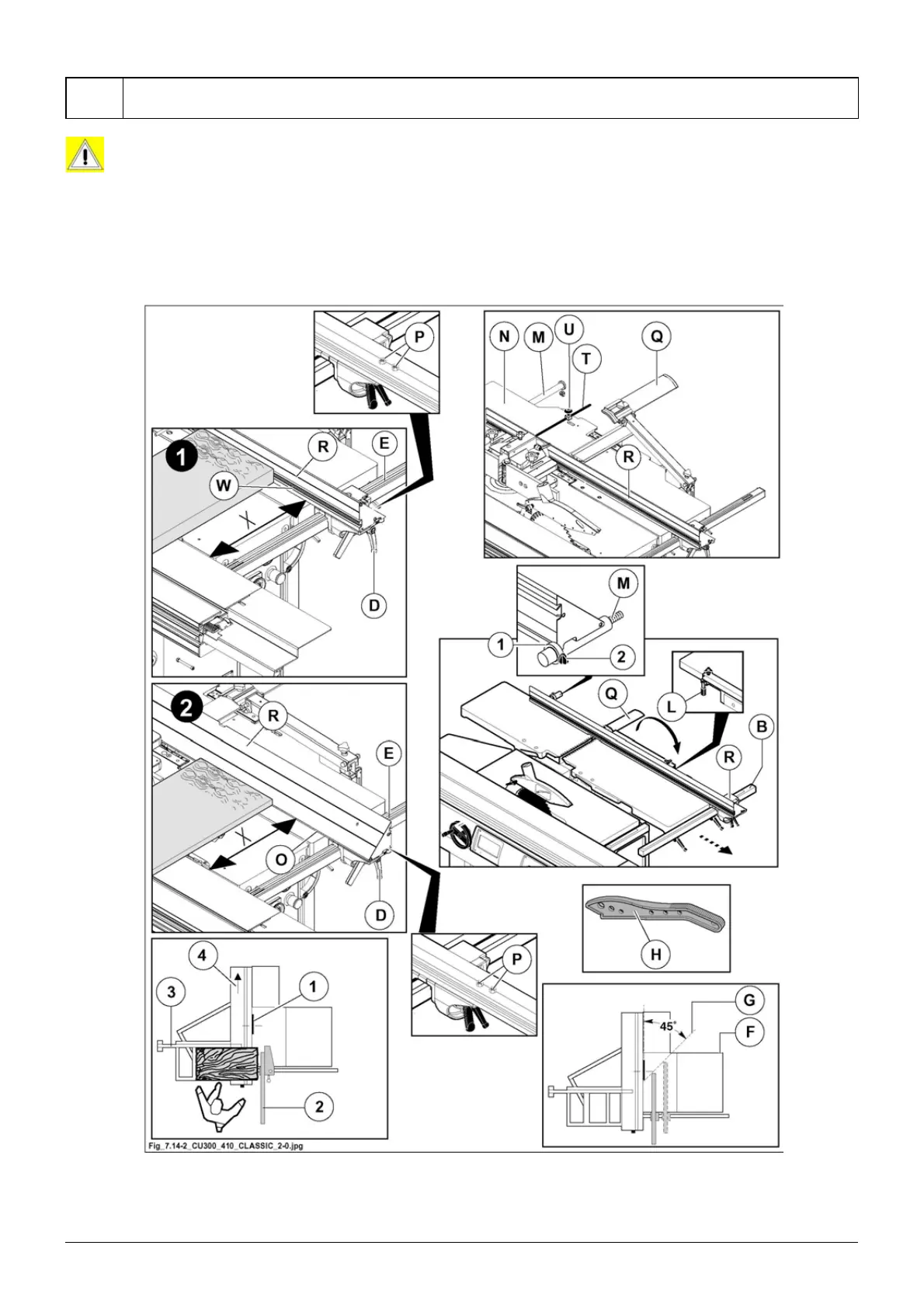

Fig. 7.14-2
