7a - SURFACER USE AND ADJUSTING
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 7a Pag. 3/15
6) Take off the knife setting gauge.
After the adjusting all knives must be at the same height of the outlet table.
To check the knife adjusting rest a wood ledge on the outlet table first on the right side then on the left side, then
manually turn the cutterblock: the knives shall lightly touch the wood ledge uniformly.
DANGER-WARNING

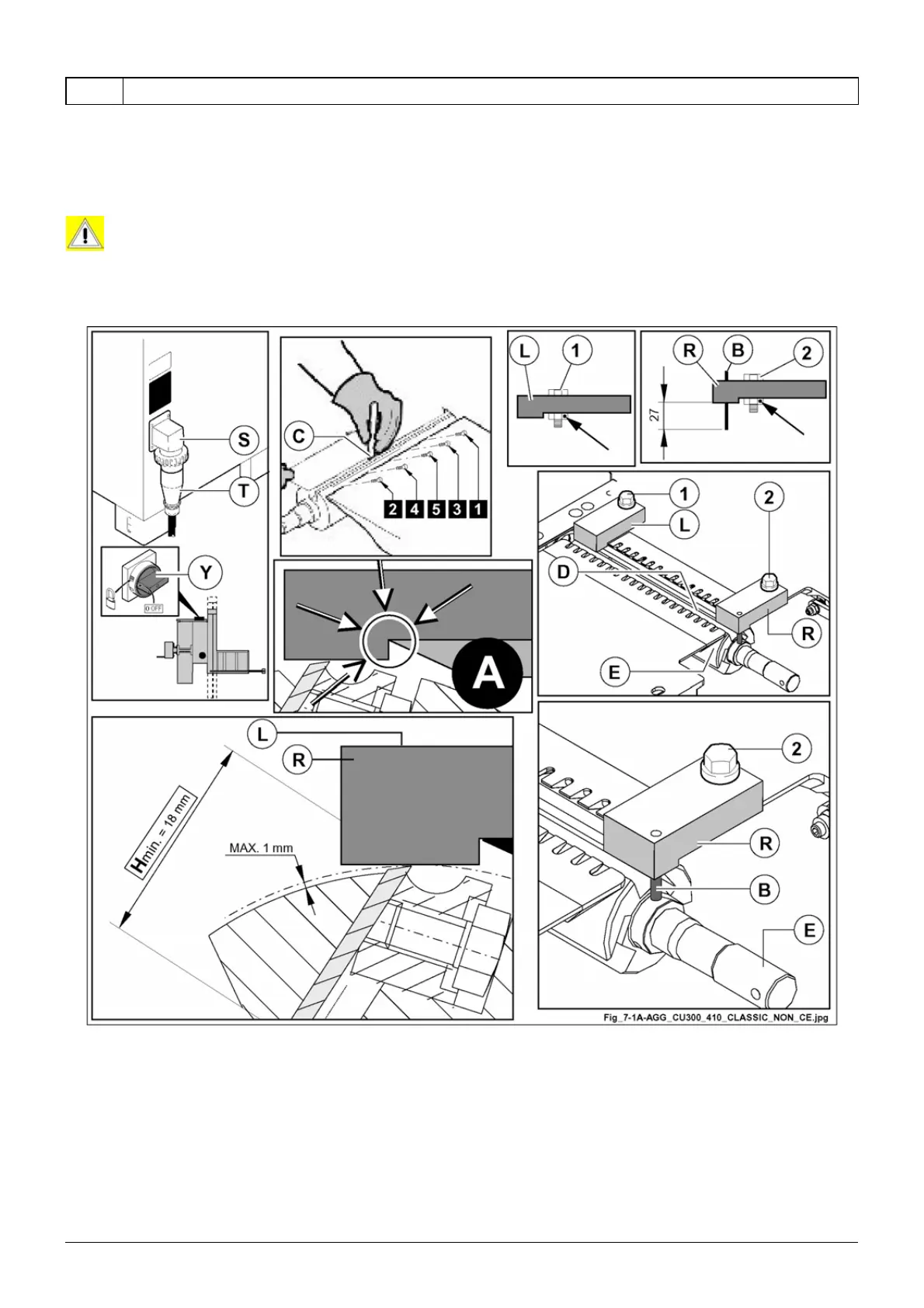

the knife grinding is permitted up to a min. width of 18 mm (fig. 7.1). When this value has been
reached, replace the knife;
max. knife projection from the cutterblock: 1 mm.
Fig. 7.1
