SeaDoo GTX Series 2022 User Manual

Section 06 ST EE RING AND PROPULSION
Subsection 01 (STEERING)

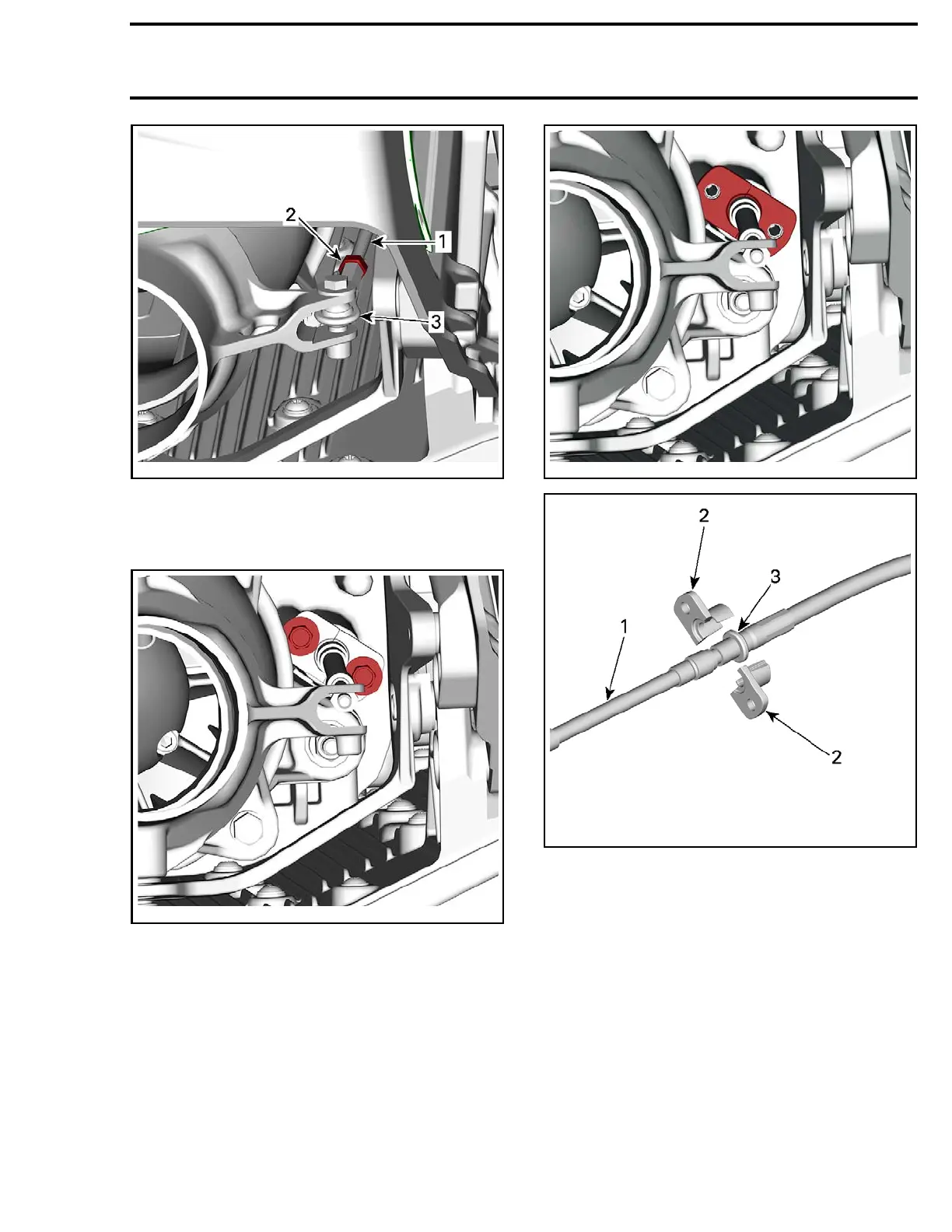

219100893-028-019_a
1. Steering cable
2. Jam nut
3. Ball joint
4. Remove half-rings retaining screws.
219100893-028-020_a
5. Pull the cable assembly to remove the half-rings
and O-ring.
219100893-028-021_a
219100893-028-022_a
1. Steering cable
2. Half ring
3. O ring
6. Remove the adjusting nut from the new steer-
ing cable.
7. From inside the hull, pull the aft end of the cable
through the hull fitting.
8. Using a piece of hose, attach one end of the
new cable to the opposite end of the old cable
together.
9. Route the new cable in the hull by slowly pulling
the old one, then separate cable ends.
10. From inside of the hull, pass the aft end of the
cable through the hull fitting.
11. Secure the steering cable to the hull fitting.
11.1 Install O-ring and half rings.
219100963-017 159

SeaDoo GTX Series 2022 Specifications

General

Engine Type	Rotax 1630 ACE
Engine Displacement	1630 cc
Seating Capacity	3
Hull Material	Fiberglass
Fuel Capacity	70 L
Length	345.1 cm
Width	125.5 cm
Fuel Type	Unleaded gasoline
Hull Type	ST3 Hull
