Central Board
Slots
Push the LUNA2 power supply unit into the slots provided in the lower part of the system cab-
inet shelf until you hear a click (see Figure 4-18).
The power supply unit slots must be covered with the outer panel shown in Figure 3-17 (basic
cabinet) and in Figure 3-18 (expansion cabinet) before the system is started up.

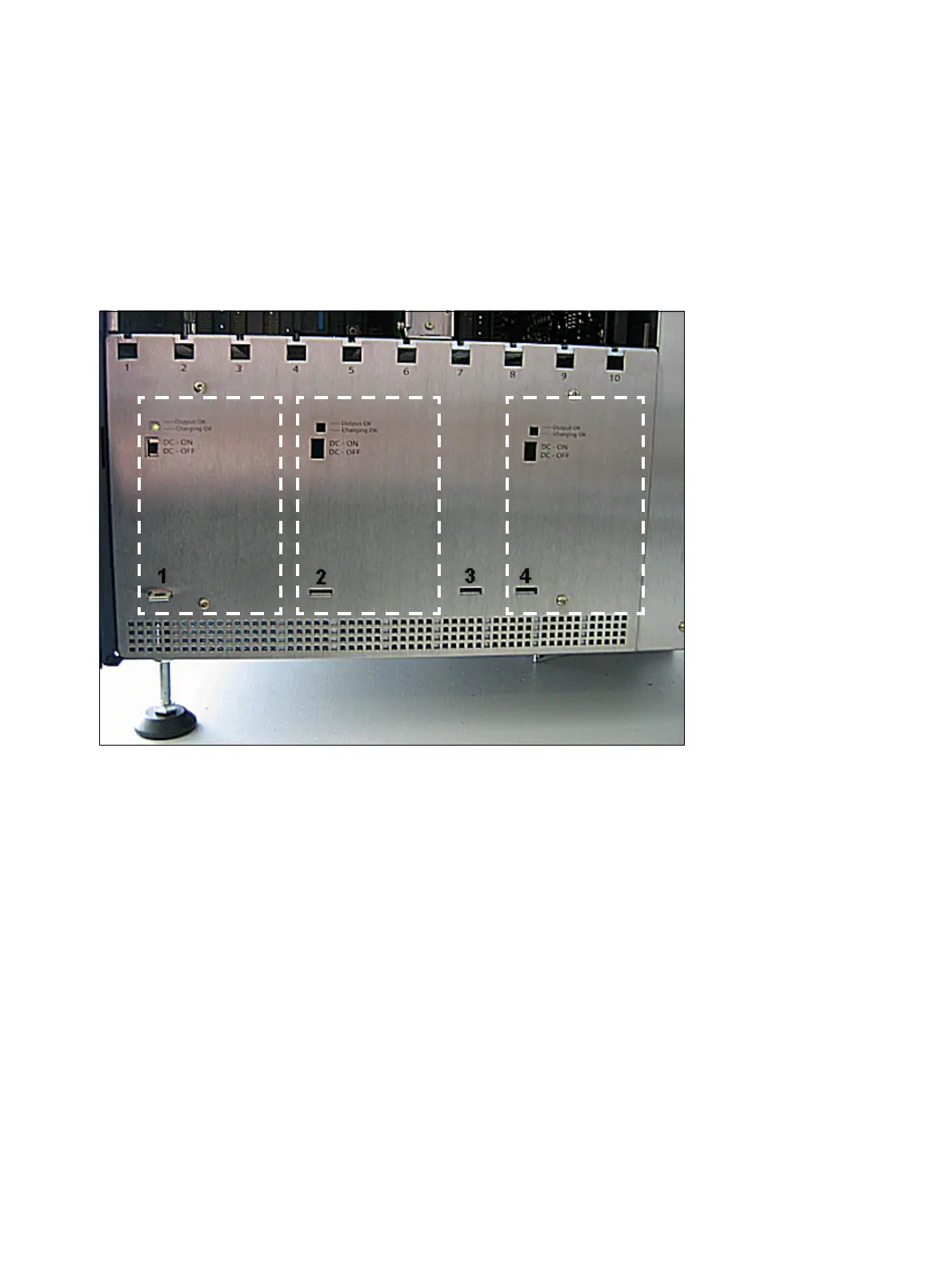

Figure 3-17 LUNA2 slots in the basic cabinet (outer panel mounted)
