Nur für den internen Gebrauch Boards for HiPath 3000

Central Board

● Expansion cabinet

When using one or more SLMA2 boards in the expansion cabinet, RGMOD must be

plugged into the 10-pin port X214 of the expansion cabinet (see Figure 3-21).

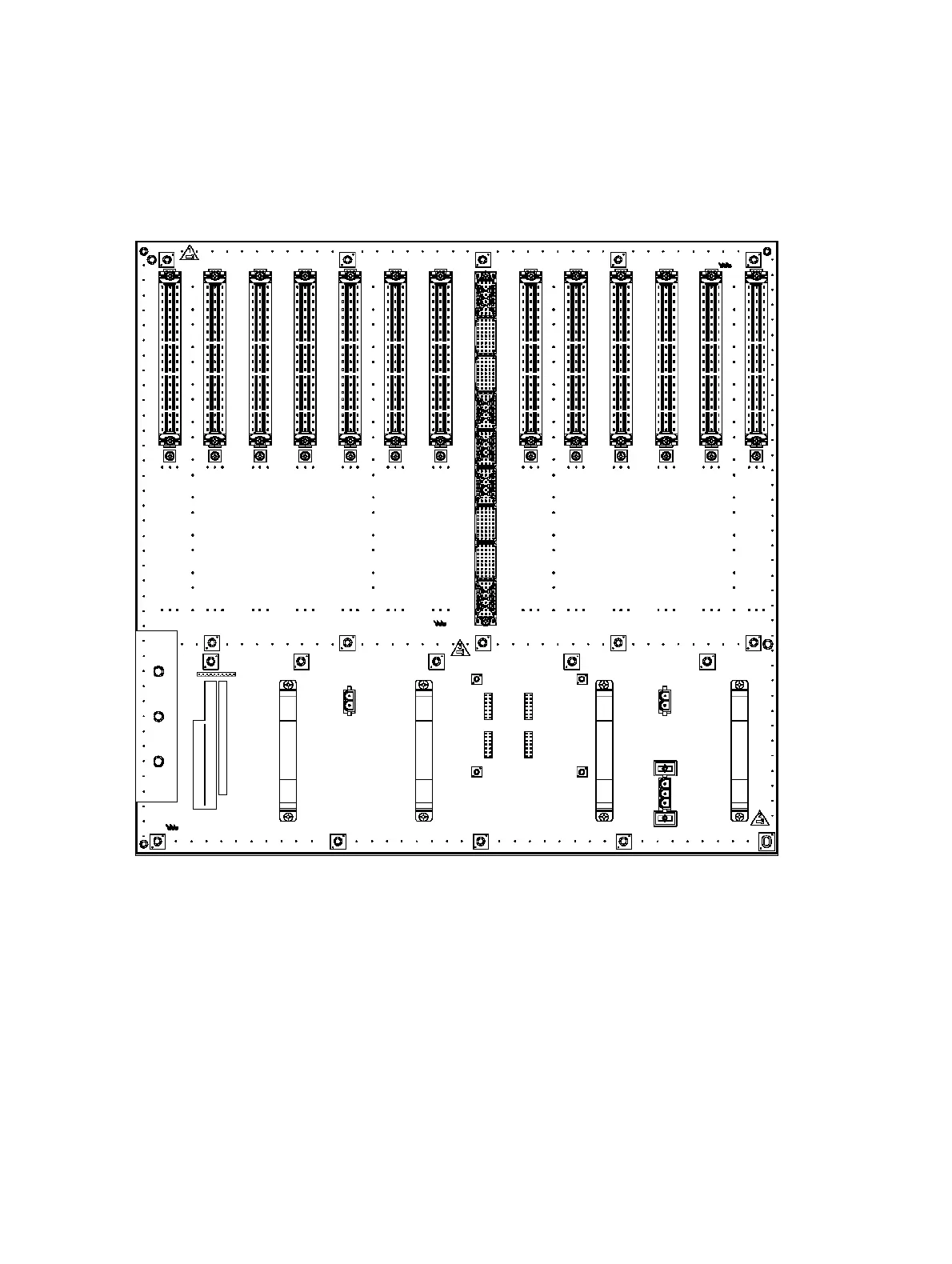

Figure 3-21 HiPath 3800 - Connectors and Jacks on the Backplane of the Expansion

Cabinet

X214
