Peripheral boards
Connections

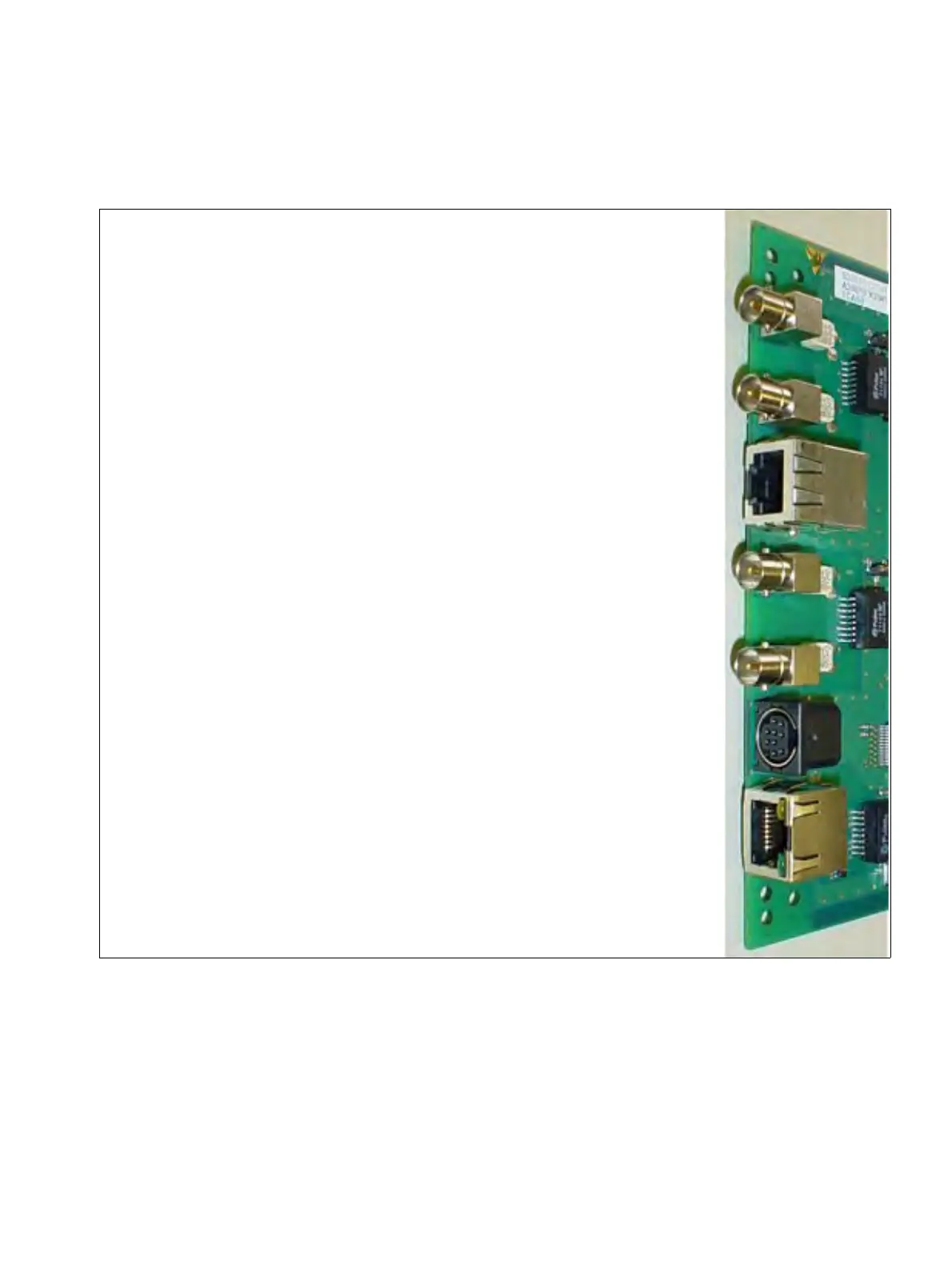

Figure 3-80 TCAS-2, TCASR-2 (for selected countries only) – Connections
X805 (RJ45 jack): Analog modem (optional)
X803 (9-pin MINI DIN jack): V.24 interface
X910 (MINI BNC connector, 75 ohms): Receive (RX)
X804 (RJ45 jack): Ethernet (10/100BaseT) interface
Two LEDs indicate the current interface status:
● Yellow LED = transmitting data
● Green LED = receiving data
CAS interface 1:
X909 (MINI BNC connector, 75 ohms): Transmit (TX)
X911 (MINI BNC connector, 75 ohms): Receive (RX)
CAS interface 2:
X912 (MINI BNC connector, 75 ohms): Transmit (TX)
