Nur für den internen Gebrauch Boards for HiPath 3000

Peripheral boards

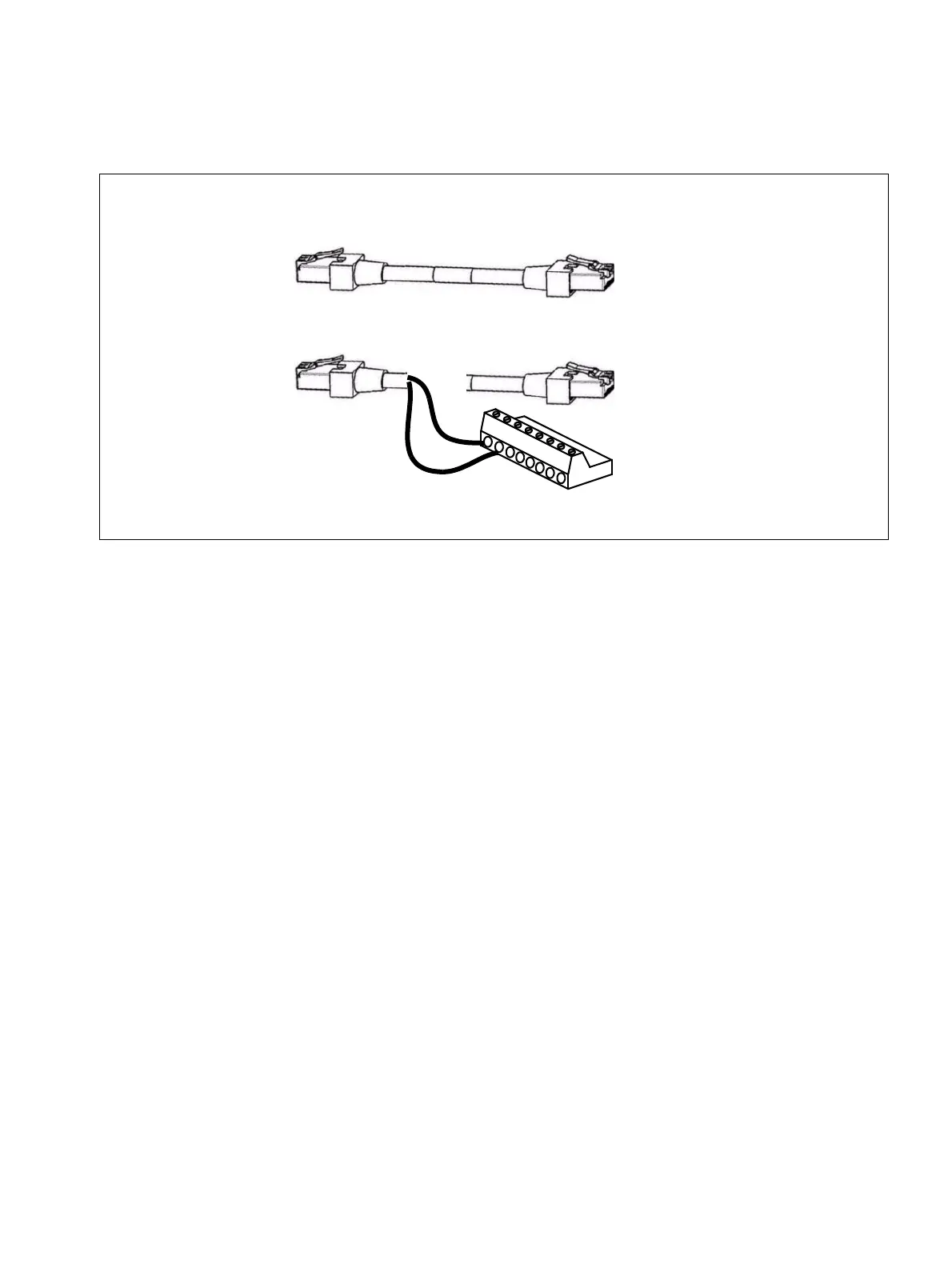

Figure 3-85 TCAS-2, TCASR-2 (for selected countries only) – RJ45 Cable C39195-Z7208-

A10

RJ45 Cable C39195-Z7208-A10 (included in modem kit F31505-E1-A147)

Plug the RJ45 connector into

the free jack on an analog sub-

scriber line module.

● HiPath 3500

TCASR-2: X805

● HiPath 3550

TCAS-2: X805

Disconnect the RJ45 cable and

connect the T/R wires to the

free terminals on an analog

subscriber line module.
