Peripheral boards
Assigning the CAS cable
The following options are available for connecting network terminators (NT), multiplexers
(MUX) or modems to the TCAS-2 and TCASR-2 cards (MINI BNC connections):
● Coaxial trunk (75 ohms), length = 10 m
● symmetrical line (120 ohms)
The impedance converter F31505-E1-A146 must be used for connecting to a symmetrical
trunk.

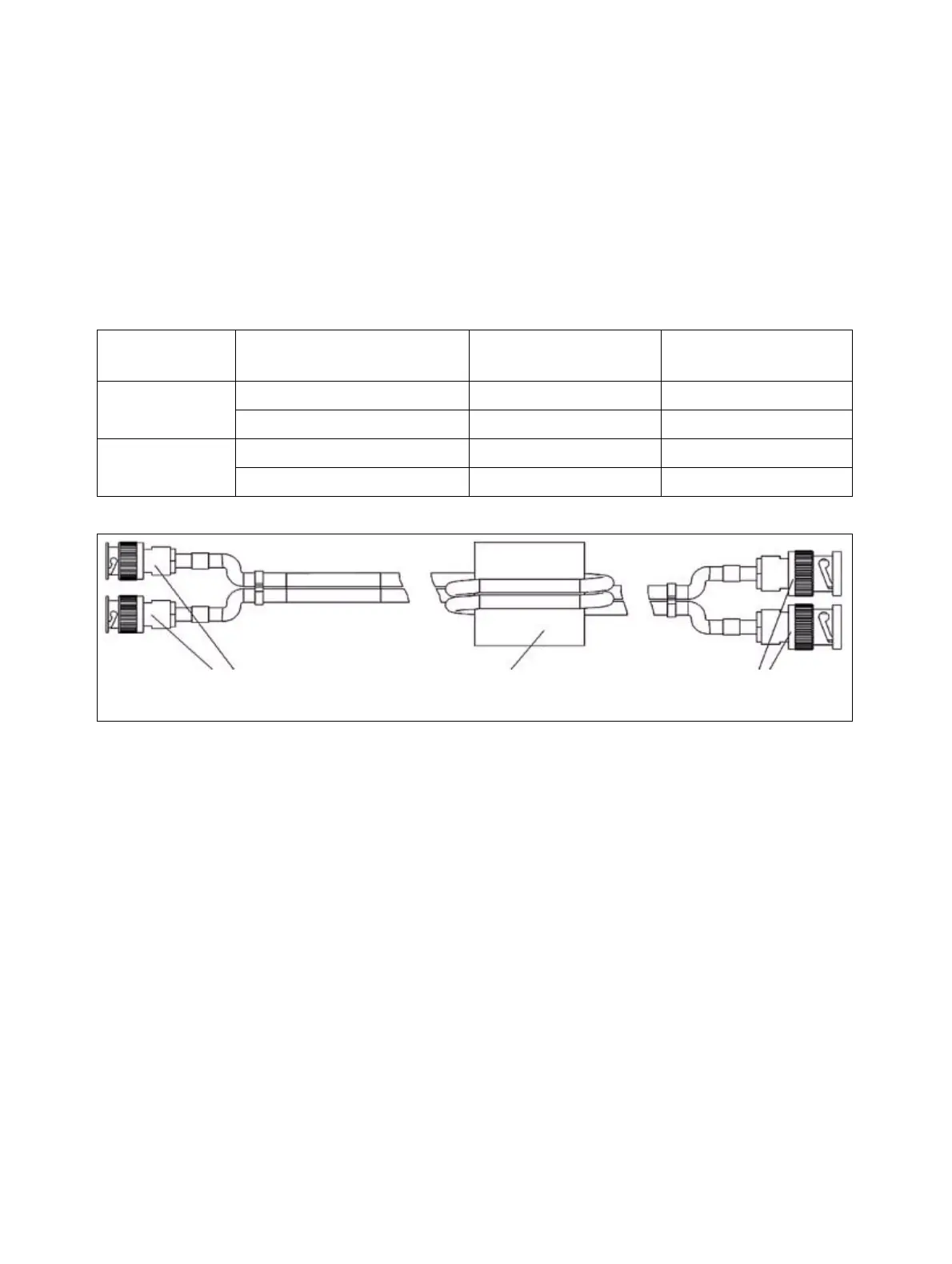

Table 3-119 TCAS-2, TCASR-2 (for selected countries only) – Assignment of the CAS
Cable C39195-A7700-B13
Wire Function MINI BNC connec-
tor
BNC connector
1 Receive, Tip Conductor Conductor
Receive, Ring Shield Shield
2 Transmit, Tip Conductor Conductor
Transmit, Ring Shield Shield
Figure 3-86 TCAS-2, TCASR-2 (for selected countries only) – CAS Cable C39195-
A7700-B13
MINI BNC connector Ferrite core BNC connector
