Boards for HiPath 3000 Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

3-278 HiPath 3000/5000 V9, Service documentation

boards.fm

Peripheral boards

Interfaces

Contact assignments

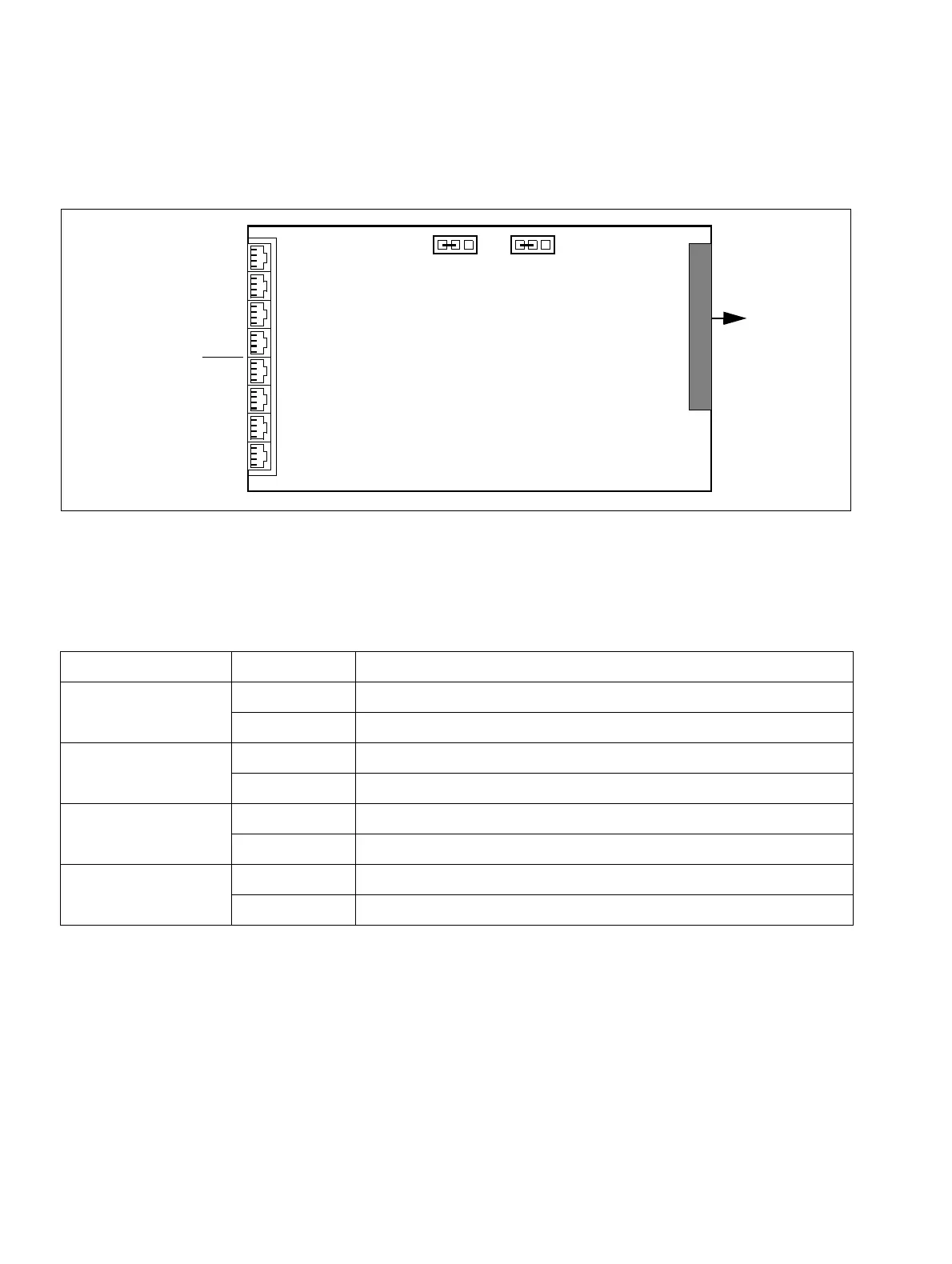

Figure 3-97 TLANI4R - Interfaces (S30810-K2953-X2xx)

Table 3-133 TLANI4R - Contact Assignments

MW8 jack X5, pin Trunk connections 1-4

1 14 a, trunk 1

15 b, trunk 1

2 24 a, trunk 2

25 b, trunk 2

3 34 a, trunk 3

35 b, trunk 3

4 44 a, trunk 4

45 b, trunk 4

8 MW8

jacks

to CUPR/

CUCR

MSI 1

MSI 4

ALUM

1 + 2

Jumper

TLANI4R

X106

1 2 3

X105

1 2 3
