Installing HiPath 3000 Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

4-130 HiPath 3000/5000 V9, Service documentation

inst_h3.fm

Installing HiPath 3550, HiPath 3350, HiPath 3500, and HiPath 3300

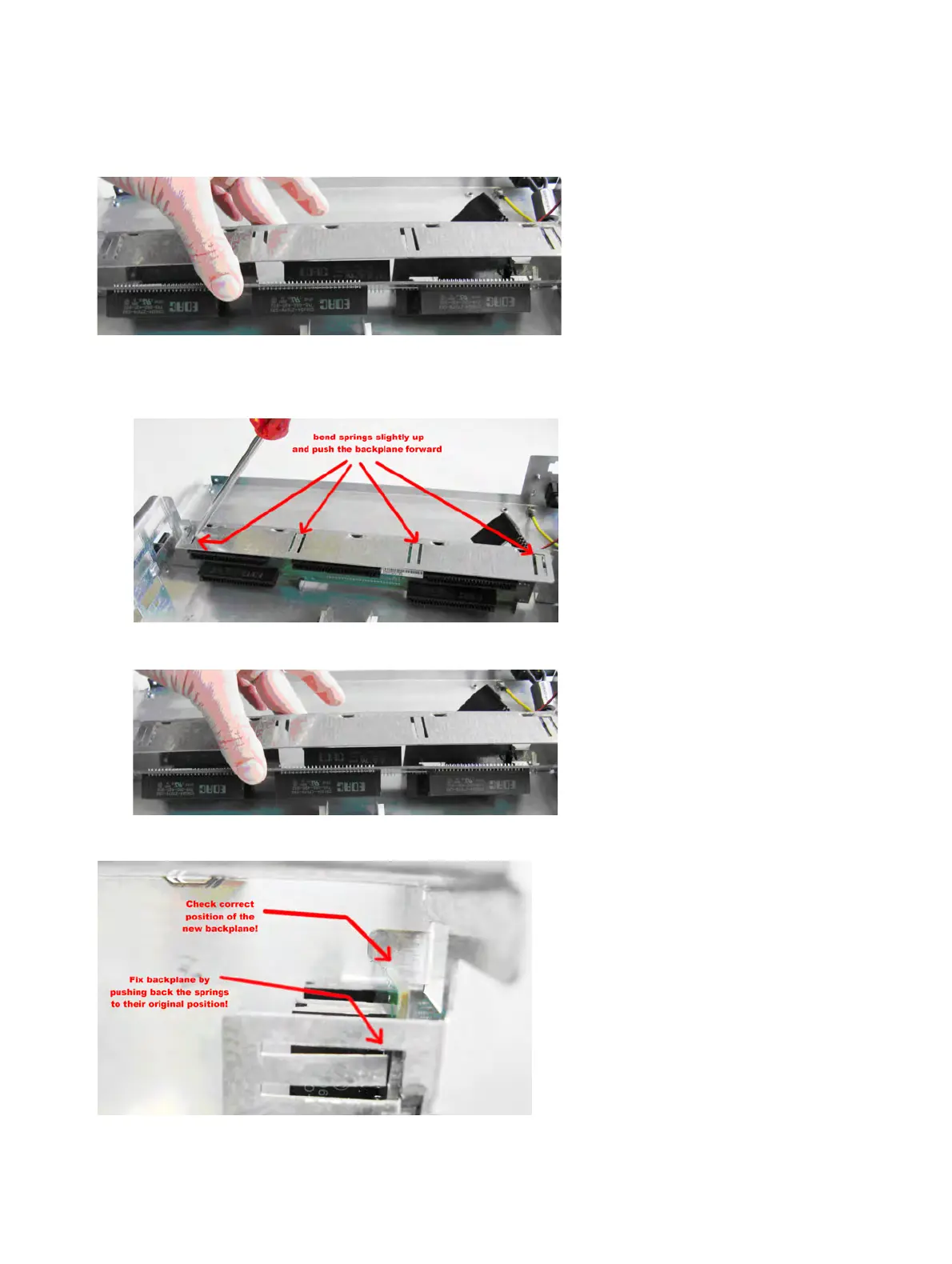

6. Release the backplane from the rear of the HiPath system:

7. Remove the backplane from the HiPath system:

a) To remove the backplane, bend the springs a little and push the backplane forward:

b) Tilt the backplane forward and pull it upward and out of the case.

8. Install the new backplane into the HiPath system.
