Expanding and Upgrading HiPath 3000 Nur für den internen Gebrauch
A31003-H3590-S100-7-7620, 06/2012
9-8 HiPath 3000/5000 V9, Service documentation
exup.fm
HiPath 3000Expanding
Rear panel (Figure 9-3)
● Line voltage connections (1 and 2)
– 1: Line output of the power plug of HiPath 3000
– 2: Line input
● S1: Switch FAN, not assigned
● F1 and F2: Fuse 2.5 A/T
● X1 and X2: Connection to HiPath 3550/HiPath 3350/HiPath 3500/HiPath 3300 (UPSC-D/
UPSC-DR)
● F3: Fuse for battery 16 A/T
● X3: Output for the battery to the external loads (HiPath 3000)
● X7: Output for the battery XBatt. (Powerbox Controller (PBC) < > battery connection)
● XBatt.: Input for X7 (battery < > Powerbox Controller (PBC) connection)
● 3: Switch for activating and deactivating the battery voltage
● F4: Fuse for the switch (battery voltage) 16 A/T

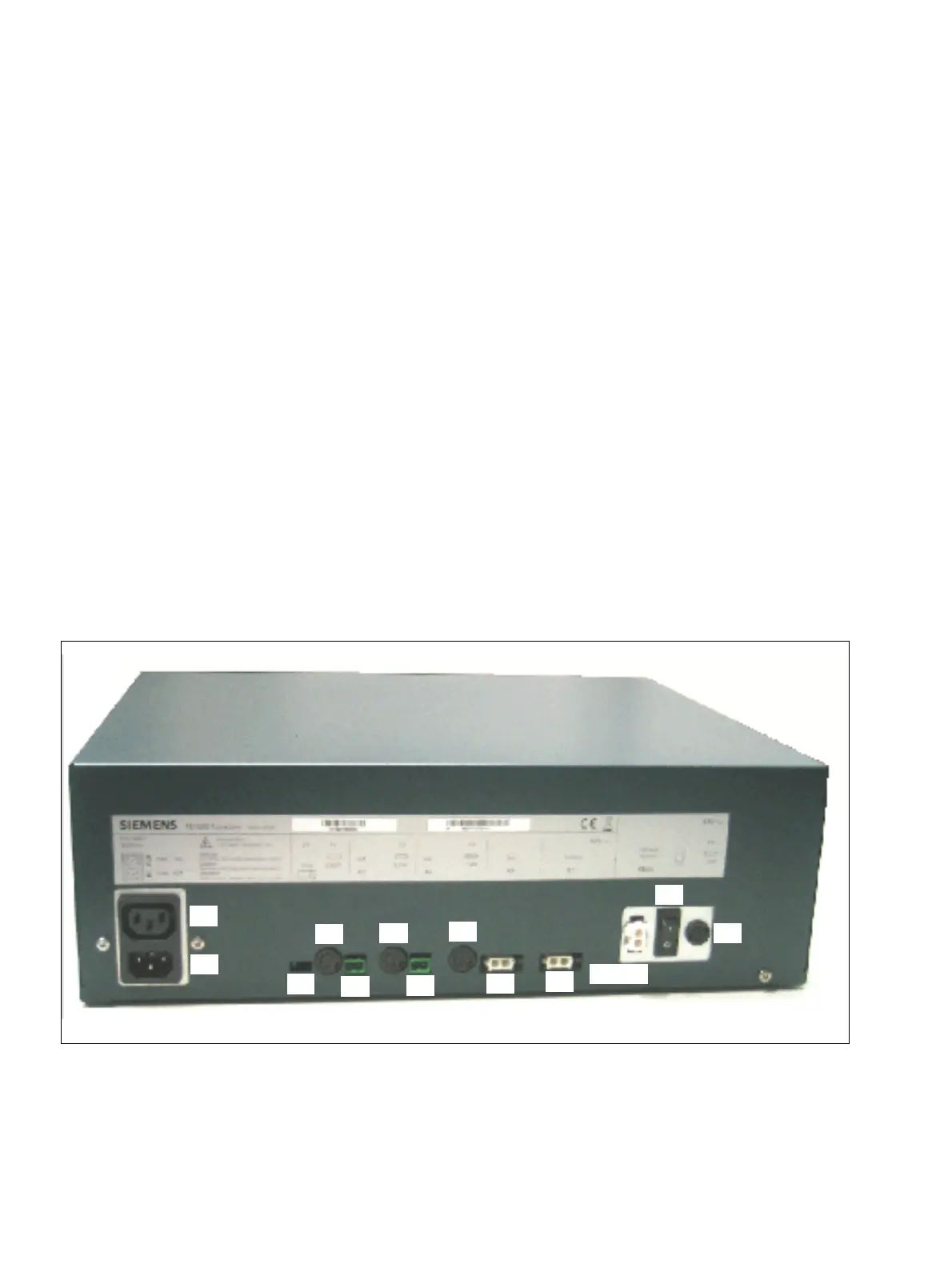

Figure 9-3 Back of the PB3000
1
X1
2
X2
X3
X7
3
S1
F1
F2
F3
F4
XBatt.
