HiPath 3000Expanding
● Connection cable for PB3000, with batteries but without LUNA2

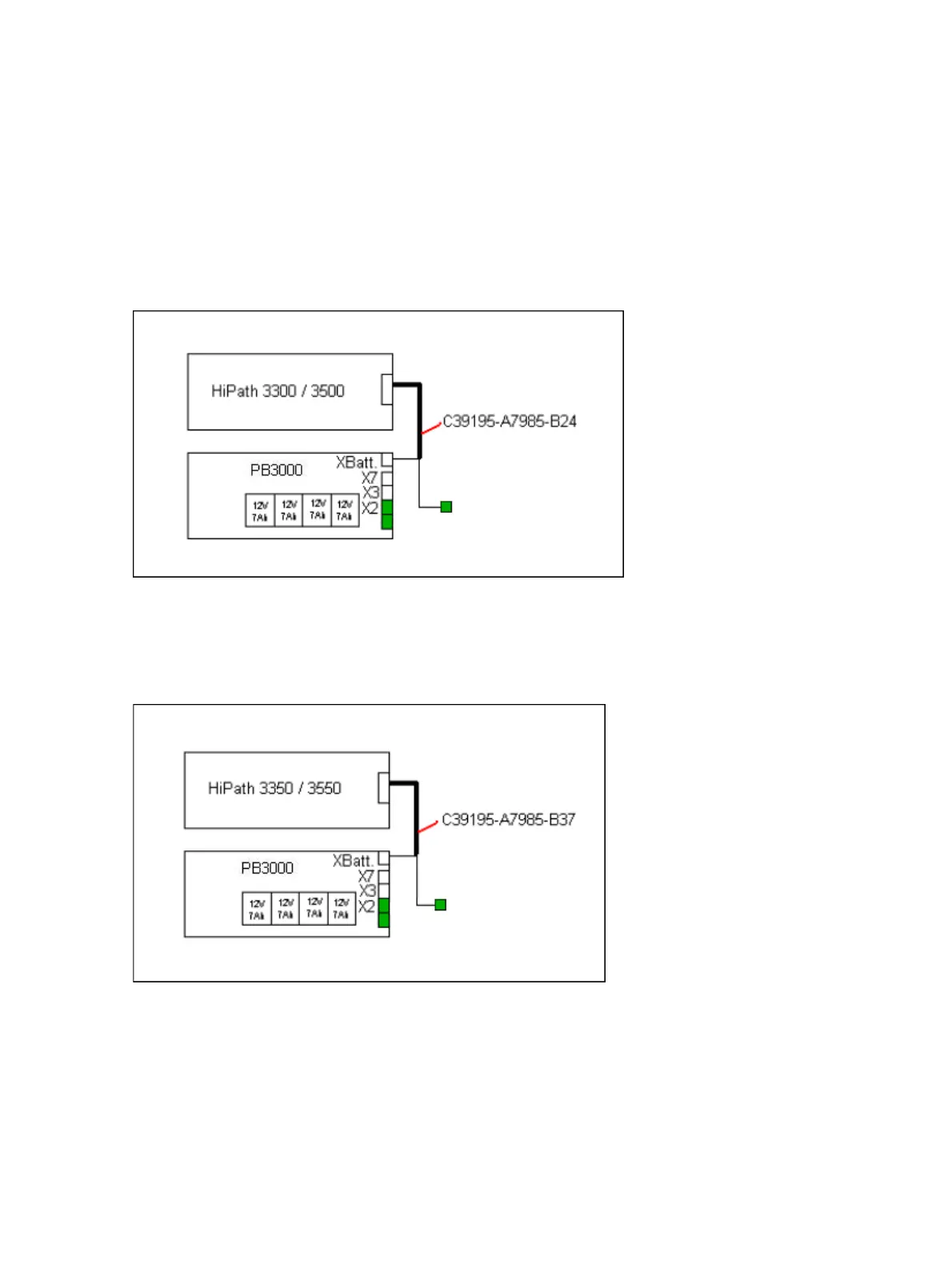

One of the following connection cables is used depending on the system:
– HiPath 3500, HiPath 3300: PB3000 is connected via connection cable C39195-A7985-
B24
Note: To avoid system errors and failures, connection cable C39195-A7985-B24 must
not be plugged in at the X2 jack on PB3000 (see figure below).
– HiPath 3550, HiPath 3350: PB3000 is connected via connection cable C39195-A7985-
B37
Note: To avoid system errors and failures, connection cable C39195-A7985-B37 must
not be plugged in at the X2 jack on PB3000 (see figure below).
leave unplugged
leave unplugged
