exup.fm

A31003-H3590-S100-7-7620, 06/2012

HiPath 3000/5000 V9, Service documentation

9-13

Nur für den internen Gebrauch Expanding and Upgrading HiPath 3000

HiPath 3000Expanding

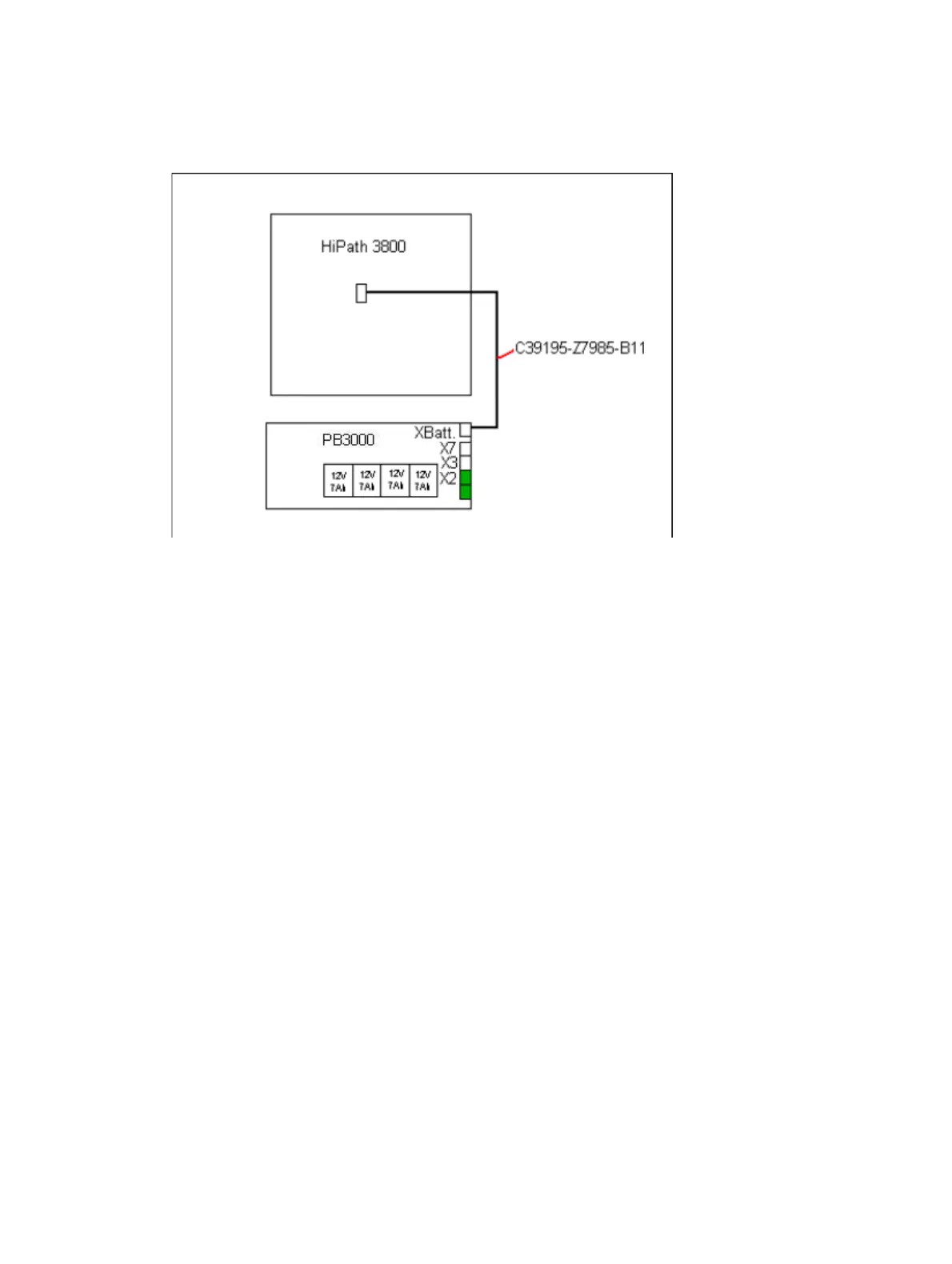

– HiPath 3800: PB3000 is connected via connection cable C39195-Z7985-B11
