Appendix
A.4 Parameterization using the BOP20
Drive functions
1054 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
Display
Meaning
S Is (bright) if at least one parameter was changed and the value was not transferred into the non-
volatile memory.
P Is lit (bright) if, for a parameter, the value only becomes effective after pressing the P key.
C Is light (bright) if at least one parameter was changed and the calculation for consistent data
management has still not been initiated.
Below, 6 digit
Displays, e.g. parameters, indices, faults and alarms.
Information on the keys

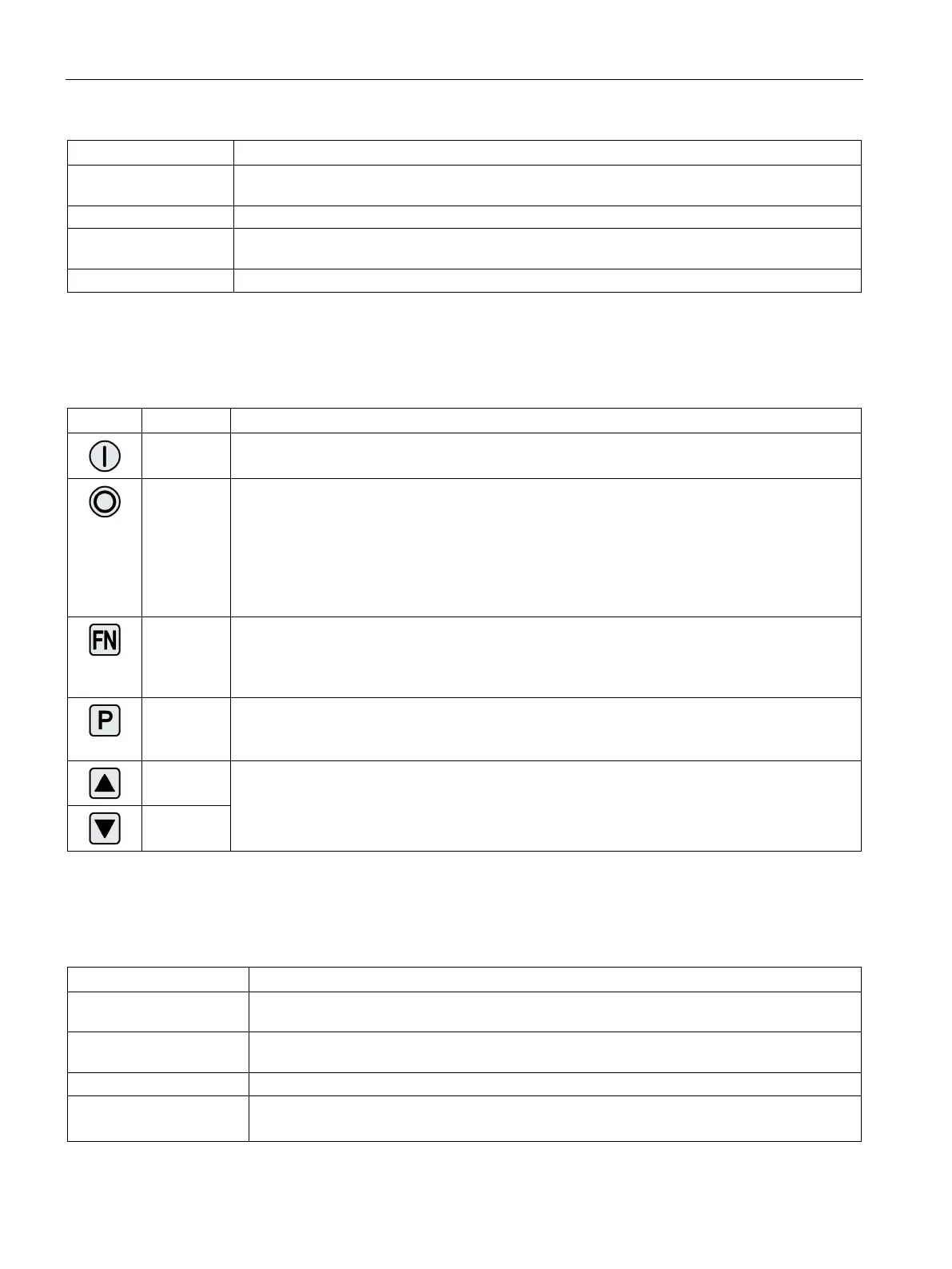

Table A- 2 Keys
Key
Name
Meaning
ON Powering up the drives for which the command "ON/OFF1" should come from the BOP.
Binector output r0019.0 is set using this key.
OFF Powering down the drives for which the commands "ON/OFF1", "OFF2" or "OFF3" should come
from the BOP.
The binector outputs r0019.0, .1 and .2 are simultaneously reset when this key is pressed. After
the key has been released, binector outputs r0019.1 and .2 are again set to a "1" signal.
Note
:
The effectiveness of these keys can be defined by appropriately parameterizing the BICO (e.g.
using these keys it is possible to simultaneously control all of the existing drives).
Functions The significance of this key depends on the actual display.
Note
:
The effectiveness of this key to acknowledge faults can be defined using the appropriate BiCo
parameterization.
Parameter The significance of this key depends on the actual display.
If this key is pressed for 3 s, the "Copy RAM to ROM" function is executed. The "S" displayed on
the BOP disappears.
Raise The significance of these keys is dependent on the actual display and is used to increase or
decrease values.
Lower
BOP20 functions
Table A- 3 Functions
Name
Description
Backlighting The backlighting can be set using p0007 in such a way that it switches itself off automatically
after the set time if no actions are carried out.
Changeover active drive From the BOP perspective the active drive is defined using p0008 or using the keys "FN" and
"Arrow up".
Units
The units are not displayed on the BOP.
Access level The access level for the BOP is defined using p0003.
The higher the access level, the more parameters can be selected using the BOP.
