Appendix
A.4
Paramet
erizat
ion usi
ng
the BOP
20
Drive functions
Functi
on Manu
al
,
11/2017
,
6SL3097
-
4AB00
-
0BP5
1059
Example: Changing a paramet
er
Precondit
ion: The
appropr
iate acces
s leve
l is set
(for this p
articu
lar examp
le, p00
03 = 3).

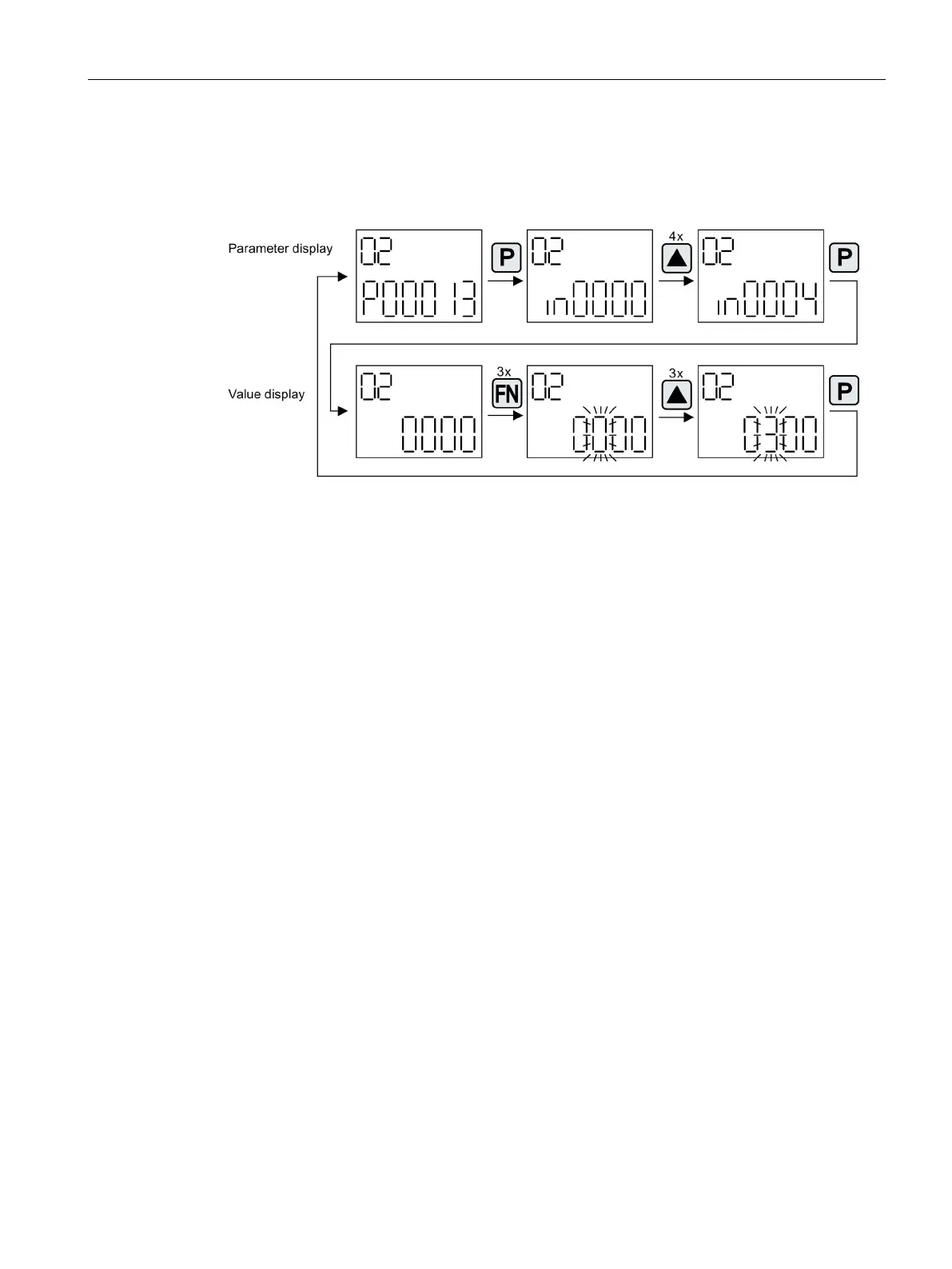

Figure
A-
11
Example: C
hanging
p00
13[4] from
0 to 300
1058
1060
