Appendix
A.4 Parameterization using the BOP20
Drive functions
1060 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
Example: Changing binector and connector input parameters
For the binector input p0840[0] (OFF1) of drive object 2 binector output r0019.0 of the
Control Unit (drive object 1) is interconnected.

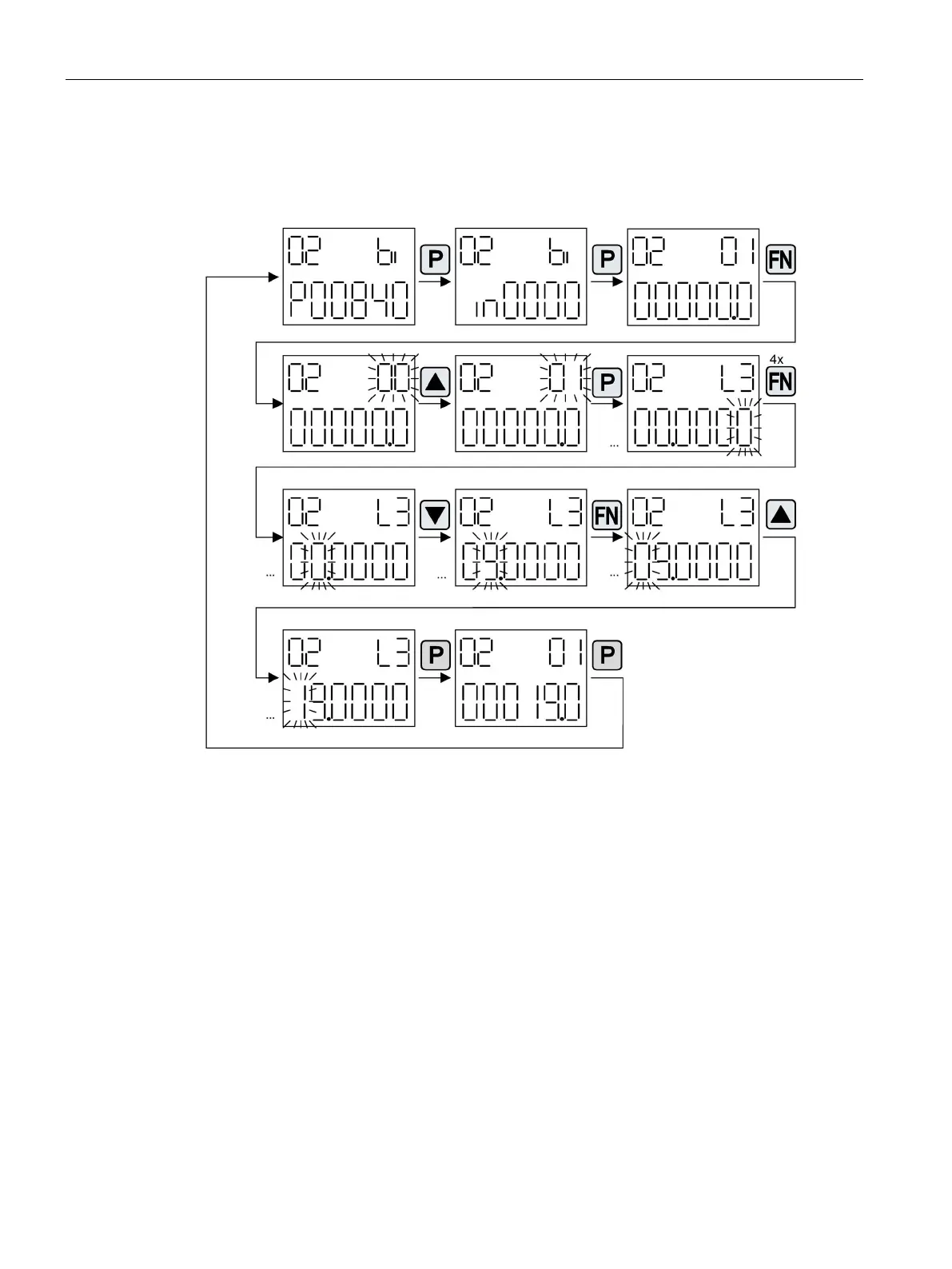

Figure A-12 Example: Changing indexed binector parameters
