Simrad EK80 Installation Manual

394149/C
107

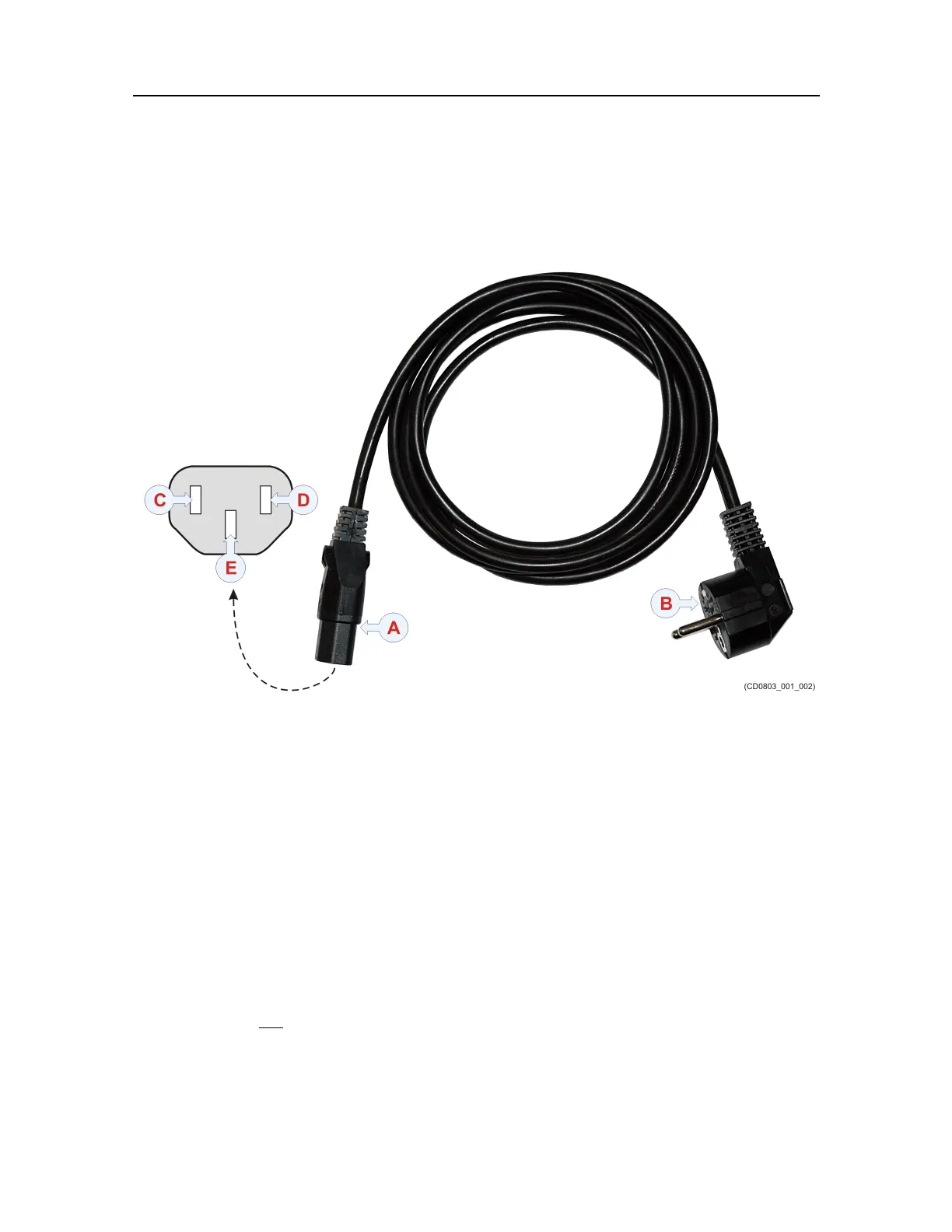

ACmainspowercableusingIECC13inlinesocket
Thisisacommercialpowercablenormallyusedfor230V acmainspower.Theinlinesocket
andplugcomplytotheIEC60320standard.
AIEC13linesocket-maybettedwithalockingdevice
BCEE7/7malepowerplug
CLive(normallyidentiedwithBlueinsulation)
DNeutral(normallyidentiedwithBrowninsulation)
EGround(normallyidentiedwithYelloworYellow/Greeninsulation)
AstandardcommercialACmainscableisused.
ThepowercableisnormallyterminatedwithanfemaleIECC13inlinesocket.TheAC
mainsendisterminatedinanACconnectorsuitableforthelocalstandardand/orthe
outputsocketsonaUninterruptiblePowerSupply(UPS)unit.Ifthisisnotthecase,you
mustreplacetheACconnector.
Thetypicalcablelengthisbetween1,5and2meters.Ifthisistooshortyoumustusean
extensioncable(notrecommended),mountanewpoweroutletwithinrange,ormakeyour
ownpowercablewithsufcientlength.IfyouuseanUninterruptiblePowerSupply(UPS),
youcanalsomovetheUPSunittoadifferentlocationwithinrange.
Cablelayoutandinterconnections
