394149/C

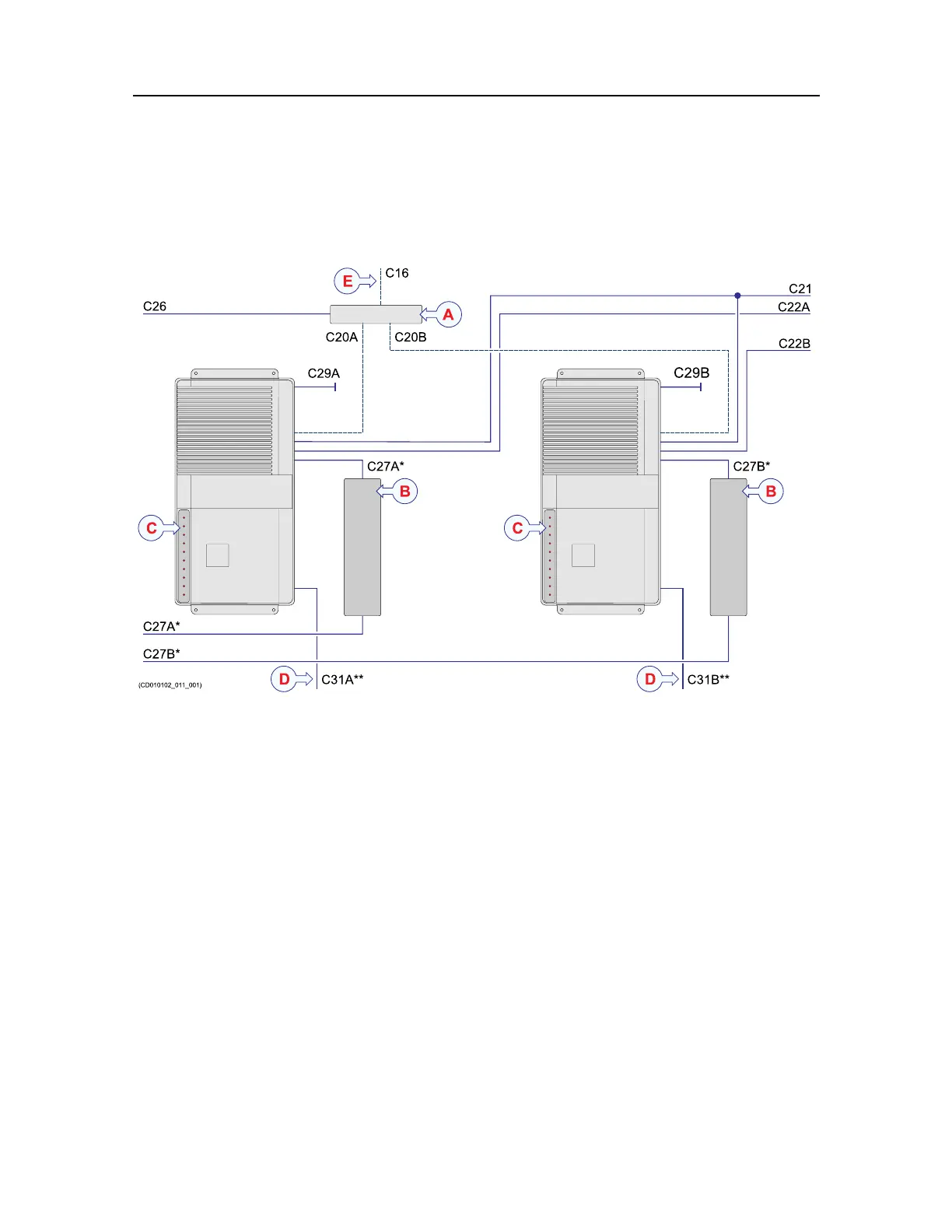

WideBandTransceiver(WBT)cableplan

TheWideBandTransceiver(WBT)cablesincludethoseusedtoconnecttheEK80

transceiver(s)toACmainspower,andtothetransducer(s).

(CD010102_01 1_001)

C16

C20A

C27A*

C31A**

C29A

C29B

C21

C22A

C22B

C31B**

C27B*

C26

C20B

C27B*

AEthernetswitch

BPowerSupply

CWideBandTransceiver(WBT)

DTransducercables

EEthernetcommunicationwiththeProcessorUnit

Dependingontheoperationalrequirements,oneormoreWideBandTransceiver(WBT)

unitsmaybeusedinthecompleteEK80system.IfonlyoneWideBandTransceiver(WBT)

isused,theEthernetswitchisnotrequired.

Cablesidentiedwithanasterisk(*)aresystemcables.Theseareprovidedwiththe

standardEK80delivery.Onehydrophonecable(markedwithadualasterisk(**))is

providedwitheachTransducer.

Cablelayoutandinterconnections
