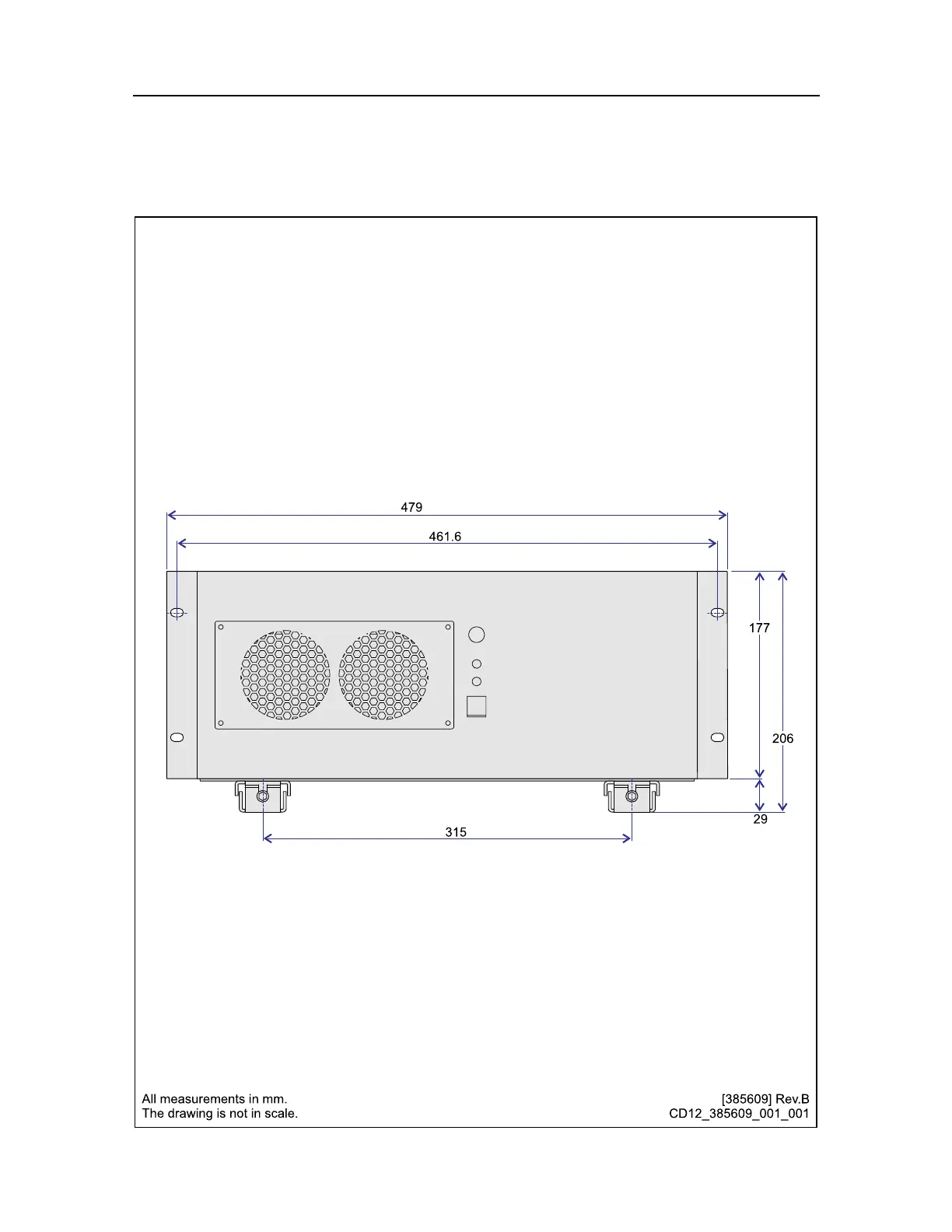

Simrad EK80 - 385609 Processor Unit Outline Dimensions

To Next Page

To Previous Page

206

394149/C

385609ProcessorUnitoutlinedimensions

479

461.6

315

177

206

Allmeasurementsinmm.

Thedrawingisnotinscale.

[385609]Rev .B

CD12_385609_001_001
