Simrad EK80 Installation Manual

394149/C
117

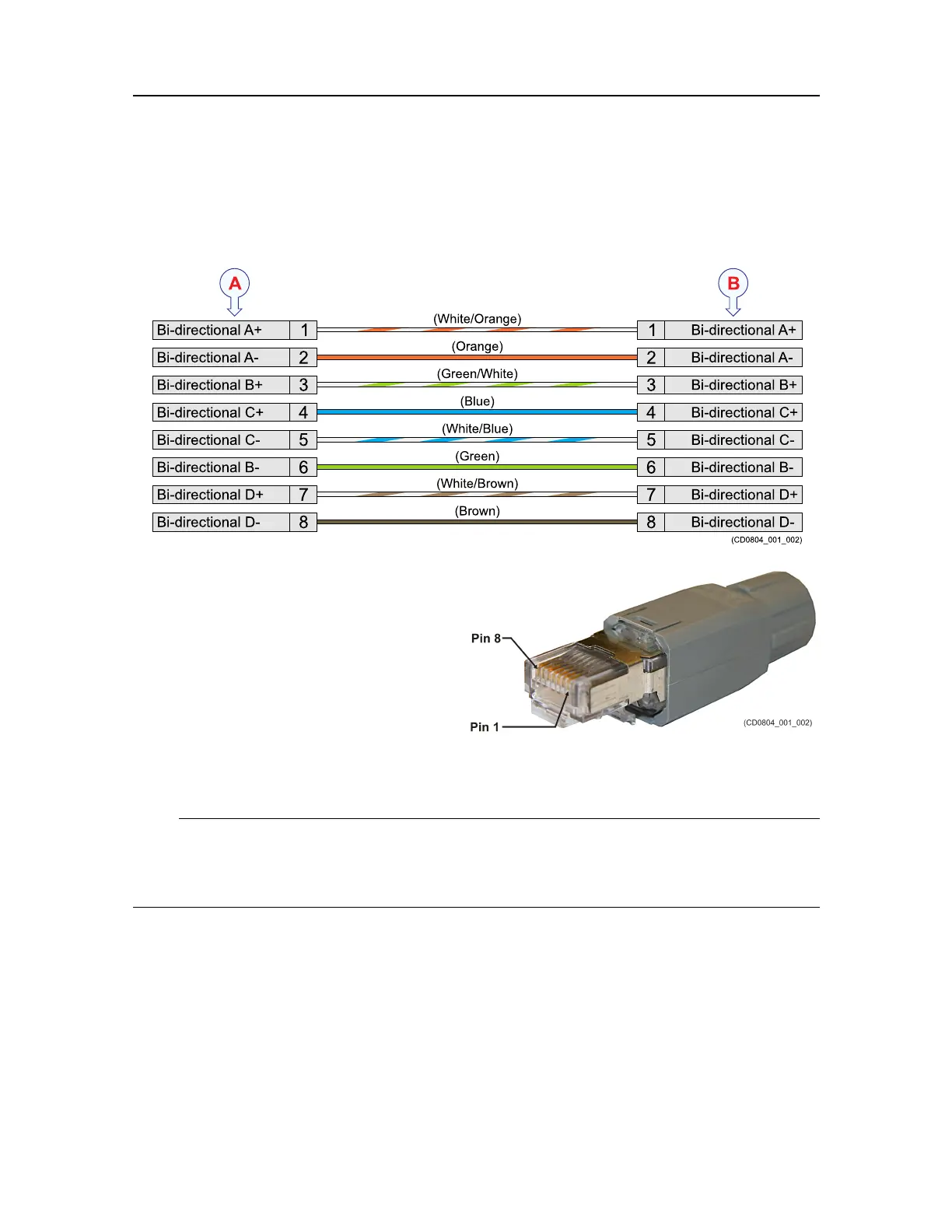

RJ45HighspeedEthernetcable(1000Base-t)
MosthighspeeddataconnectionsbetweentheEK80systemunitsaremadeusingEthernet
cables.ThesecablesmayalsobeusedbetweentheEK80andperipheralequipment.
1 1
Bi-directional A+
Bi-directionalC+
Bi-directionalC-
Bi-directionalB+
Bi-directionalB-
Bi-directionalD-
Bi-directionalD+
Bi-directional A-
Bi-directional A+
Bi-directionalC+
Bi-directionalC-
Bi-directionalB+
Bi-directionalB-
Bi-directionalD-
Bi-directionalD+
Bi-directional A-
3 3
2 2
4 4
5 5
7 7
6 6
8 8
(Green/White)
(Green)
(White/Orange)
(Blue)
(White/Blue)
(Orange)
(White/Brown)
(Brown)
(CD0804_001_002)
ALocalEthernetconnection
BConnectiononexternalnetwork
device
Ethernetcablesareavailable
commerciallyindifferentlengths,
coloursandcategories.Normally,
CAT-5EandCA T-6cablesareused
inlocalareanetworkswithbandwidths
exceeding100Mbit.
Note
ItisveryimportantthathighqualityEthernetcablesareused.YoumustuseCAT-5ESTP
(ShieldedTwistedPair)qualityorbetter.Usingcableswithlowerbandwidthcapacity
willreducetheEK80performance.
Minimumcablerequirements
Notapplicable.Thisisacommercialcable.
Cablelayoutandinterconnections
