110

394149/C

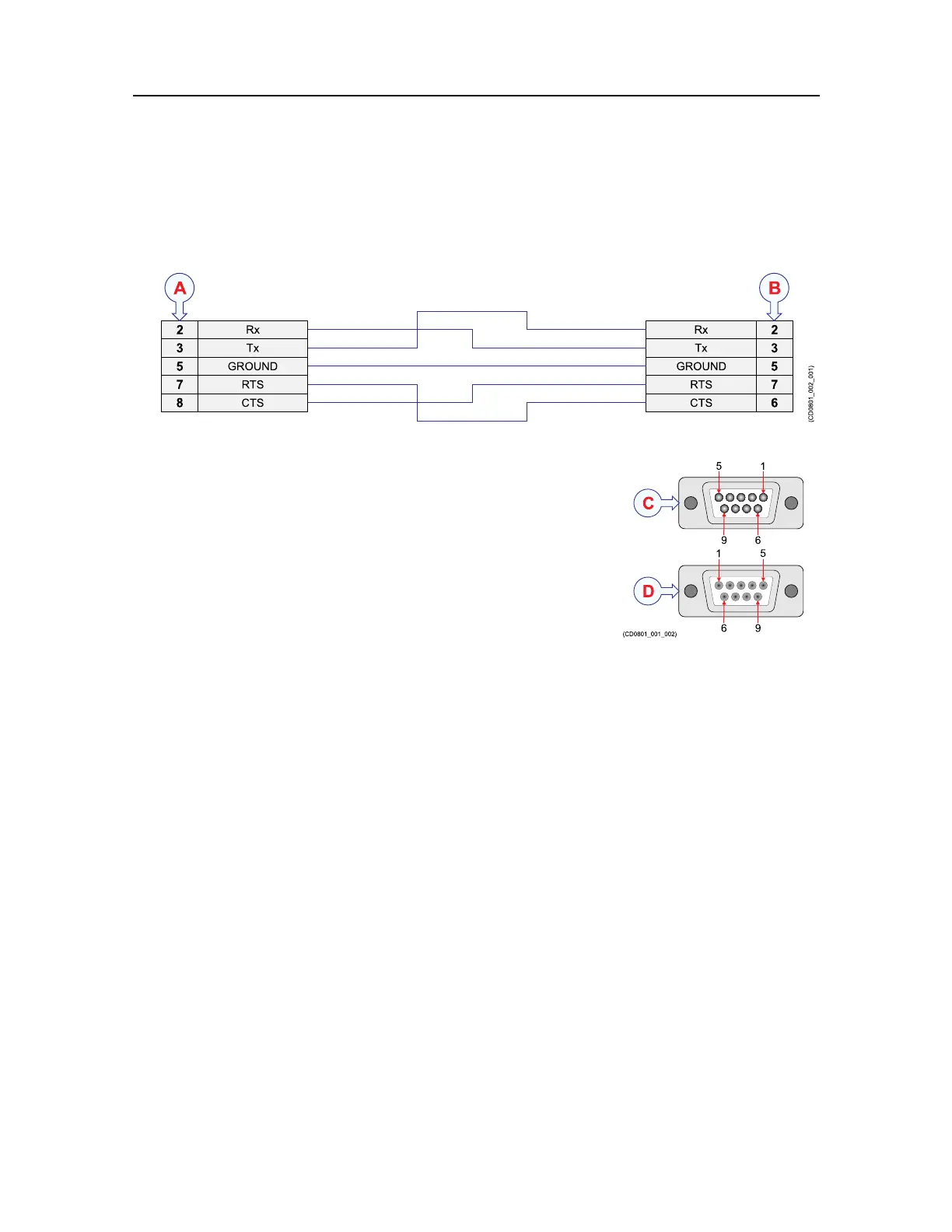

RS-232seriallineconnectionusingvewires

AnRS-232seriallineconnectionusingve(5)wiresandNMEAtelegramsisacommon

waytoconnecttheEK80toexternaldevices.

(CD0801_002_001)

Rx Rx

Tx Tx

GROUND GROUND

RTS RTS

CTS CTS

9 6

6 9

(CD0801_001_002)

ALocalconnection

BConnectiononperipheraldevice

CFemale9–pinD-connector

DMale9–pinD-connector

Unlessotherwisespecied,theseriallinecablemustbe

providedbytheinstallationshipyard.

Notethatthiscabledoesnotsupportallthesignalsinthe

standardRS-232specication.

Minimumcablerequirements

•Conductors:2x4x0.5mm²

•Screen:Overallbraided

•Voltage:60V

•Maximumouterdiameter:Denedbytheplugs

Ifyouneedtoinstallaverylongseriallinecable,increasethecrosssection.

Relatedtopics

Aboutseriallines,page135

ConnectingexternaldevicestotheProcessorUnitusingserialinterfaces,page94
