Simrad EK80 - 400930 WBT Cabinet Outline Dimensions

To Next Page

To Previous Page

210

394149/C

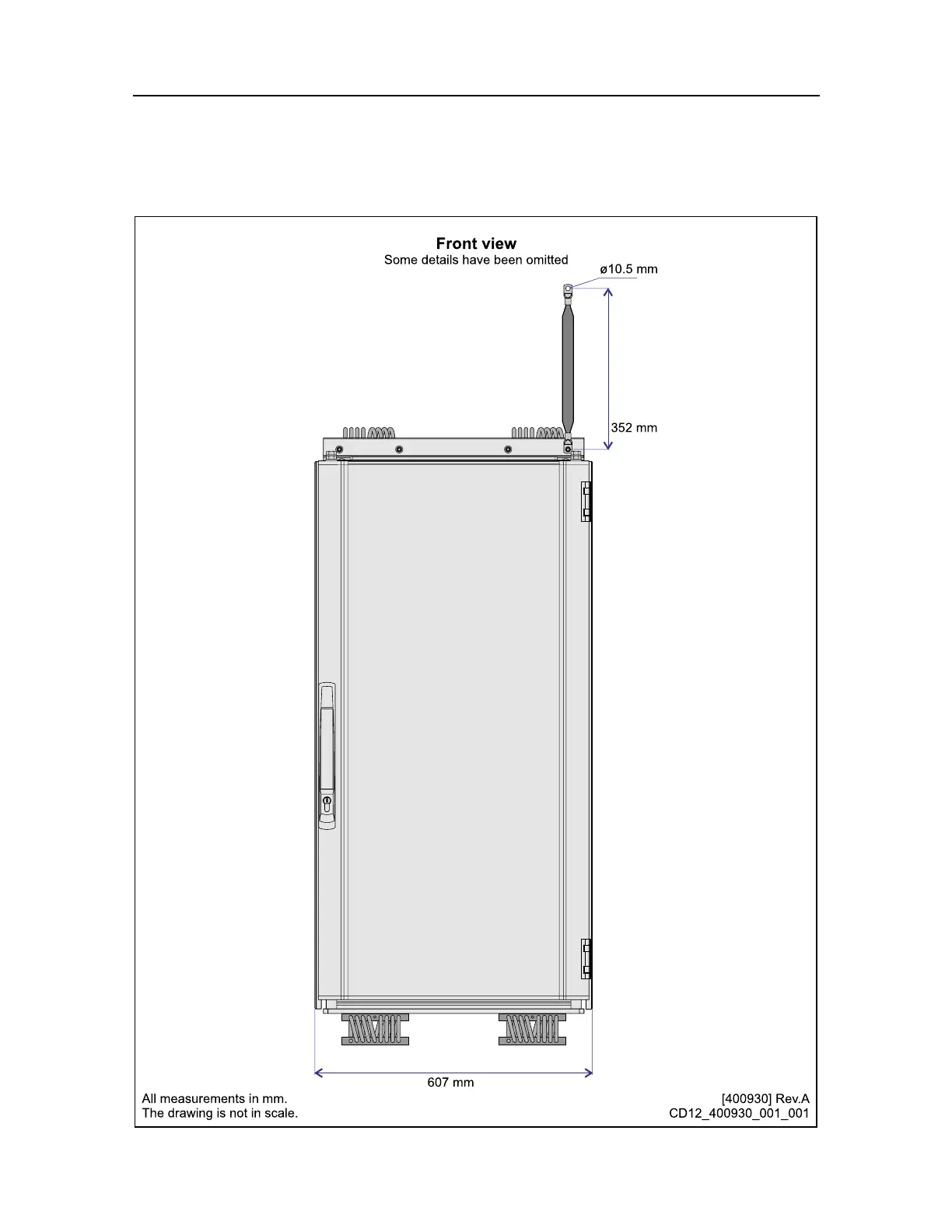

400930WBTCabinetoutlinedimensions

352mm

607mm

ø10.5mm

Allmeasurementsinmm.

Thedrawingisnotinscale.

[400930]Rev .A

CD12_400930_001_001

Frontview

Somedetailshavebeenomitted

SimradEK80
