Simrad EK80 Installation Manual

112
394149/C

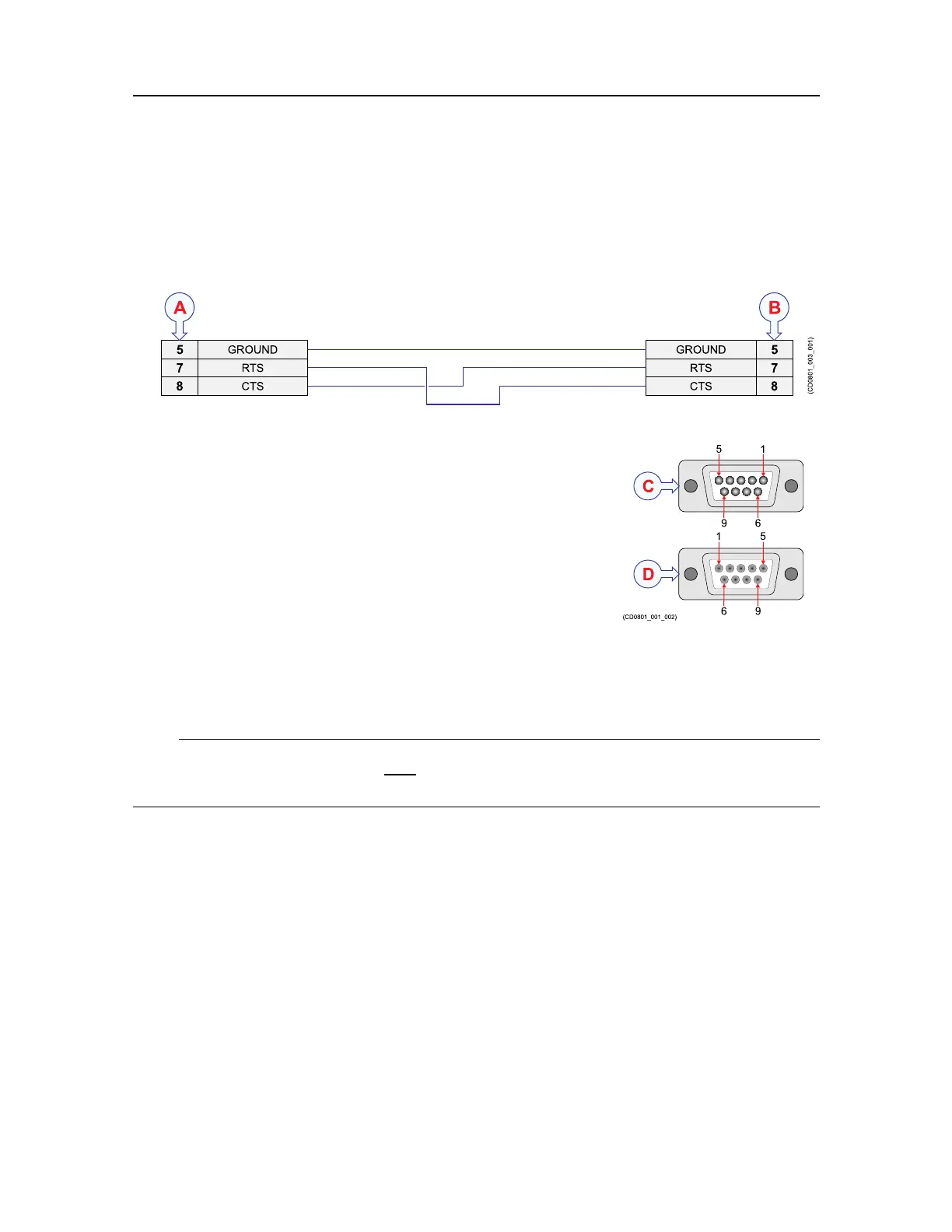

RS-232usedassynchronizationtrigger(inputoroutput)
AnRS-232seriallineconnectionusingtheRequestToSend(RTS)andClearToSend
(CTS)signalsiscommonwaytoconnecttheEK80toexternaldevicesforsynchronization
purposes.
5
7
8
GROUND
CTS
5
7
8
RTSRTS
CTS
GROUND
(CD0801_003_001)
9 6
1
5
5
1
6 9
(CD0801_001_002)
ALocalconnection
BConnectiononperipheraldevice
CFemale9–pinD-connector
DMale9–pinD-connector
ThiscabletakesthecontrolsignalsonaRS-232serial
line,andusestheseasanexternaltrigger.Itprovides
interfacewithanyperipheralunitthatrequiresorcontrols
transmit/receivesynchronization.
NotethatthiscabledoesnotsupportallthesignalsinthestandardRS-232specication.
Unlessotherwisespecied,theseriallinecablemustbeprovidedbytheinstallationshipyard.
Note
ThissynchronizationmethodcanonlybeusedwithRS-232communication.Youcanonly
connecttwosystemstogether .
Minimumcablerequirements
•Conductors:2x4x0.5mm²
•Screen:Overallbraided
•Voltage:60V
•Maximumouterdiameter:Denedbytheplugs
Ifyouneedtoinstallaverylongseriallinecable,increasethecrosssection.
