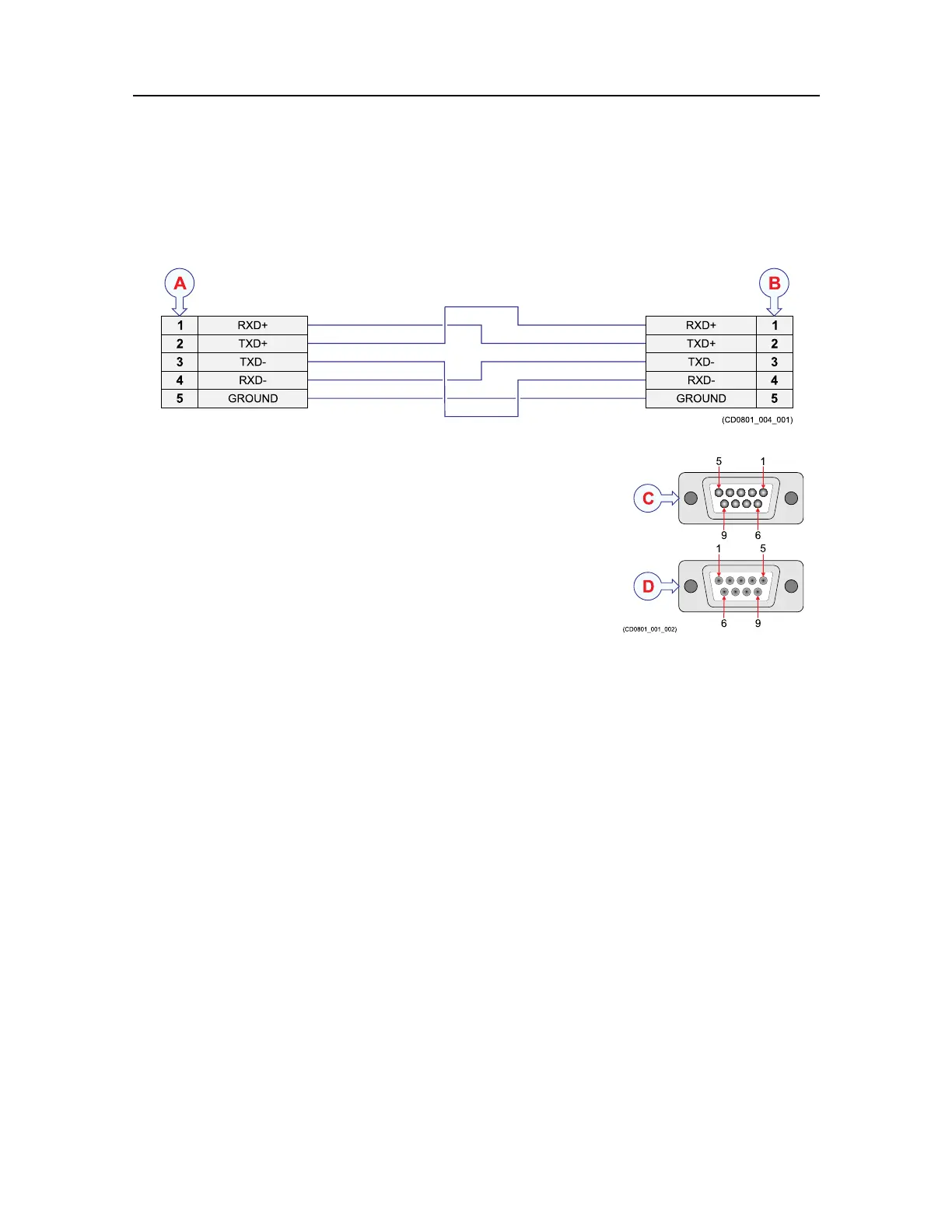

RS-422seriallineconnectionusingvewires

AnRS-422seriallineconnectioncantransmitdataatratesashighas10millionbitsper

second,andmaybesentoncablesaslongas1500meters.

4 4

1 1

TXD+ TXD+

RXD+ RXD+

GROUND

TXD- TXD-

RXD- RXD-

GROUND

(CD0801_004_001)

9 6

6 9

(CD0801_001_002)

ALocalconnection

BConnectiononperipheraldevice(typicalexample)

Notethatthepinnumbersonyourperipheraldevice

maybedifferentfromthoseshownhere!

CFemale9–pinD-connector

DMale9–pinD-connector

Unlessotherwisespecied,theseriallinecablemustbe

providedbytheinstallationshipyard.

Minimumcablerequirements

•Conductors:2x4x0.5mm²

•Screen:Overallbraided

•Voltage:60V

•Maximumouterdiameter:Denedbytheplugs

Ifyouneedtoinstallaverylongseriallinecable,increasethecrosssection.
