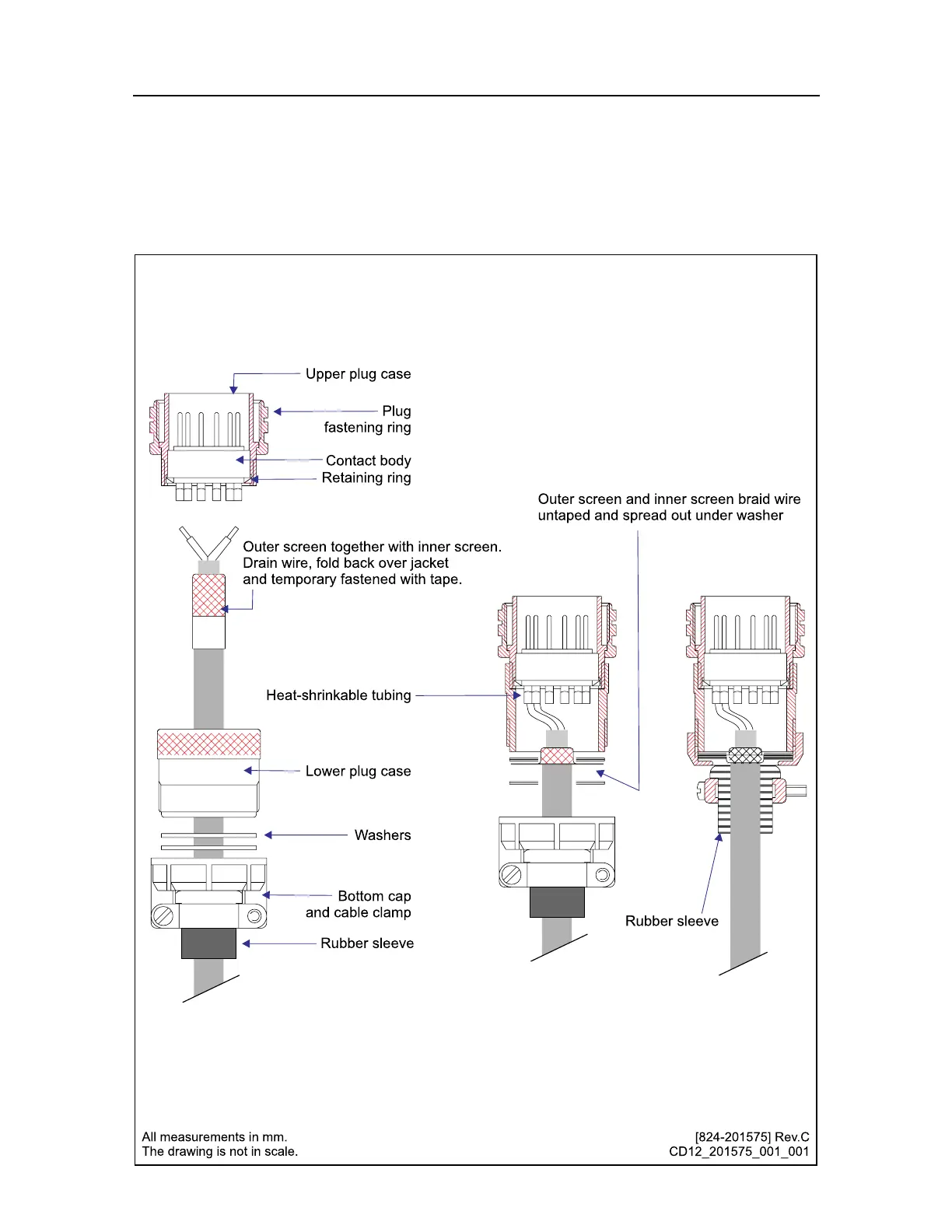

214
394149/C
201575
T
r
ansducer
connector
assembly
and
wiring
Rubber
sleeve
Rubber
sleeve
Retaining
ring
Contact
body
Plug
fastening
ring
Upper
plug
case
Bottom
cap
and
cable
clamp
W
ashers
Heat-shrinkable
tubing
Lower
plug
case
Outer
screen
together
with
inner
screen.
Drain
wire,
fold
back
over
jacket
and
temporary
fastened
with
tape.
Outer
screen
and
inner
screen
braid
wire
u
ntaped
and
spread
out
under
washer
All
measurements
in
mm.
The
drawing
is
not
in
scale.
[824-201575]
Rev
.C
CD12_201575_001_001
Simrad
EK80
215
217
Table of Contents
Table of Contents
5
About this Manual
11
Simrad Ek80
13
Important
14
System Description
15
Key Features
17
System Diagram
18
Main System Units
20
Display Description
20
Processor Unit Description
21
Ethernet Switch
22
Wide Band Transceiver (WBT) Description
22
Transducers
23
Split Beam, Wideband and Depth Rated Transducers
25
Split Beam Transducers
25
Wideband Transducers
26
Depth Rated Transducers
27
Physical Dimensions Versus Beam Opening
28
Scope of Supply
29
Basic Items Provided with a Standard Delivery
29
Additional Required Items
30
Additional Optional Items
32
General Safety Rules
35
Installation Requirements
36
Supply Power Requirements
36
Uninterruptible Power Supply (UPS) Requirements
36
Cables and Wiring Requirements
37
Compass Deviation Requirements
37
Noise Sources
37
Dry Docking Requirements
38
Requirement for Classification Approval
38
Network Security
39
Support Information
40
Preparations
42
Installation Summary
43
About Installation Drawings
44
Tools, Equipment and Consumables Required for EK80 Installation
45
Personnel Qualifications
46
Where to Install the Transducer
47
Introduction
47
Mount the Transducer Deep
47
Avoid Protruding Objects
48
Stay Far Away from the Propellers
48
Choose a Position Far Away from the Bow Thruster(S)
49
Summary and General Recommendations
49
Acoustic Noise
50
Contributing Factors
50
Self Noise
52
Ambient Noise
54
Fishing Gear Noise
55
Electrical Noise
55
Some Means to Reduce Acoustic Noise
55
Installing the Ek80 Hardware Units
58
Installing the Wide Band Transceiver (WBT) Using the Integrated Brackets
59
Installing the Wide Band Transceiver (WBT) in a 19" Rack
61
Installing the Wide Band Transceiver (WBT) Power Supply
63
Installing the Display
65
Installing a Commercial Computer
66
Installing the Enix Processor Unit
68
Mounting the WBT Cabinet
71
Mounting the Drawers in the WBT Cabinet
74
Installing the Transducer(S)
76
Cable Layout and Interconnections
78
Read this First
79
Cable Plans
80
About the Cable Plans
80
Topside Cable Plan
81
Wide Band Transceiver (WBT) Cable Plan
83
List of EK80 Cables
84
Cable Procedures
86
Prerequisites for Cable Installation
86
General Requirements for Cable Installations
87
Connecting AC Mains and Ground to the Processor Unit
88
Connecting Power and Ground to the Wide Band Transceiver (WBT)
89
Connecting Battery Power to the Wide Band Transceiver
90
Connecting AC Mains and Ground to the Display
91
Connecting the Video Cable from the Processor Unit to the Display
92
Connecting the Ethernet Cable from the Wide Band Transceiver (WBT) to the Processor Unit
94
Connecting External Devices to the Processor Unit Using Serial Interfaces
96
Connecting a Synchronization Cable to the Processor Unit Using an RS-232 Serial Interfaces
97
Connecting External Devices to the Processor Unit Using Ethernet Interfaces
98
Connecting the Transducer to the Wide Band Transceiver (WBT)
99
Splicing the Transducer Cable
101
Processor Unit Graphic Adapter
102
Moxa CP114EL-I Serial Line Adapter
105
Moxa CP114EL-I Overview
105
Moxa CP114EL-I Connectors
106
Using a Steel Conduit to Protect the Transducer Cable
107
Cable Drawings and Specifications
108
AC Mains Power Cable Using IEC C13 Inline Socket
109
RS-232 Serial Line Connection Using Three Wires
111
RS-232 Serial Line Connection Using Five Wires
112
Serial Line Connection Using Five Wires
113
Used as Synchronization Trigger (Input or Output)
114
RS-485 Serial Line Connection Using Two or Four Wires
116
Moxa CP114EL-I Serial Line Adapter
117
RJ45 High Speed Ethernet Cable (1000Base-T)
119
Battery Power Cable
120
Single Beam Low Power Transducer Connection to a Circular Transducer Socket
120
Split Beam Transducer Connection to a Circular Socket
122
Split Beam Transducer to Single Beam Output on GPT Transducer Socket
123
Simrad 12-16/60 Connection to a Circular Transducer Socket
125
Simrad ES18 Connection to a Circular Transducer Socket
126
Simrad ES38-7 Connection to a Circular Transducer Socket
127
Simrad ES30-10 Connection to a Circular Transducer Socket
128
Simrad ES38-18/200-18C Connection to a Circular Transducer Socket
130
Simrad 50/200 Combi C Connection to a Circular Transducer Socket
131
Simrad ES70-18CD Connection to a Circular Transducer Socket
133
Burton Underwater Connectors on Split Beam Transducers for Deep Water
135
About Serial Lines
137
Basic Cable Requirements
140
Cable Trays
140
Radio Frequency Interference
141
Physical Protection of Cables
141
Grounding of System Cables
142
Cable Connections and Terminations
142
Cable Identification
143
Cable Glands and Termination Procedures
143
Setting to Work
148
Setting to Work Summary
149
Verifying that the EK80 Is Ready for Operational Use
150
Verifying that Operational Power Is Correct
150
Verifying that All Cables Are Properly Connected
151
Visual Inspection of the Display
152
Visual Inspection of the Processor Unit
154
Visual Inspection of the Wide Band Transceiver (WBT)
155
Powering up the EK80 for the First Time
157
Setting up Summary
157
Installing the EK80 Operational Software
159
Powering up the EK80 to Passive Mode
160
Obtaining and Installing the Software License
161
Defining the IP Address on the Processor Unit Network Adapter for Communication with the Wide Band Transceiver (WBT)
163
Installing One or more Transducers
164
Installing Transceiver Channels
166
Adjusting the Screen Resolution
168
Configuring the EK80 for Operational Use
169
Selecting Measurement Units
169
Defining the File and Folder Settings for Raw Data Recording
170
Interfacing Peripheral Equipment
171
Setting up the Input from a Navigation System
171
Setting up the Input from a Motion Reference Unit (MRU)
175
Setting up the Input from a Sound Speed Sensor
178
Setting up a Serial Line for Annotation Input
180
Setting up Depth Output to an External System
182
Exporting Sensor Data to a Peripheral System
185
Setting up the EK80 in a Synchronized System
188
Test Procedures
191
Starting the EK80 Wide Band Scientific Echo Sounder
192
Measuring Noise in Passive Mode
193
Testing the Synchronization Interface
195
Testing the Interfaces to External Devices
196
Reading the Transceiver Hardware and Software Versions
197
Calibrating the EK80 Wide Band Scientific Echo Sounder
199
Making a Noise/Speed Curve to Determine Vessel Noise
200
Powering off the EK80
202
Installation Remarks
203
Drawing File
204
About the Drawings in the Drawing File
205
388697 Wide Band Transceiver (WBT) Outline Dimensions
206
385609 Processor Unit Outline Dimensions
208
400930 WBT Cabinet Outline Dimensions
212
201575 Transducer Connector Assembly and Wiring
216
Technical Specifications
217
Introduction to Technical Specifications
218
Interface Specifications
218
Weight and Outline Dimensions
221
Power Requirements
223
Environmental Specifications
224
Compass Safe Distance
225
Minimum Computer Requirements
226
Minimum Technical Requirements for Display
227
Equipment Handling
229
Transporting Kongsberg Maritime Equipment
230
Lifting Units and Transportation Boxes
231
Inspection of Units and Transportation Boxes after Arrival
232
Specifications for Storage Prior to Installation or Use
233
Unpacking Instructions
235
Unpacking Standard Parts and Units
235
Unpacking Mechanical Units
237
Unpacking Electronic and Electromechanical Units
238
Unpacking Transducers
239
Specifications for Storage after Unpacking
240
Packing Instructions for Storage or Shipping
241
Storage after Use
242
Cleaning an Electronic Cabinet or Unit
243
Cleaning a Mechanical or Electromechanical Unit
244
Handling Instructions for Printed Circuit Boards and Electronic Modules
245
Circuit Board Unpacking and Handling
245
Returning a Printed Circuit Board or an Electronic Module to Kongsberg Maritime
247
About Electrostatic Discharge (ESD)
248
Disposal of Old Products
250
