Name: Simrad EK80
Brand: Simrad
Rating: 5 (1 reviews)

To Next Page

To Previous Page

394149/C

213

ø6.5

131

+/-0.1

345

+/-0.1

476

+/-0.1

500

+/-0.1

369

+/-0.1

131

+/-0.1

475

Allmeasurementsinmm.

Thedrawingisnotinscale.

[400930]Rev .A

CD12_400930_001_004

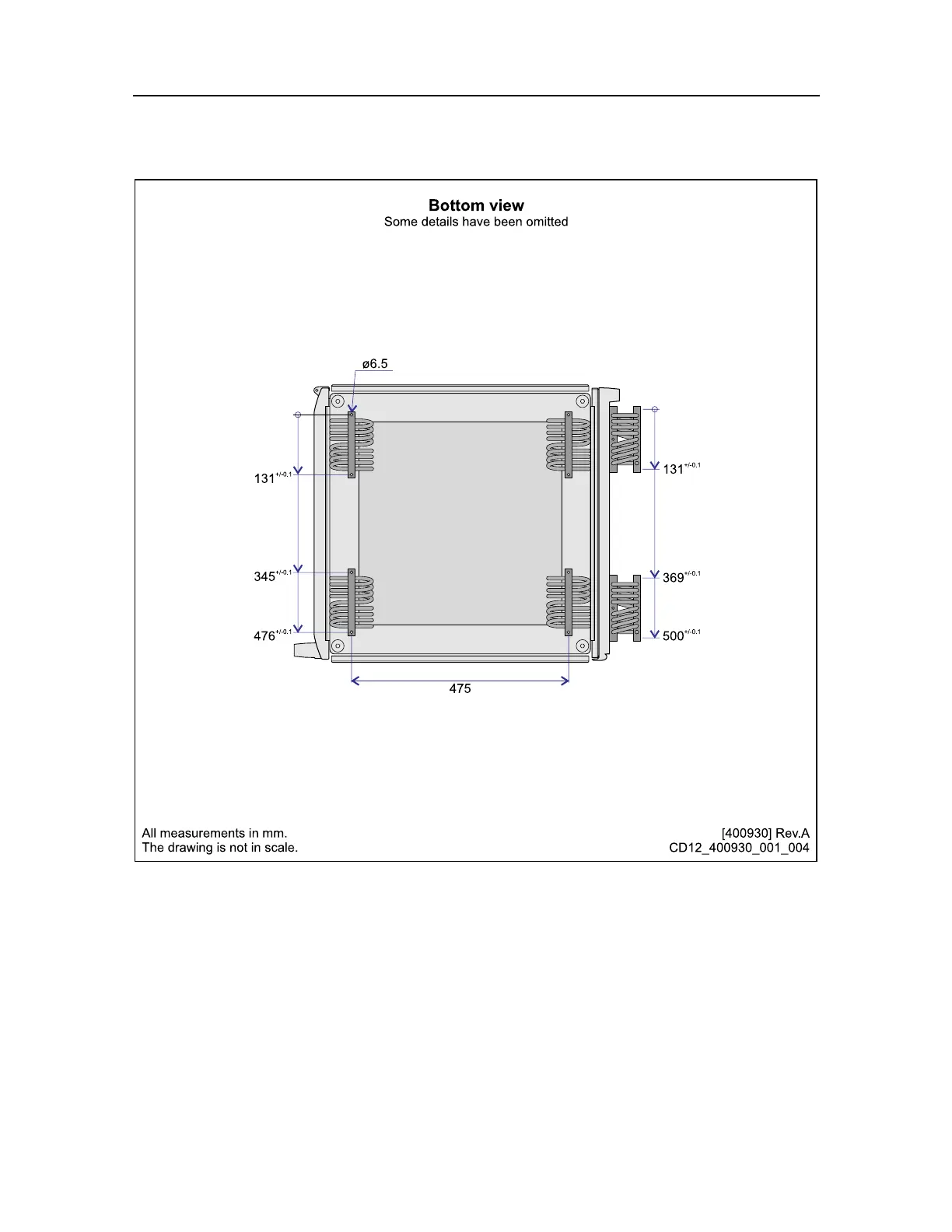

Bottomview

Somedetailshavebeenomitted
