Simrad EK80 - Page 209

To Next Page

To Previous Page

394149/C

207

427

385

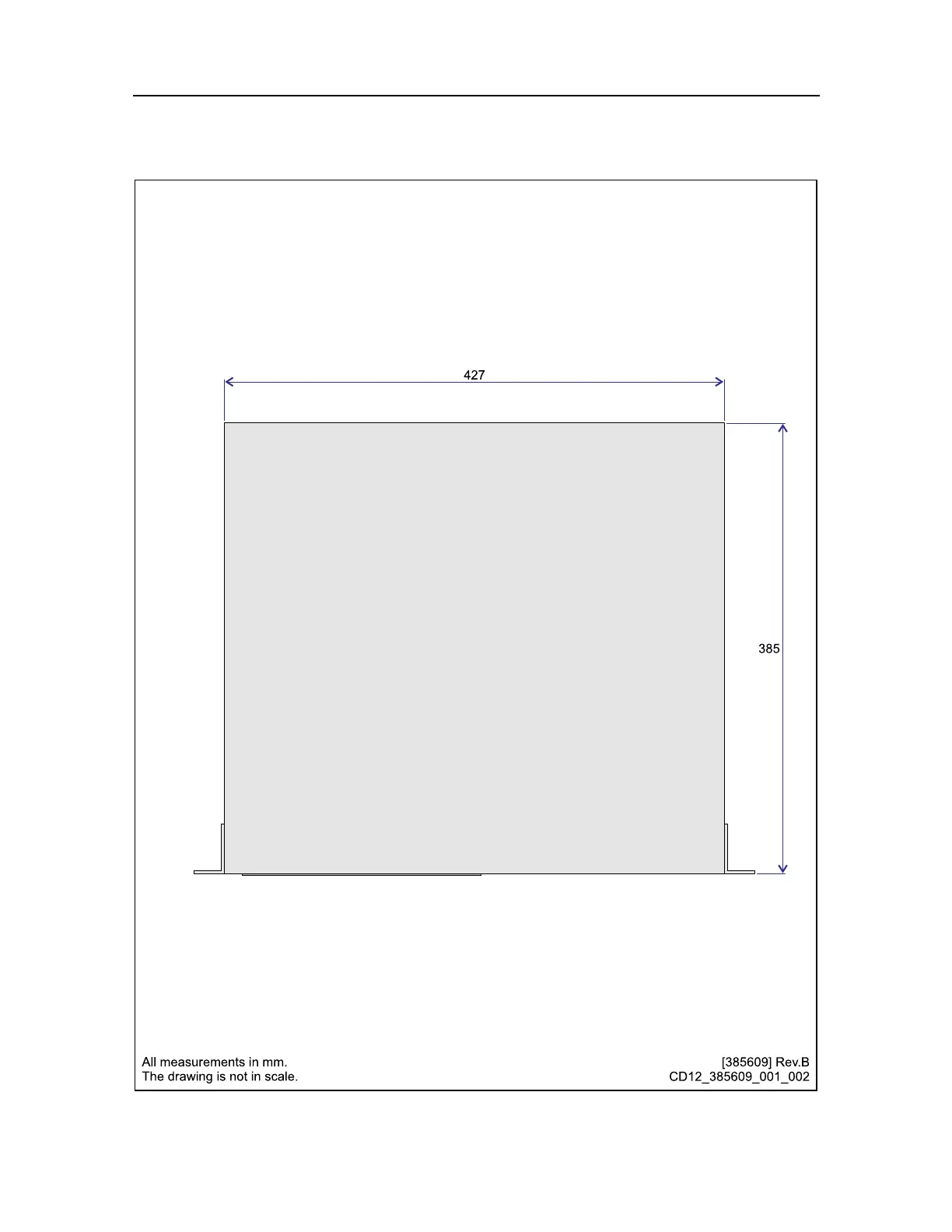

Allmeasurementsinmm.

Thedrawingisnotinscale.

[385609]Rev .B

CD12_385609_001_002

Drawingle
