394149/C

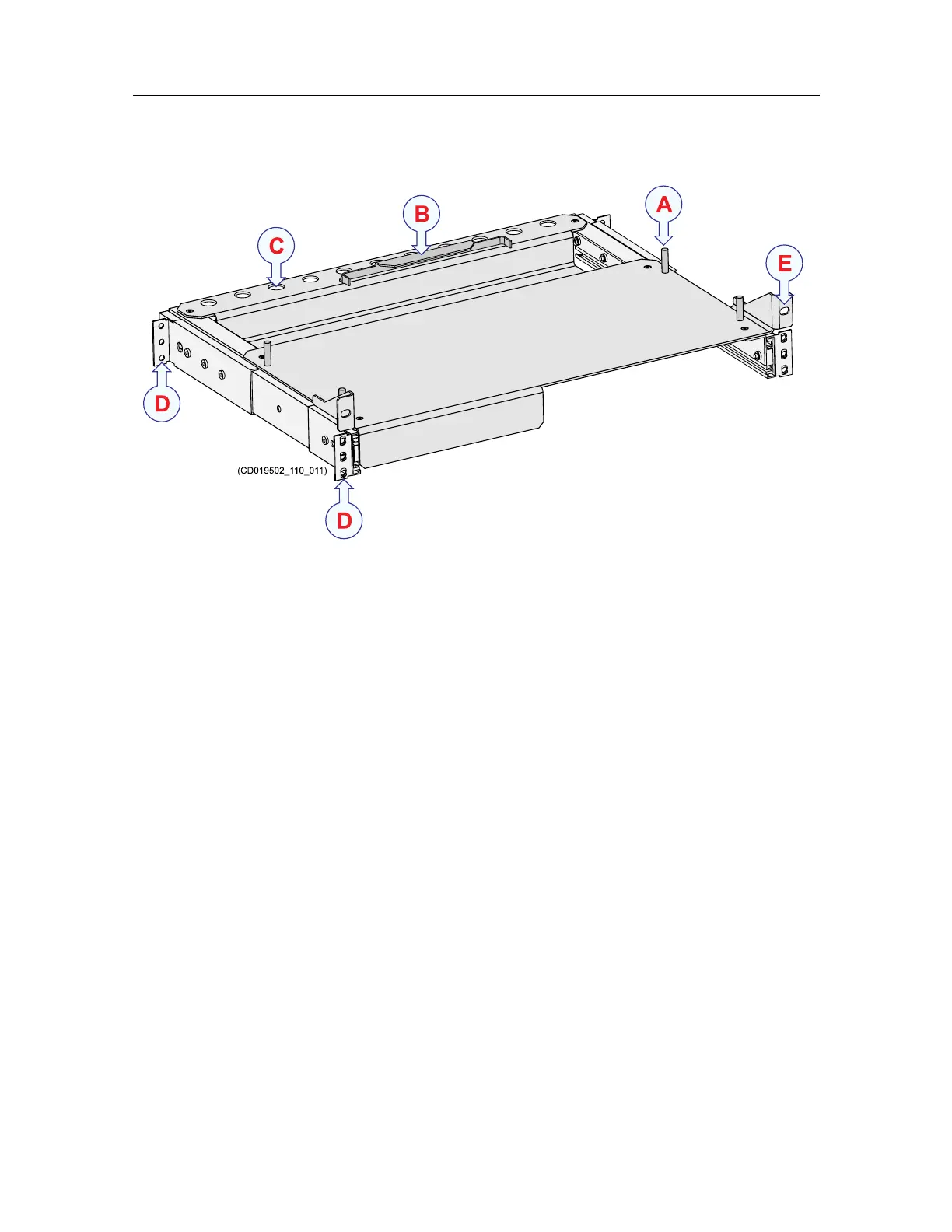

(CD019502_1 10_01 1)

AMountingboltsfortheWideBandTransceiver(WBT)

BMountingbracketforthepowersupply

CHolesforfasteningandsecuringthecables

DMountingboltsforthedrawerassembly

EMountingboltsforthedrawer

Procedure

1Decidewhereinthecabinetyouwishtomountthedrawers.

2Mounteachdrawerusingsixboltsoneachside(D).

3Pulloutthedrawer.

4Removethepowersupplybracket(B).

5Placethepowersupplyonthedrawer,andmountthebracket(B)tosecureit.

6MounttheWideBandTransceiver(WBT)usingtheboltsprovided(A).

Furtherrequirements

Observetherelevantproceduresforcabling.

InstallingtheEK80hardwareunits
