Section04ENGINE
Subsection 01 (593, 593 HO, 593 HO SDI AND 793 HO ENGINE TYPES)

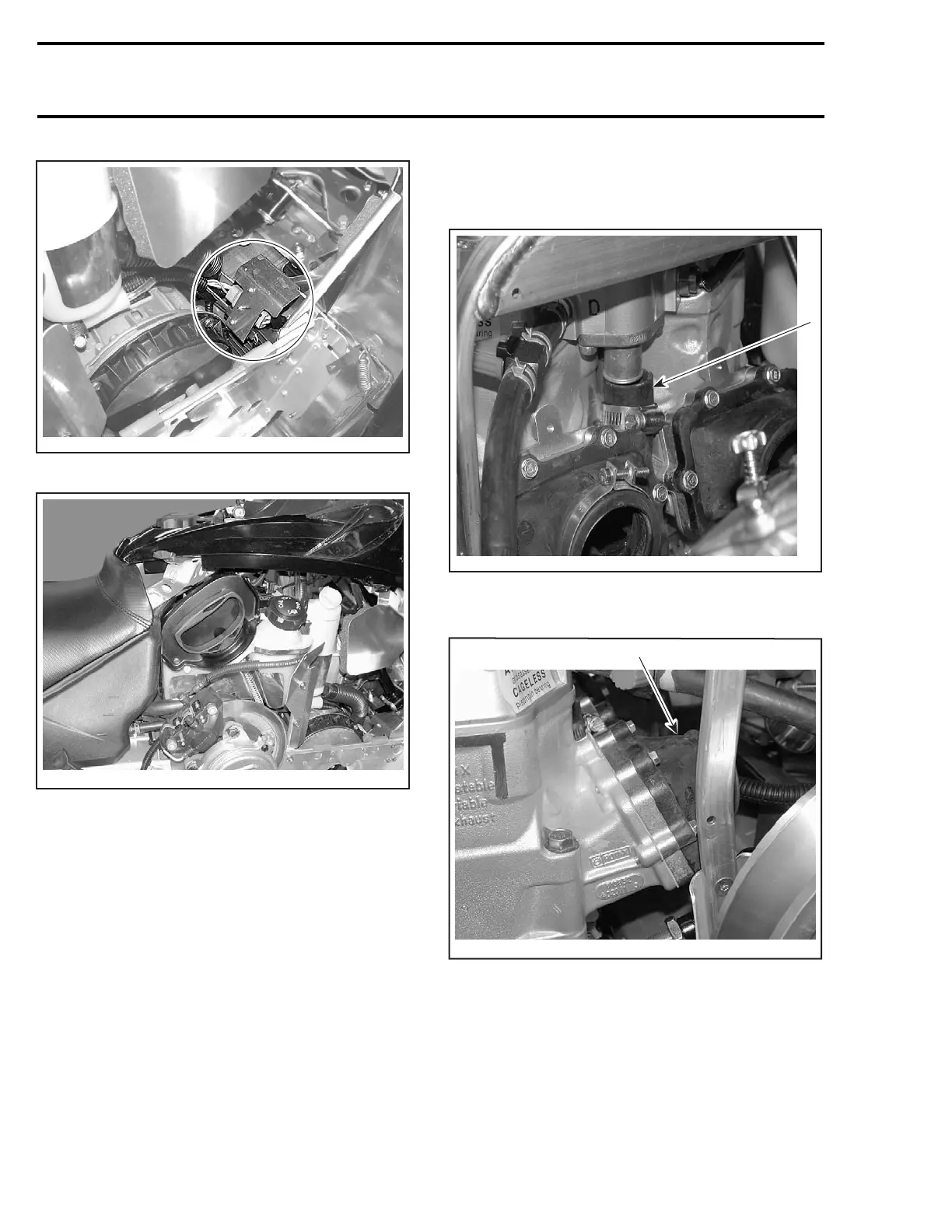

A33C29A
Remove rewind starter handle.
A33C2AA
Unplug heather carburetor hose from coolant
reservoir.
Unscrew oil injection reservoir then separate
coolant reservoir.
On left side of vehicle, do the following:
Remove:
– tool box
– belt guard
– belt drive
– drive pulley (refer to DRIVE PULLEY)
– air intake silencer (unplug ATS (Air Temperature
Sensor) connector).
NOTE: On SDI models, unplug APS (Air Pressure
Sensor) and ATS (Air Temperature Sensor) connec-
tors.
Separate carburetors or throttle body from engine.
Unplug coolant hose located between cylinder
head and radiator.
1
A33C2BA
1. Coolant hose between cylinder head and radiator
Remove reed valves with their gaskets.
1
A33C2CA
TYPICAL — 793 HO ENGINE TYPE SHOWN
1. Reed valve
Unplug magneto connector from MPEM.
Detach oil pump cable from oil pump.
82 mmr2004-Rev
