Subsection 01 (593, 593 HO, 593 HO SDI AND 793 HO ENGINE TYPES)

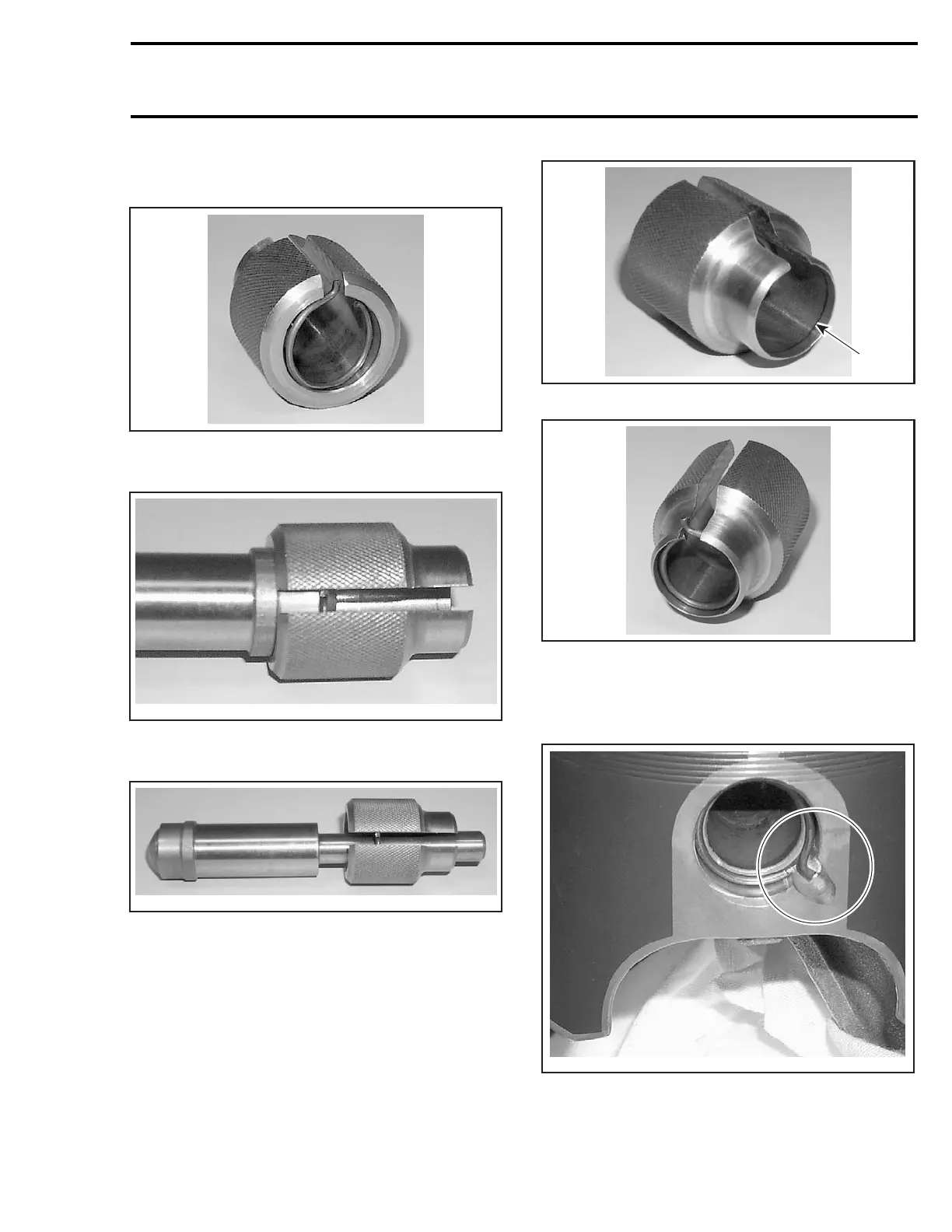

Insert circlip into support so that, when installed
in piston groove, the tab faces upward.
A32B0AA
With round end of pusher, position circlip perpen-
dicularly to the support axis.
A32B0BA
With the other end of the pusher, push circlip into
the support groove.
A32B0CA
A32B0DA
1
1. Groove
A32B0EA
CIRCLIP READY TO BE INSTALLED ON PISTON
Using a plastic hammer, tap pusher to put circlip
in place. Make sure to install new circlips with tab
toward top as per following photo.
A32C4BA
TAB TOWARD TOP
