Section04ENGINE

Subsection 01 (593, 593 HO, 593 HO SDI AND 793 HO ENGINE TYPES)

A32CAVA

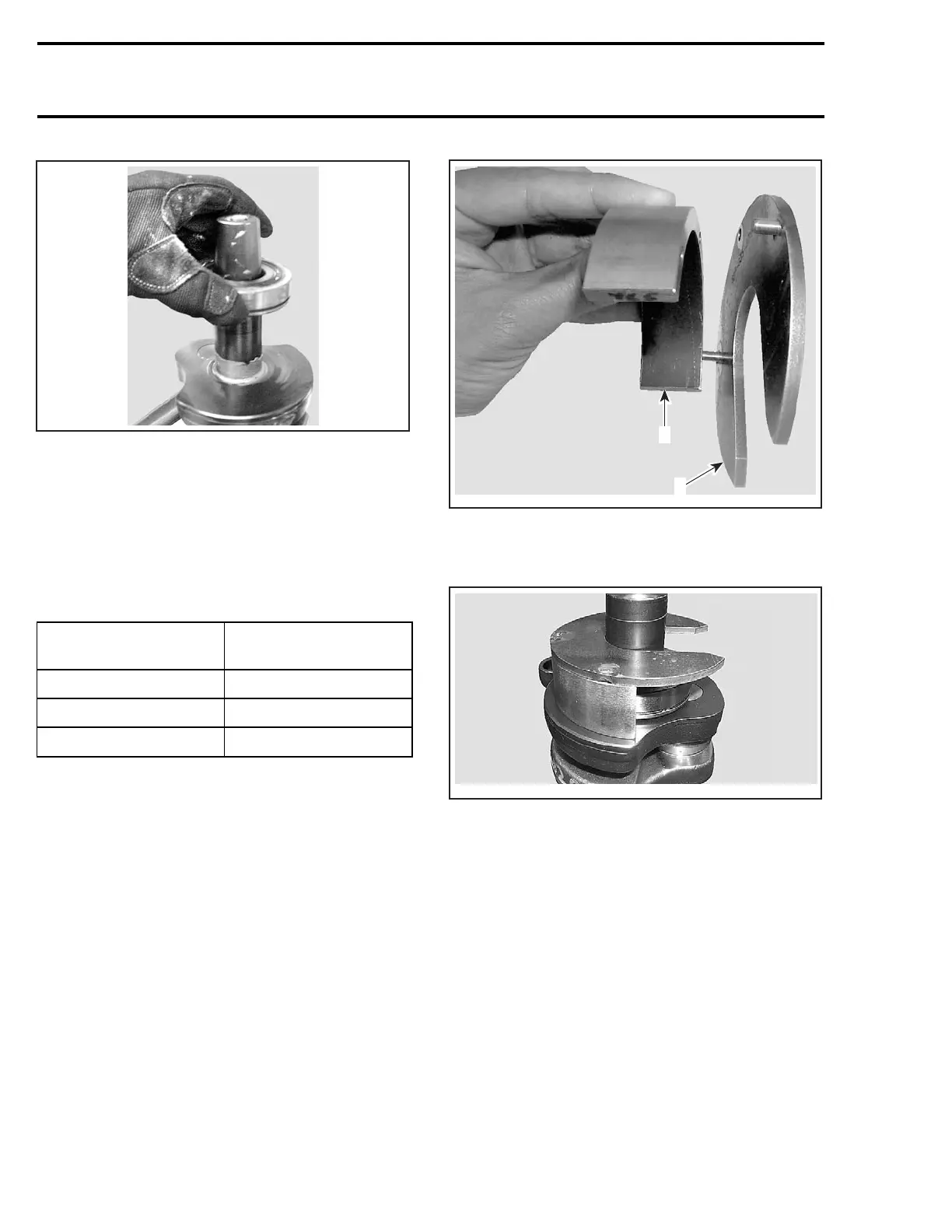

NOTE: Heated bearings will slide onto the crank-

shaft. If required, push with a steel tube on the

inner ring of the bearing. Pay special attention

to correct positioning of the drive pins and/or

retaining discs.

Install retaining discs.

Install support plate (P/N 529 035 976) with appro-

priate distance gauge; refer to following table.

DISTANCE GAUGE

P/N

APPLICATION

529 035 966 593 engine

529 035 967

593 HO

529 035 968

593 SDI and 793 HO

A32CBCA

1. Support plate

2. Distance gauge

Install bearing locator tool.

A32CAWA

Slide in the heated outer PTO bearing onto the

crankshaft until it contacts the distance gauge.

Slide-in the first MAG bearing with the integrated

seal facing crankshaft. Push bearing to the bot-

tom with pusher , using a rubber hammer.

106 mmr2004-Rev
