Section052–TEC ENGINE MANAGEMENT
Subsection 02 (COMPONENT INSPECTION AND ADJUSTMENT)
A33I0CA
1

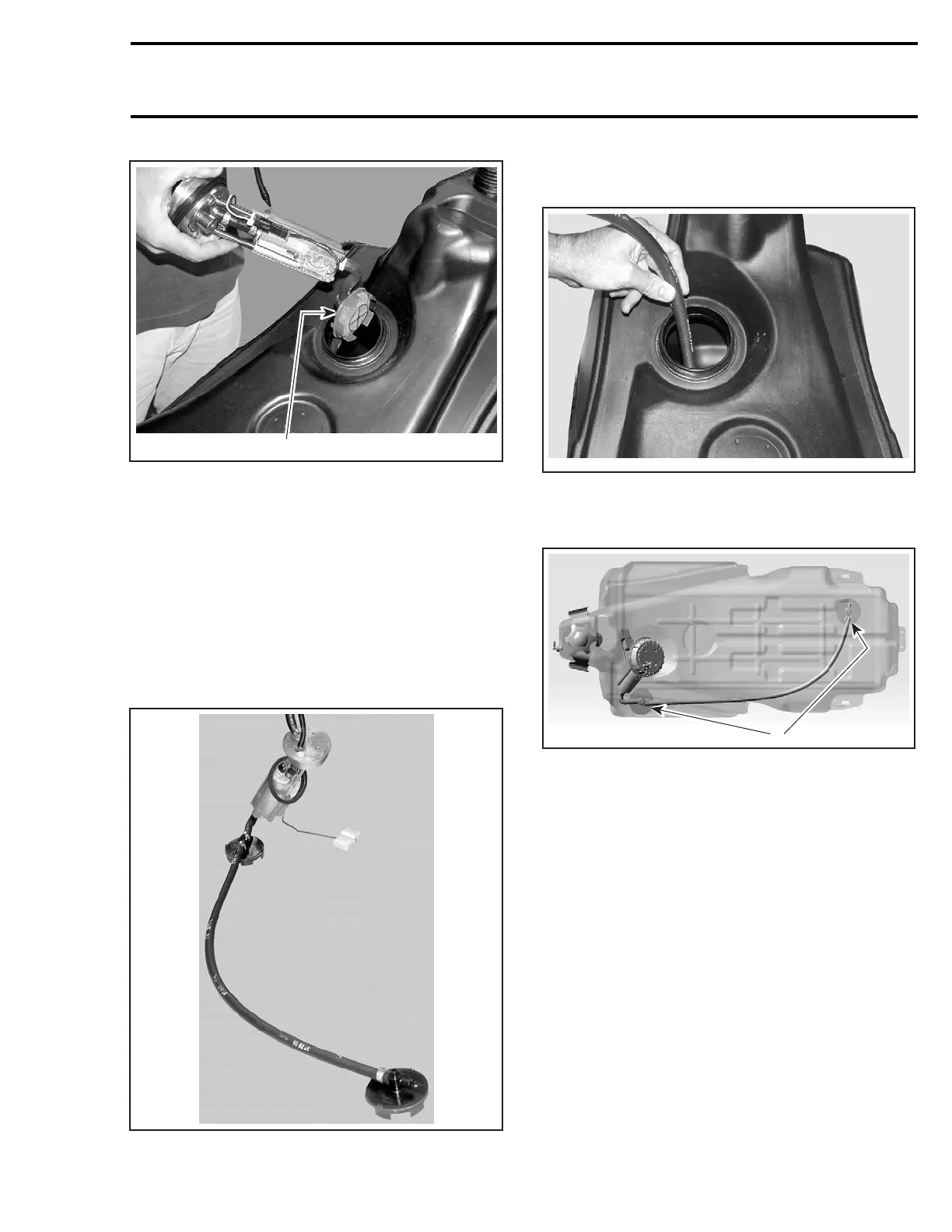

1. Fuel pickup
Installation
For installation, reverse the removal process but
pay attention to the following.
Install a new gasket.
CAUTION: Make sure that hose clamps are
tight to avoid the hoses to turn on their fitting.
Make sure that position of hoses and fuel pick-
ups in relation to fuel pump is as per following
photo.
A33I0DA
Insert rear fuel pickup through fuel pump hole at
anangletoreachtheproperposition.
A33I0EA
CAUTION: Do not twist hoses during installa-
tion. Fuel pickups must be positioned in the
fuel tank as per following illustration.
1
A33I07B
1. Fuel pickups with their strainer facing downward
Align the arrow on fuel pump module with the
one on fuel tank. Keep arrows aligned during fuel
pump module nut tightening.
Install a torque wrench perpendicularly (90°)to
fuel pump nut wrench (P/N 529 035 899). Torque
fuel pump nut to 27 - 30 N•m (20 - 22 lbf•ft).
mmr2004-Rev 183
