Section 06 TRANSMISSION
Subsection 02 (DRIVE PULLEY)

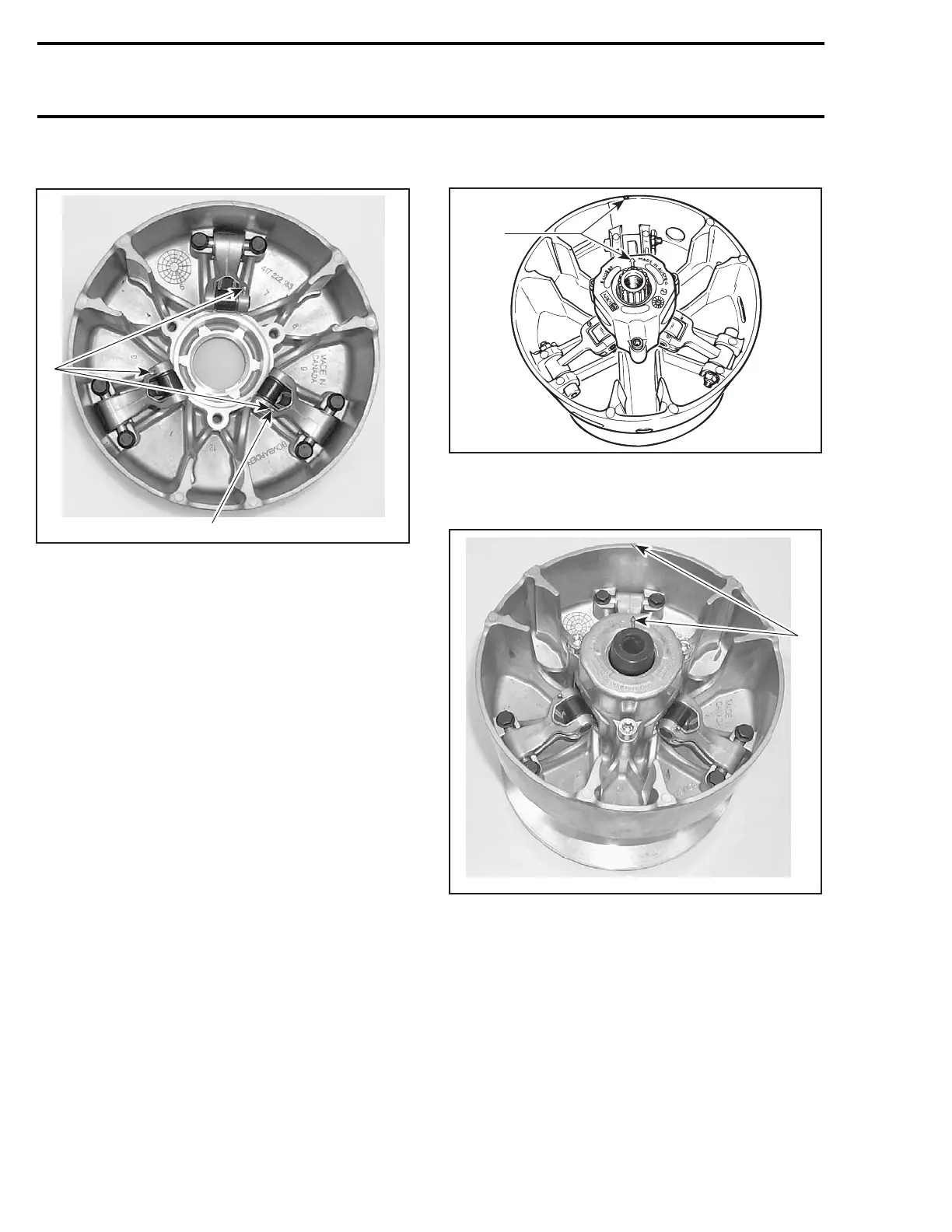

593 /HO/SDI Engine Equipped Models Only
1
2
A32D1XA
1. Head on top
2. All on the same side
All Models
Torque nuts no. 9 as per the exploded view.
CAUTION: Lever ass’y and rollers must move
easily after installation.
5,6,18,19, Fixed Half, Sliding Half,
Spring, Spring Cover and Screw
To install spring cover, use spring compressor
(P/N 529 035 524).
Assemble fixed and sliding halves. Note that fixed
halves have different taper angle. Match taper an-
gle with crankshaft.
Lift sliding half against spring cover and align
spring cover arrow with sliding half mark.
793 HO Engine Equipped Models
A16D0DA
1
TYPICAL
1. Align
593/HO/SDI Engine Equipped Models Only
1
A32D1YA
1. Align
All Models
Tighten screws to proper torque as mentioned in
exploded view.
222 mmr2004-Rev
